Crane Spare Parts Load Moment Indicator Transducer Sensor Fixed on Kobelco
Yichang Jinglian Electronic Technology Co., Ltd.- After-sales Service：Technical Support for Life
- Certification：Tx
- Condition：New
- Work Pattern：Continuous
- Function：Automatic Control, Protection, Monitoring, Measure
- Material：High-Pressure Cast Aluminum
Base Info
- Customized：Customized
- Transport Package：Cartons
- Specification：43X 28 X 22 CM
- Trademark：JL
- Origin：China
- HS Code：8431499900
- Production Capacity：1000,Month
Description
AC 220V±20% or DC 12~ 24V
- 20 ºC ~ + 60 ºC
<95% (25 ºC)
DC24V/1A or AC 220V/1A
<20W
0.1t
<5%
<3%
System composition

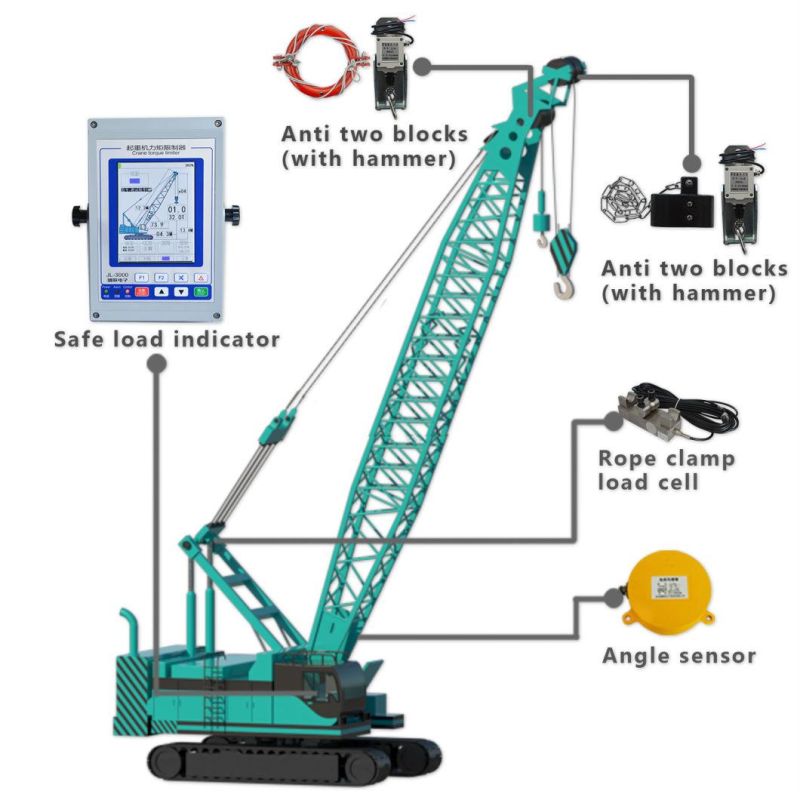

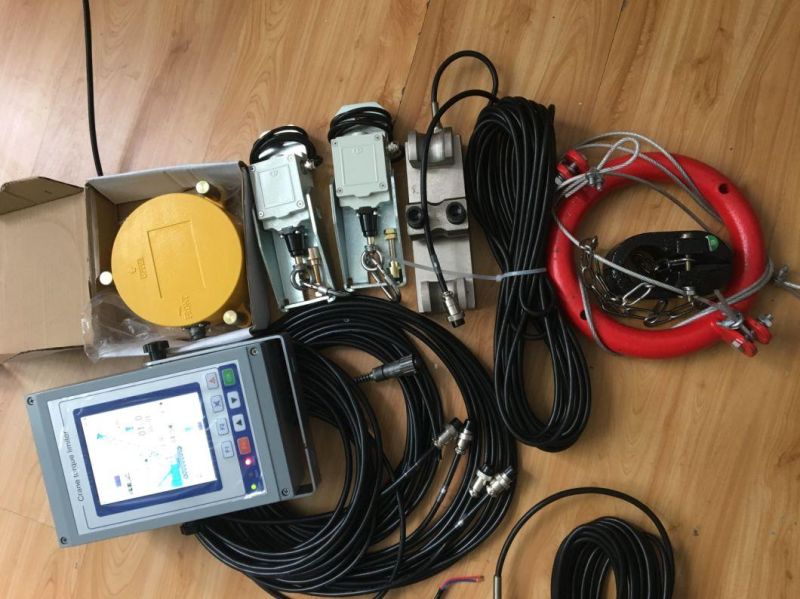

The system is mainly composed of weight sensor, length angle sensor, hook limiter, and safe load indicator.

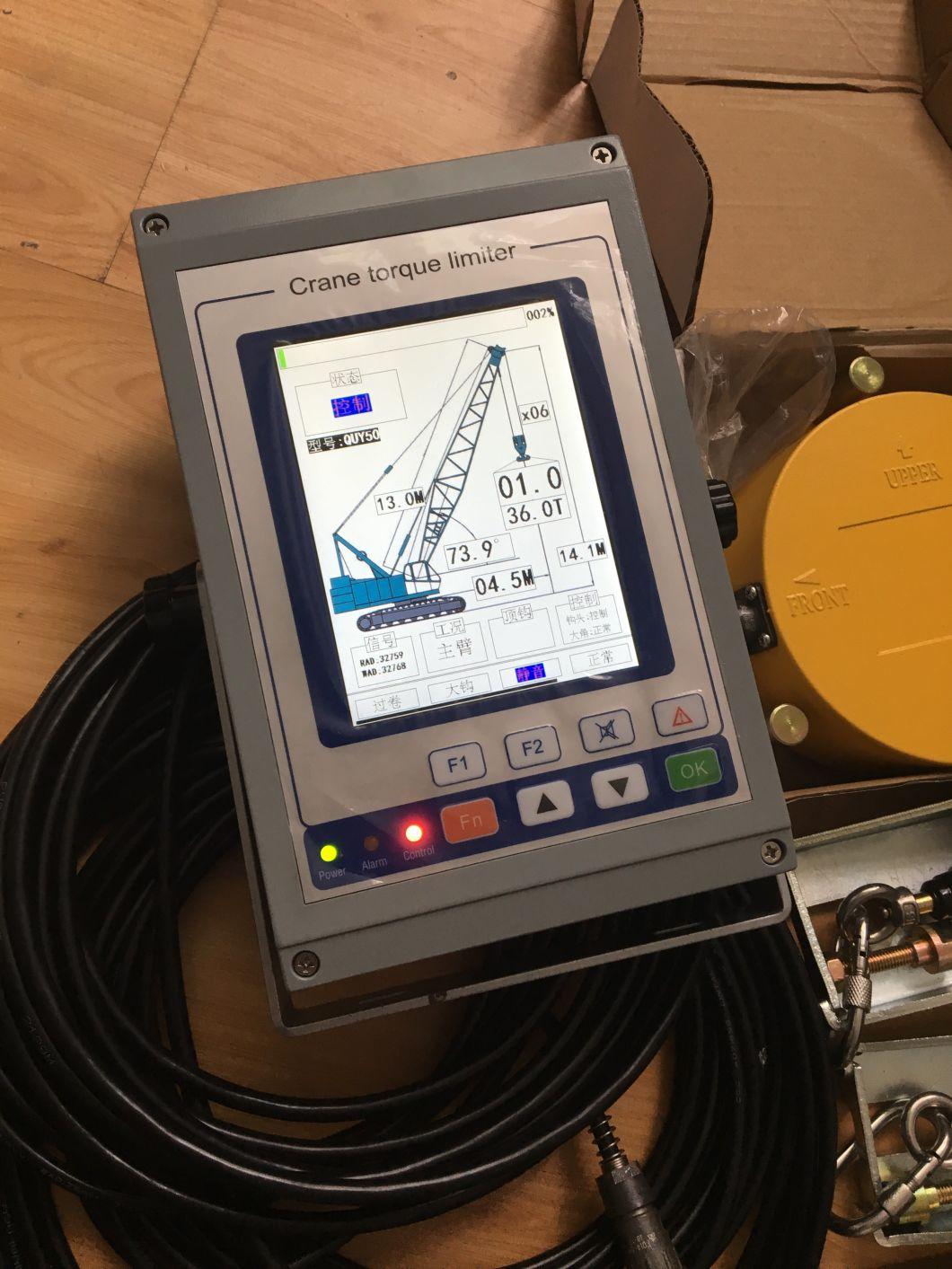

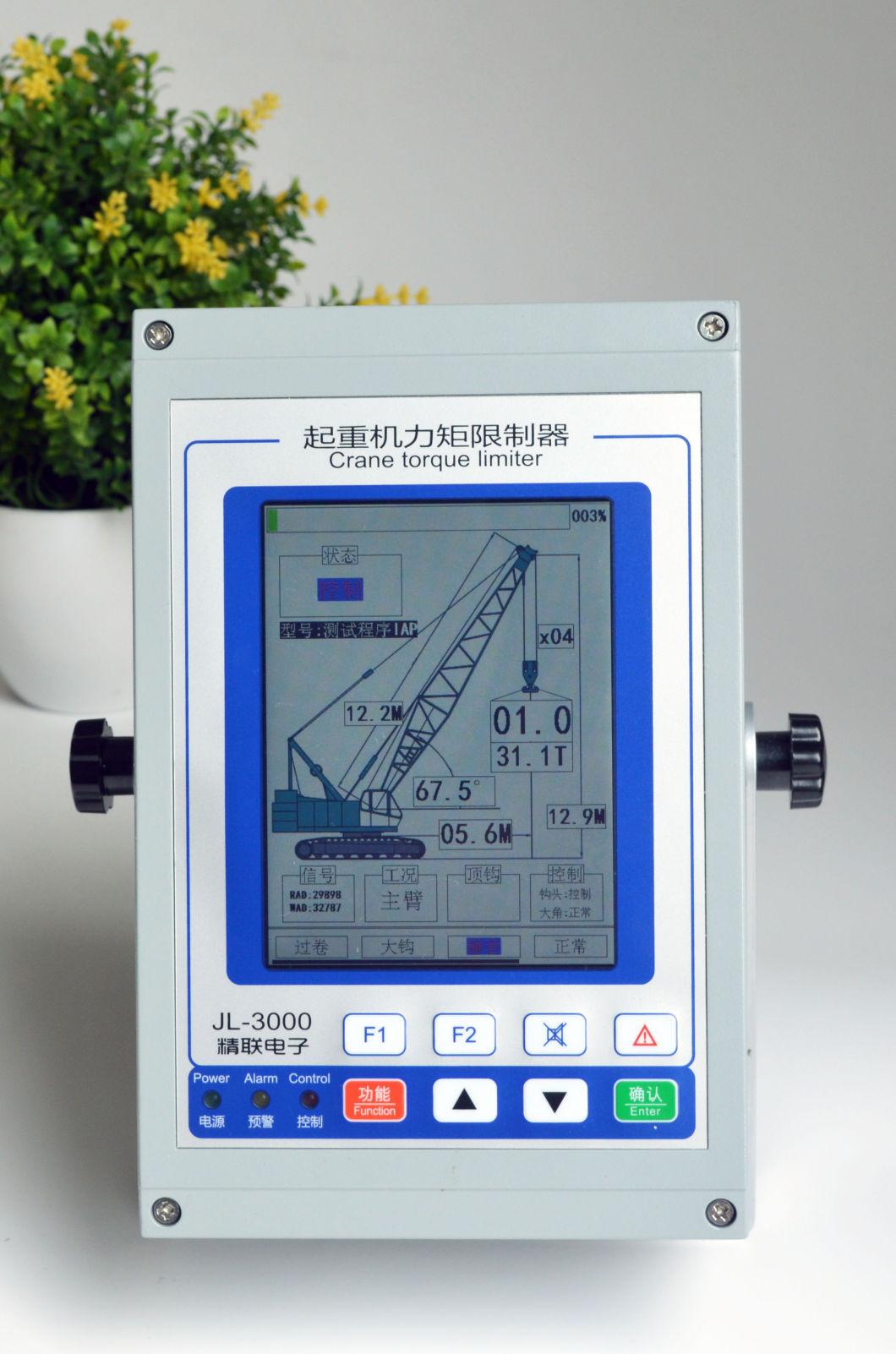

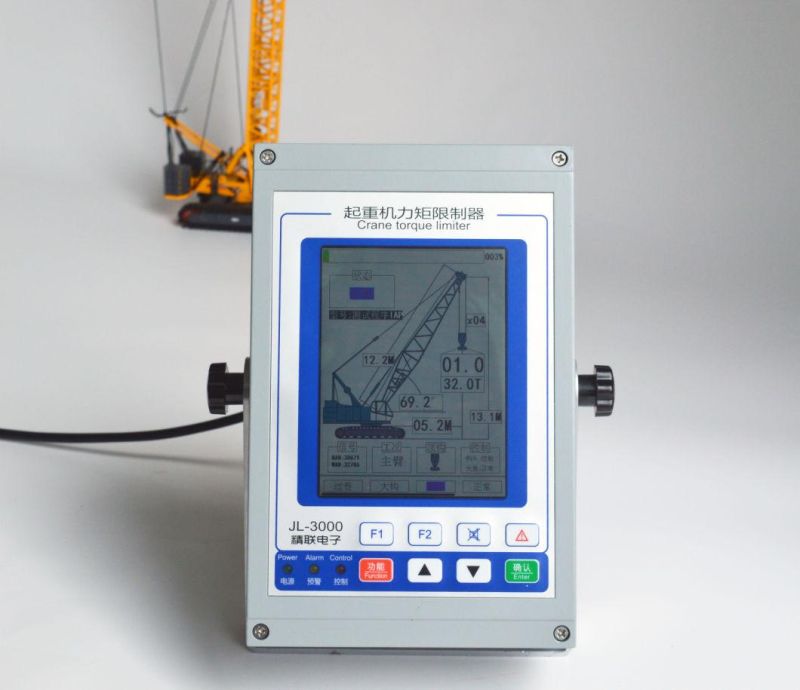

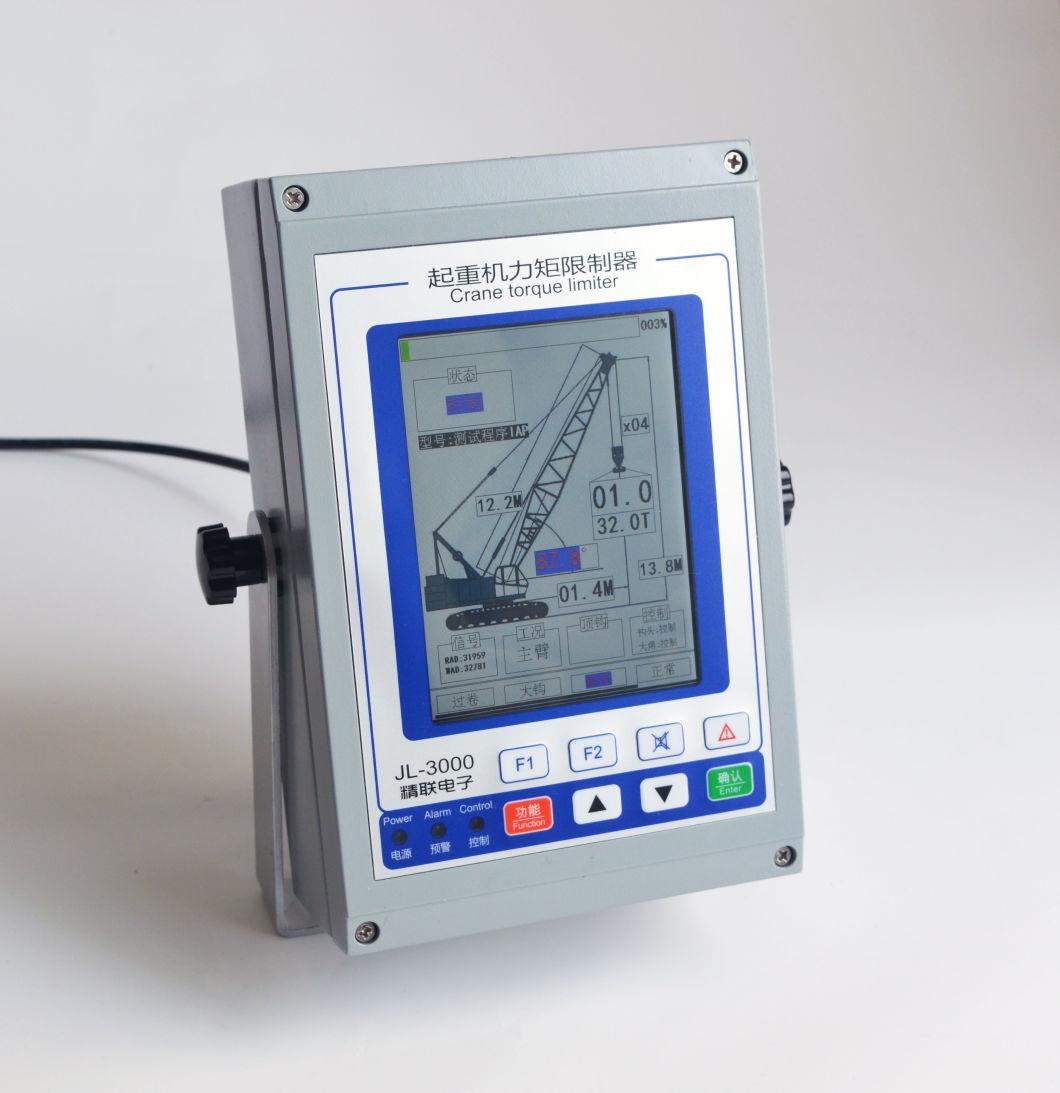

1. Chinese character LCD dot matrix display
Full LCD color display in English and Chinese. It can display all data that the user cares about, e.g.:current load, rated load, current angle, current radius, load rate, overload records, etc.
2. Analog signal amplification module
Its a special design for safe load indicator,up to 4 analog amplifications can be provided as needed.
3. CPU module
Industrial-grade new-generation enhanced micro-processing chip, Faster than the same processor , Strong anti-interference ability and high efficiency.
4. Power Module
Wide voltage switching power supply module, good output waveform, Strong load capacity, With overload, over current protection, and self-recovery function.
Shipment packing & Details
Export packing: carton
Carton size:43 x 28 x 22cm carton quantity: 1 carton
Gross weight: 6 kgPort: Shanghai china; Hongkong China
Delivery days: 3-7 days
