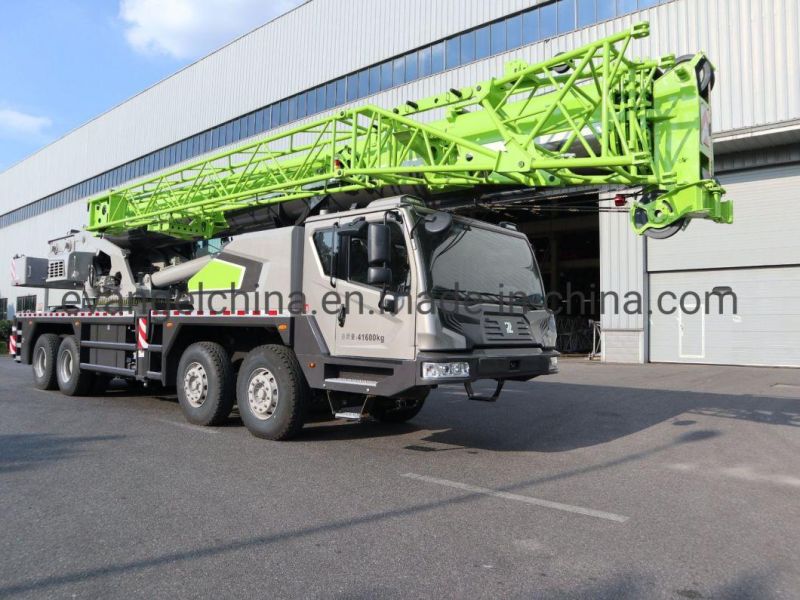

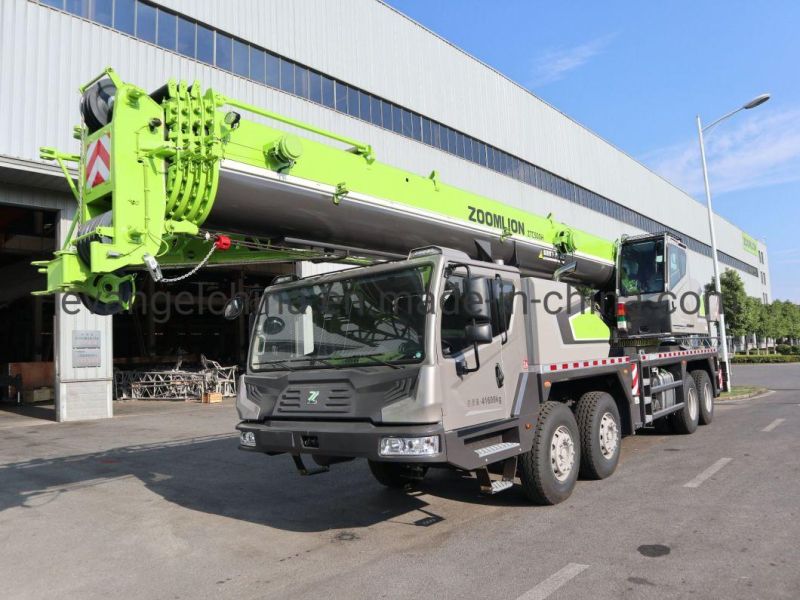

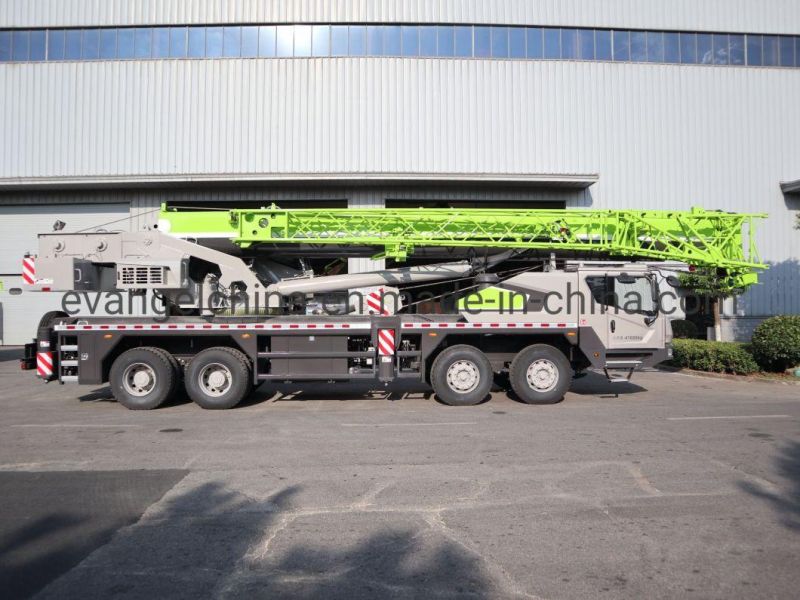

• Model NO.：ZTC500H552
• Type：Straight Arm
• Transport Package：Bulk Roro Container
• Specification：14100*2650*3800
• Trademark：Zoomlion
• Origin：China
• Production Capacity：1000,Year

ItemSpecificationRemarkPerformanceMax. loading capacity50000kg Max. lifting moment-Base boom   1813 kN.m Max. lifting moment-Full-extend boom 1082 kN.m Max. lifting height of Length-Base boom12.6m Max. lifting height Length-Full-extend boom45.5m Max. lifting height Length-Full-extend boom+jib61mSpeedMax. single rope lifting speed of main winch135 m/min Max. single rope lifting speed of auxiliary winch.125 m/min Full extend/retract time of boom50s Full raise/lower time of boom110s Swing speed0~2.2 r/min DrivingMax. elevation2000m Max. driving speed80 km/h Max. gradeability44% Min. turning radius≤24m Min. ground clearance280mm Fuel consumption per 100km41L WeightOverall weight41600kg Curb weight  41405kg Front axle load        15600kg Rear axle load    26000kg DimensionOverall dimension14100×2650×3800 Outrigger span (Longitudinal)  7.4m Outrigger span ( Transversal)6.05m Tail swing radius of superstructure3890mm Length of Full-extend boom      11.6~45 Approach angle          -2~80  ° Length of Jib               9.5 ,16.0m Angle of jib        0 ,15,30  °
