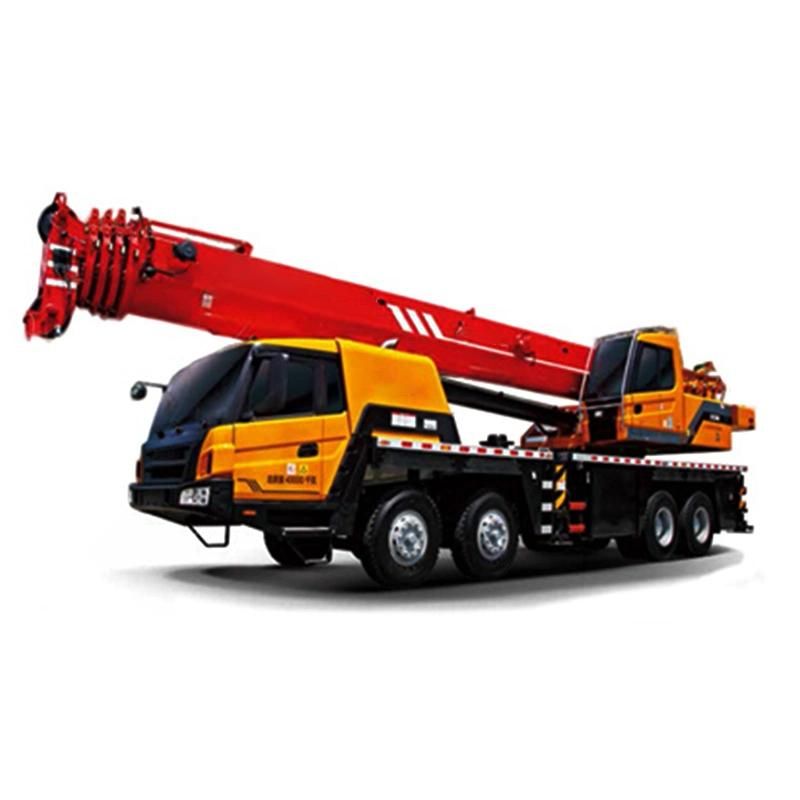

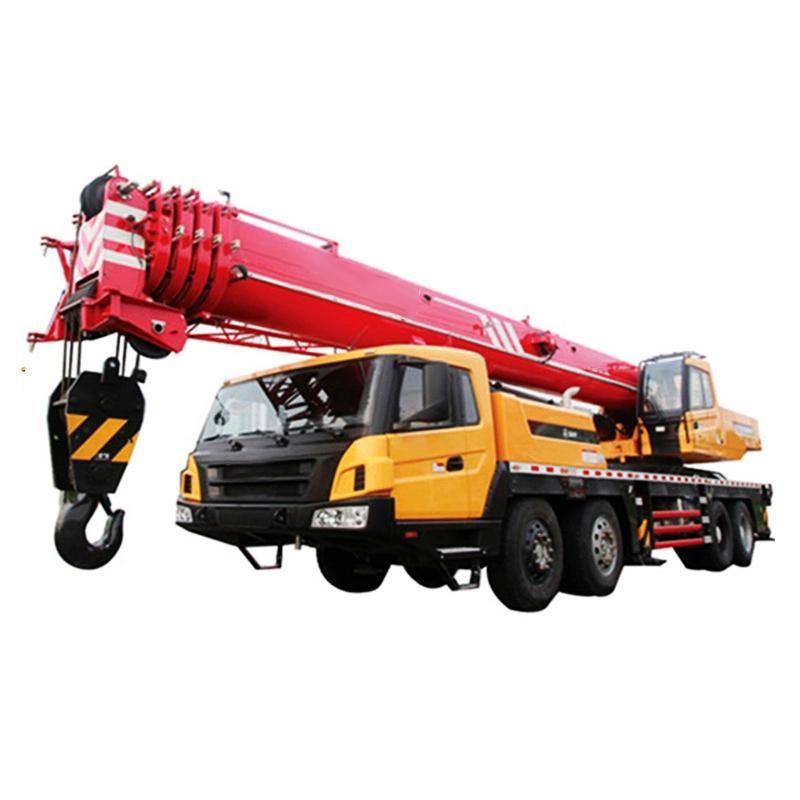

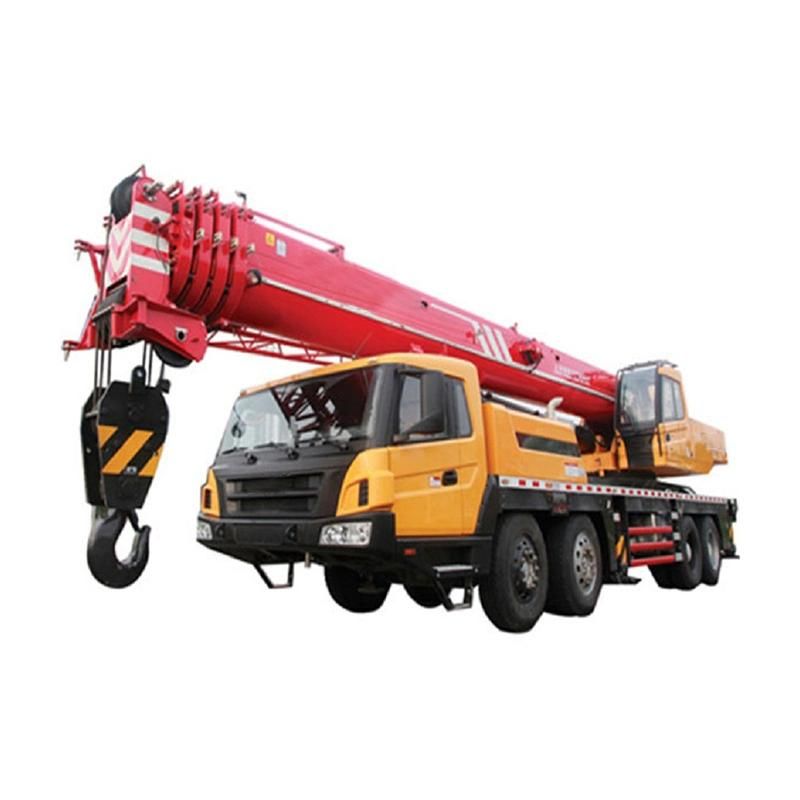

• Model NO.：Stc800
• Shaft Number：4
• Crane Jib：Five-Arm
• Type：Folding
• Transport Package：Nude, Spare Parts and Tools Into Standard Cases
• Specification：14100*2750*3850mm
• Trademark：ORIEMAC
• Origin：Hunan, China
• HS Code：87051091
• Production Capacity：5000PCS,Year

CapacityMax. lifting capacity80tDimensionsOverall length14100 mmOverall width2750 mmOverall height3850 mmAxles4Axle distance-1,21520 mmAxle distance-2,34400 mmAxle distance-3,41350 mmWeightOverall weight46000 kgFront axle load22000 KgRear axle load26000 kgEngineModelCumminsRated power275 kW/2100 rpmRated torque1550 N.m/1200 rpmEmission standardEuro IIITravelingMax. traveling speed80 km/hMin.turning radius12 mMin.turning radius of boom head15.6 mDrive train8 × 4Min. ground clearance230 mmApproach angle20°Departure angle12°Max. gradeability37%Fuel consumption per 100km≤ 55 LMain PerformanceTemperature range- 30 ºC - +60 ºCMin.lifting radius3 mTail swing radius of superstructure4.116mBoom section5Boom shapeU-shapedMax. lifting moment-Base boom2560.2 kN·mMax. lifting moment-Full-extend boom1254.4 kN·mMax. lifting moment-Full-extend boom+jib414.9 kN·mLength-Base boom11.8 mLength-Full-extend boom45 mLength-Full-extend boom+jib61 mOutrigger span(Longitudinal/Transversal)6.1 × 7.6 mJib offset0 ° 15 ° 30 °Working SpeedMax. single rope lifting speed of main winch(no load)130 m/minMax. single rope lifting speed of auxiliary winch(no load)130 m/minFull extend/retract time of boom120 / 130 sFull raise/lower time of boom80 / 80 sSwing speed2.0 r/minAirconditionHVAC in up cabCoolingHVAC in low cabCooling and HeatingProduct Pictures
