Crane

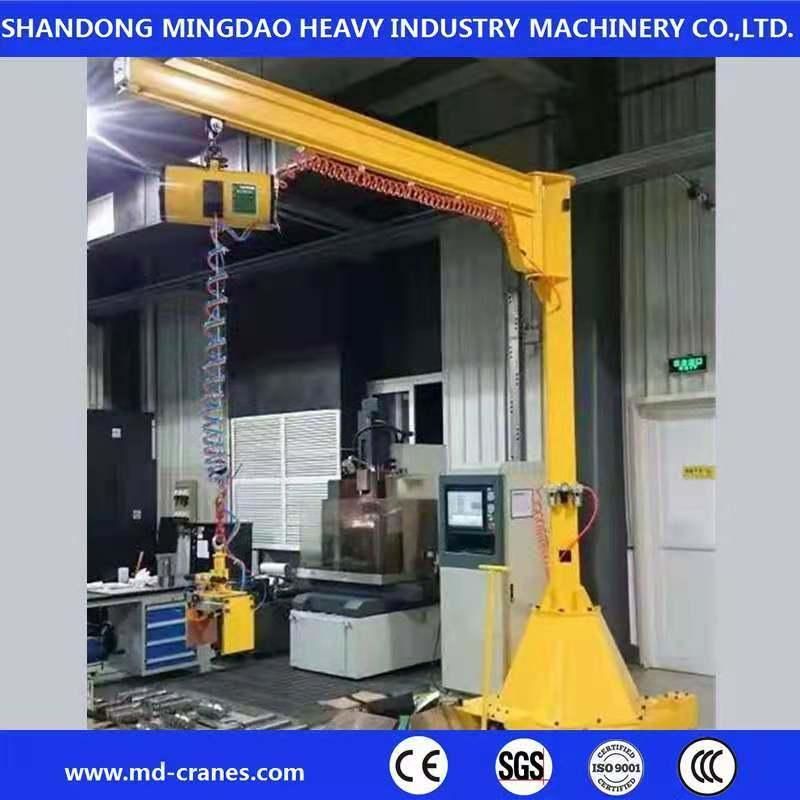

China Factory Straightly Provide Column Cantilever Crane with Pneumatic Hoist Air Hoist

Shandong Mingdao Heavy Industry Machinery Co., Ltd.
  • After-sales Service:Engineers Available to Service Machinery
  • Warranty:2 Years
  • Certification:CE, ISO9001, SGS
  • Condition:New
  • Operation Form:Pendant Controller +Remote Controller
  • Maximum Lifting Height:15-20m

Base Info

  • Model NO.:BZD
  • Maximum Lifting Weight:<20t
  • Corlor:Custumized
  • Rated Lodaing Weight:0.25t-20t on Request
  • Lifting Mechanism:Electric Pneumatic Hoist
  • Arm Length:on Request
  • Electrics:Schneider , Siemens Famous Brand
  • Drawings:Yes
  • Work Duty:A3-A5
  • Using Condition:Indoor , Outdoor
  • Mounted Type:Floor , Foundation or Sleeve Mounted
  • Power Source:220V,380V,415V on Request
  • Rated Lifting Moment:60kn.M
  • Lifting Speed:on Request
  • Crane Type:Travelling Jib Crane
  • Transport Package:by Container or Bulk Ship
  • Specification:Material Q235B,Q345B
  • Trademark:Mingdao
  • Origin:China
  • HS Code:8426300000
  • Production Capacity:1000 Sets,Year

Description

Basic Info.

Model NO. BZD Maximum Lifting Weight <20t Corlor Custumized Rated Lodaing Weight 0.25t-20t on Request Lifting Mechanism Electric Pneumatic Hoist Arm Length on Request Electrics Schneider / Siemens Famous Brand Drawings Yes Work Duty A3-A5 Using Condition Indoor / Outdoor Mounted Type Floor / Foundation or Sleeve Mounted Power Source 220V/380V/415V on Request Rated Lifting Moment 60kn.M Lifting Speed on Request Crane Type Travelling Jib Crane Transport Package by Container or Bulk Ship Specification Material Q235B/Q345B Trademark Mingdao Origin China HS Code 8426300000 Production Capacity 1000 Sets/Year

Product Description

China Factory Straightly Provide Column Cantilever Crane with Pneumatic Hoist Air Hoist
Features of floor mounted jib crane:
1.it is used for lifting 0.5t~5t stuff;
2.It has beautiful box-typed welded main girders. Computer optimized design for main girders with good performance and light weight;
3.Compact structure, light weight and high lifting height;
4.It's widely used in workshops, metallurgy, warehouses and assembly shops etc.

Mechanism of floor mounted jib crane:
1. box-type shaped by wielding;
2. High quality carbon steel Q235B and Q345B;
3. the girder connected by high strength screws;
4. Welding seams are tested by X-ray and ultrasound;
5. Forged wheels;
6. Compact structure, small volume and light weight trolley;
7. Lifting mechanism is open type winch trolley;
8. Compact reducer motor drive, step less control, hardened gears and safety disc brake;
9. Good operation performance, step less speed regulating and running smoothly;
10. Main girders Shot blasting sa2.5 after welding to release internal stresses;
11. Painting high quality epoxy zinc-rich primer, and the thickness of oil film is 140μ

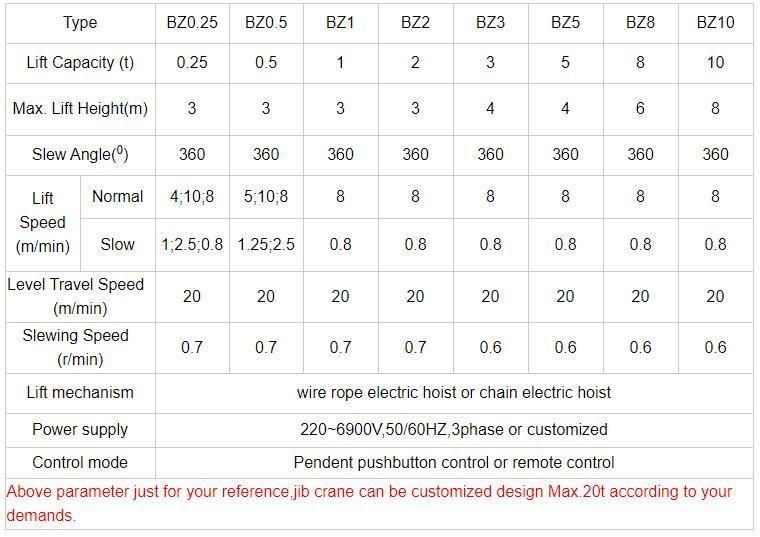

Technical datasheet:
China Factory Straightly Provide Column Cantilever Crane with Pneumatic Hoist Air Hoist
Features:

1. Rated Lifting capacity: 0.5~20t
2. Arm length: 2~10m (Can be designed by customers)
3.Two types : BZ model(light medium) and BZD model(heavy duty medium)
4. Working Temperature: -25~+40°C
5. Lifting mechanism: Electric hoists or manual hoist
6. Slewing Mechanism: Electric motor or Manual control
7. Main Material: Q235B Mn Steel
8. Slewing angle are 90, 180, 270, 360 degree is optional


Package &Delivery:
China Factory Straightly Provide Column Cantilever Crane with Pneumatic Hoist Air Hoist

China Factory Straightly Provide Column Cantilever Crane with Pneumatic Hoist Air Hoist
About our factory:
 Shandong Mingdao Heavy Industry Machinery Co., Ltd.Is located in Taian City,Shandong Province, China. We are mainly engaged in the design, manufacture,installation and maintenance of single girder cranes(LD Models), Double Girder Cranes (LH,QD etc),gantry cranes(MH,MDG..),Jib cranes(BZ,QZ,MZ etc), variable frequency cranesExplosion-proof series cranes(LB,QB etc), Cranes with grab bucket,Low headroom monorail HoistElectric Winches, scrapers and CD1 MD1 HC Electric HoistHand Chain Hoist etc...

In the past 10 years, we are aiming at China domestic market and become a leading manufacturer in China. Also,we have exported our products to many countries such as Vietnam, Philippines, Sri Lanka, Bangladesh, France, Dubai, Kazakhstan, Russia, Tanzania,Peru , New Zealand ,etc countries. We welcome you will cooperation with us in near future.

China Factory Straightly Provide Column Cantilever Crane with Pneumatic Hoist Air HoistCertificates:
China Factory Straightly Provide Column Cantilever Crane with Pneumatic Hoist Air Hoist
