XCMG Official 55 Ton High Quality Truck Crane Xct55L5
Xuzhou Construction Machinery Group Import & Export Co., Ltd.- Certification:GS, CE, ISO9001:2000
- Condition:New
- Maximum Lifting Height:>40m
- Maximum Lifting Weight:55ton
- Type:Truck Crane
- Engine Rated Power:268,1900kw,(R,Min)
Base Info
- Model NO.:XCT55L5
- Max. Travel Speed:90km,H
- Min. Turning Diameter:24m
- Min. Ground Clearance:303.5mm
- Transport Package:Comply with Export Packaging Requirment
- Specification:13980*2550*3610mm
- Trademark:XCMG
- Origin:Xuzhou, Jiangsu, China
- HS Code:87059091
- Production Capacity:10000,Year
Description
DimensionUnit XCT55L5 Overall length mm 13980 Overall width mm 2550 Overall height mm 3610 Total weight in travel kg 44000 Engine model MC11.36-40/SC10E340Q4 Engine rated power kW/(r/min) 268/1900 251/1900 Engine rated torque N.m/(r/min) 1800/(1000~1400) 1550/1300 Max. travel speed km/h 90 Min. turning diameter m 24 Min. ground clearance mm 303.5 Departure angle ° 13 Max. grade ability % 45 Fuel consumption for 100km L 35 Max. rated total lifting capacity t 55 Min. rated working radius m 3 Turning radius at turntable tail m 3.845 Max. lifting torque kN.m 2033 Base boom m 11.9 Max.main boom m 44.5 Max.main boom+jib m 60.3

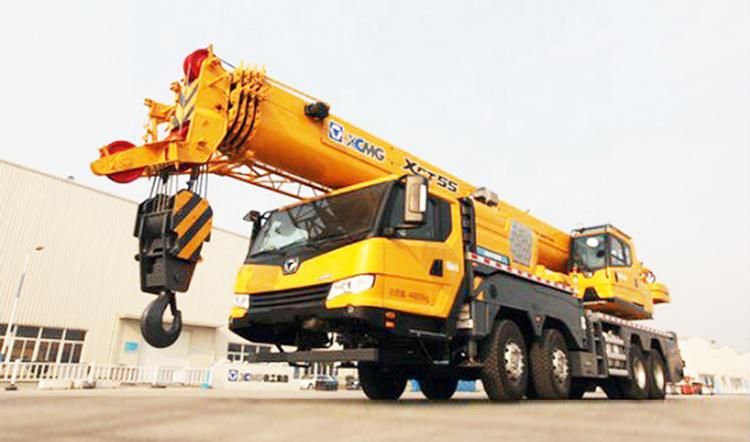

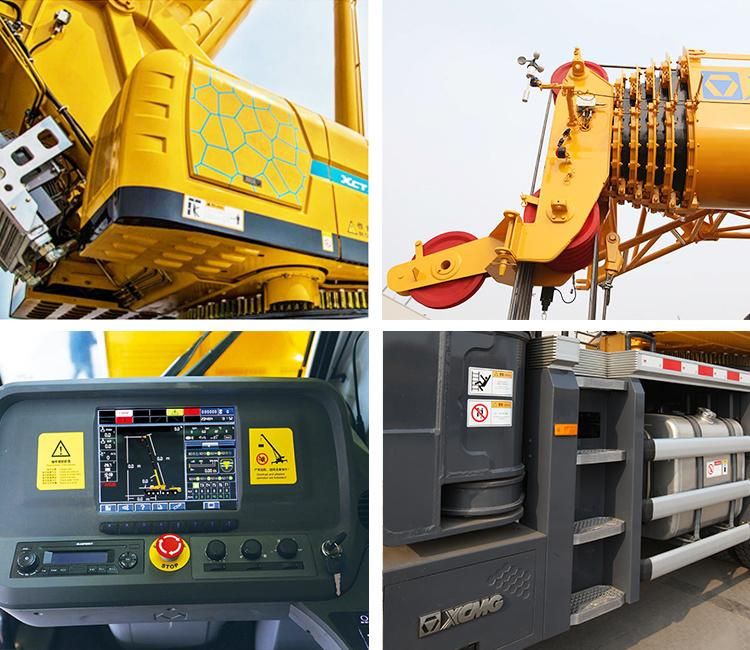

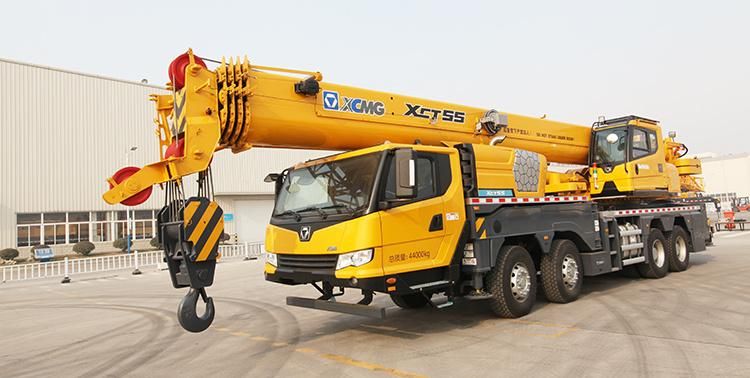

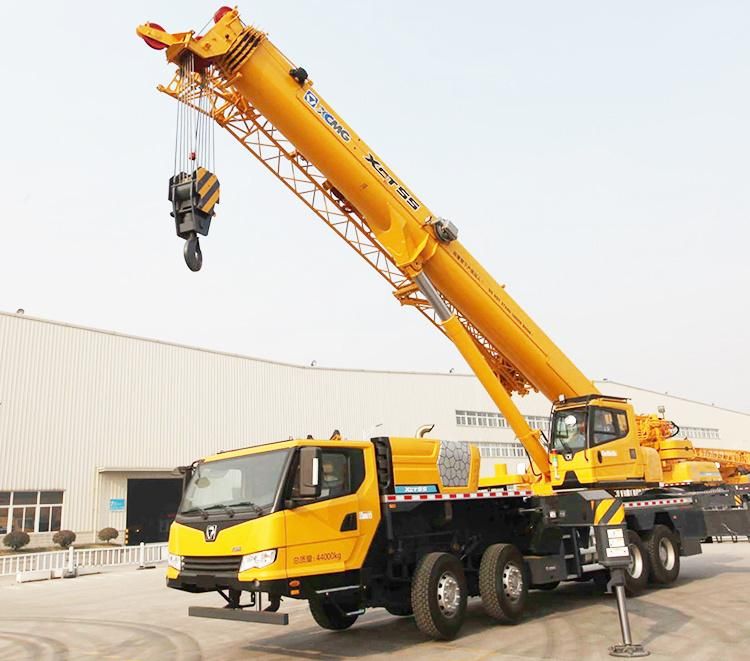

[Product Picture]
![XCMG Official 55 Ton High Quality Truck Crane Xct55L5](http://www.266158.com/uploads/image/2021/57/84/de/8e/71b82d34d16c5fe6b27836e4035ba14e.jpg)
![XCMG Official 55 Ton High Quality Truck Crane Xct55L5](http://www.266158.com/uploads/image/2021/b3/65/9f/89/9f53f932638db9576184b859592846b2.jpg)
![XCMG Official 55 Ton High Quality Truck Crane Xct55L5](http://www.266158.com/uploads/image/2021/ed/3c/34/7a/4ceb180dac78978b46b62f219429f7b6.jpg)
![XCMG Official 55 Ton High Quality Truck Crane Xct55L5](http://www.266158.com/uploads/image/2021/d4/0b/61/a0/e17d38de45db2f289cf496e7ca465354.jpg)
[Company Information]
![XCMG Official 55 Ton High Quality Truck Crane Xct55L5](http://www.266158.com/uploads/image/2021/49/80/19/31/5e6fd3de72dcc6095fa5e9c27d82d181.jpg)
![XCMG Official 55 Ton High Quality Truck Crane Xct55L5](http://www.266158.com/uploads/image/2021/2c/79/70/ac/bec440ee11294669bb4e136e4bcbaae4.jpg)
![XCMG Official 55 Ton High Quality Truck Crane Xct55L5](http://www.266158.com/uploads/image/2021/5b/51/dc/3b/21090b5dc8b8e4fe34e87b0f78fafb7c.jpg)
![XCMG Official 55 Ton High Quality Truck Crane Xct55L5](http://www.266158.com/uploads/image/2021/19/db/61/95/09a4393cb20f420eed98f22fd8dbc4af.jpg)
![XCMG Official 55 Ton High Quality Truck Crane Xct55L5](http://www.266158.com/uploads/image/2021/44/eb/63/10/b8bfd0d5d88f9f8cc50d562ce6818335.jpg)
[FAQ]
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC.
3: What about the delivery time?
A: 7-30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
