Chinese Brand Zoomlion 320ton Zcc3200V Mobile Crawler Truck Crane
Newindu Construction Engineering (Shanghai) Co., Ltd.- After-sales Service：1 Year Warranty
- Max. Lifting Height：60+66 Meters
- Rated Loading Capacity：320 Ton
- Certification：ISO9001, CE, RoHS, BV
- Condition：New
- Warranty：1 Year Warranty
Base Info
- Model NO.：ZCC3200V
- Transport Package：Nude Packing
- Trademark：NEWINDU
- Origin：China
- Production Capacity：300pieces,Year
Description
Basic Info.
Model NO. ZCC3200V Transport Package Nude Packing Trademark NEWINDU Origin China Production Capacity 300pieces/YearProduct Description
Chinese brand zoomlion 320ton ZCC3200V mobile crawler truck craneProduct DescriptionThis high-tech product, combining mechanical and hydraulic systems as a whole, has so many advantages, such as good control
performance, excellent micro-positioning performance, great lifting capacity and super lifting height, that it is active in
various fields.The 5-axle (3 axles driven and all axles steered) full-width special purpose chassis is manufactured by Zoomlion,
providing wide vision, spacious cab and luxurious decoration.The latest electro-hydraulic proportional directional control value
with load sensing function, multiple plunger variable system pumps and open/closed variable system ensure that each executive
mechanism makes full use of its work capability.The safety devices, such as relief value, balance value, hydraulic lock and brake
value, etc. in the hydraulic system, are against rupture of pipes and hoses.
Product Parameters
| Model | ZCC3200V | ZCC3500V | ZCC5200S |
| Max. lifting capacity | 320 t | 350 t | 400 t |
| Max. lifting height | 60+66 m | 60+65 m | 60+72 m |
| Max. lifting height with superlift | 84+84 m | ||
| Max. lifting moment | 1935 t.m | 2366 t.m | 2360 t.m |
| Max. lifting moment with superlift | 5200 t.m | ||
| Length of main boom | 24~93 m Heavy Duty | 24~96 m Heavy Duty | 24~84 m Heavy Duty |
| 67.5~106.5 m Light Duty | 74~116 m Light Duty | 102 m / 126 m Light Duty with Superlift | |
| Max. lifting weight of light duty boom | 122 t | 110 t | 150 t / 156 t with Superlift |
| Max. travel speed | 1.0 km/h | 1.0 km/h | 1.0 km/h |
| Engine power | 247/1900 kW/r/min | 318/1900 kW/r/min | 318/1900 kW/r/min |
| Max. hoist rope speed | 120 m/min (main winch) | 140 m/min (main winch) | 140 m/min (main winch) |
| Max. transport single unit weight | 36.6 t | 40.7 t | 40.7 t |
| Max. transport single unit dimension | 13.7*3.0*3.22 m | 15.3*3.0*3.2 m | 15.3*3.0*3.2 m |

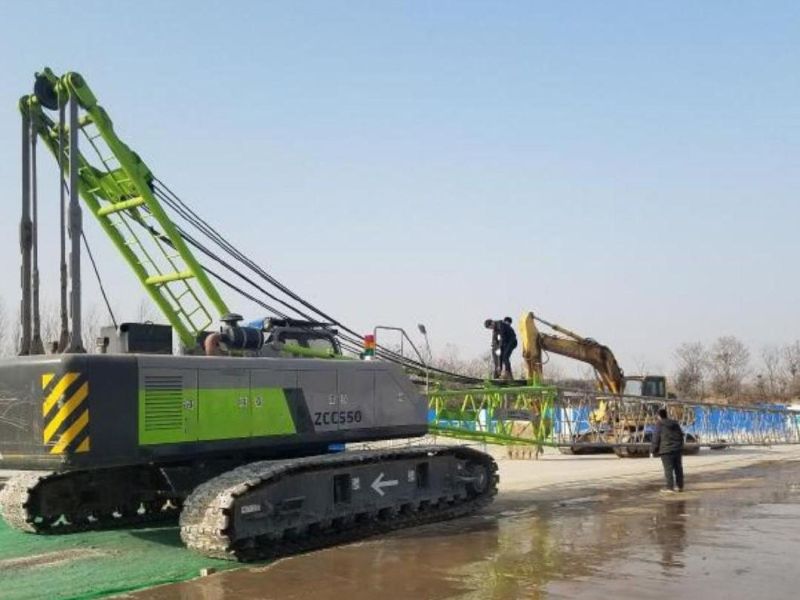

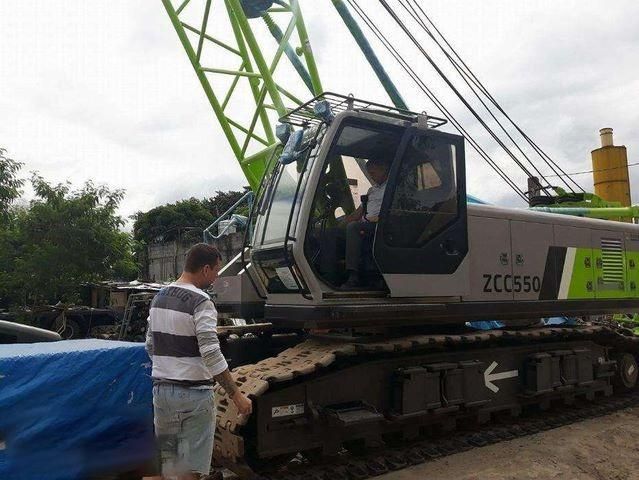

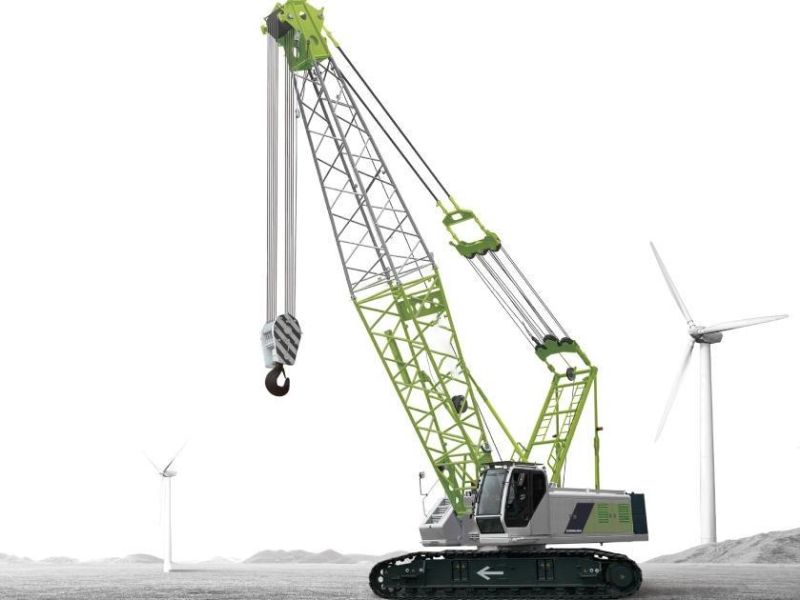

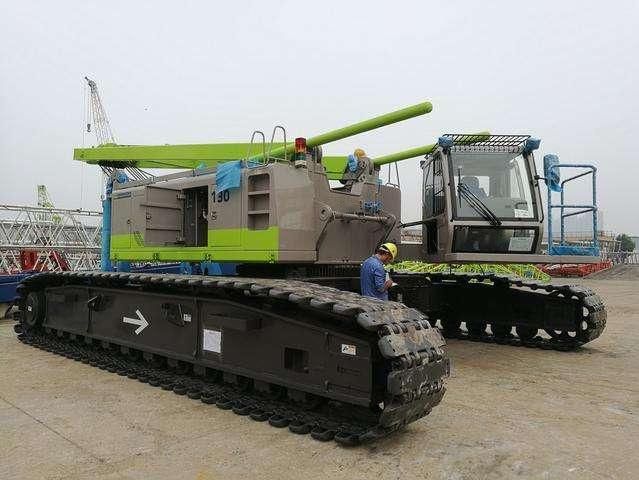

Product image
