• Model NO.：ZTC550V532
• Shaft Number：4
• Crane Jib：Five-Arm
• Type：Folding
• Max. Lifting Height of Main Boom：44m
• Max. Lifting Height of Jib：60m
• Slewing Speed：0-2.2r,Min
• Max. Driving Speed：74km,H
• Max. Gradeability：40%
• Min. Ground Clearance：260mm
• Specification：13700*2800*3800 mm
• Trademark：Zoomlion
• Origin：China
• HS Code：8501109190
• Production Capacity：200

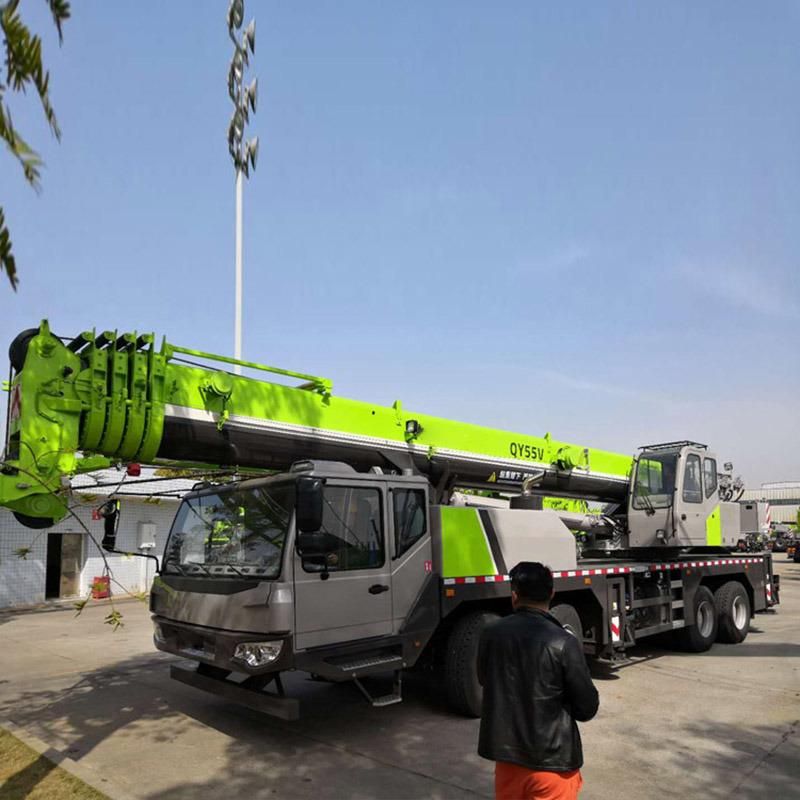

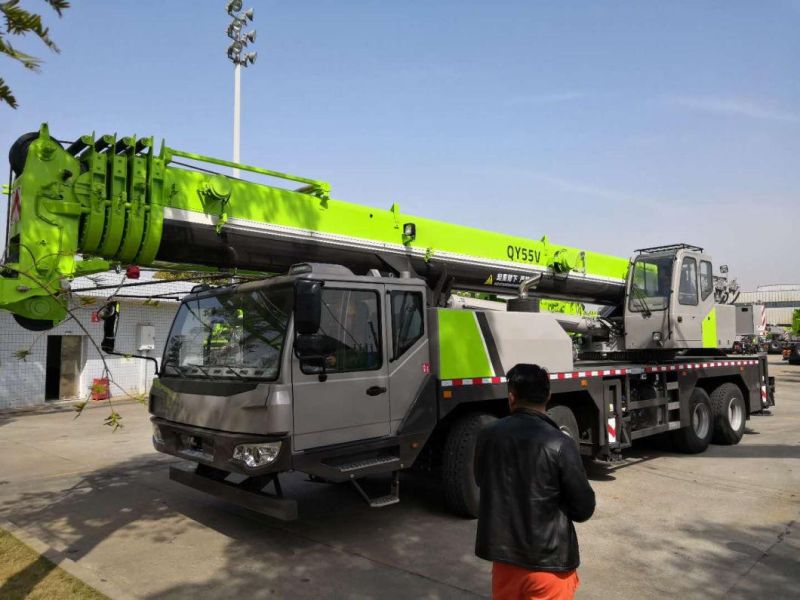

ItemUnitValueRemarksWorking performanceMax. rated lifting capacitykg55000Max. load moment of basic boomkN.m2009Max. load moment of main boom(fully extended)kN.m1050Max. load moment of basic boomm12.6Max. lifting height of main boomm43.6Max. lifting height of jibm58Working speeds    Max. hoist rope speed(Main winch)m/min120Max. hoist rope speed(Auxiliary winch)m/min120Boom demrricking up times50Boom demrricking up times95Slewing  speedr/min0-2.2Driving parametersMax. height above sea levelm2000Max. driving  speedkm/h76Max. gradeability%40Min. turning diameterm≤24Min.  ground clearancemm260Oil consumption per hundred kilometersL43MassDeadweight in driving conditionkg42000Complete vehicle kerb masskg41870Front axle loadkg16000Rear axle loadkg26000DimensionsOverall dimensions(L×W×H)mm13700×2800×3800Outrigger spread(L)m5.92Outrigger spread(W)mFully extended:7.1,intermediately extended:4.8Tail slewing radiusmm3900Main boom lengthm11.4 - 43.0Boom angle°-2 - 80jib lengthm9.2,14.6Offset°5,25,45Product Show
