• Model NO.：XX-P02
• Type：Folding
• Color：Any
• Shape：Square, Round
• Loading Weight：20-200 Tonnes
• Surface：Anti-Slip, Smooth
• Thickness Tolerance：+1mm

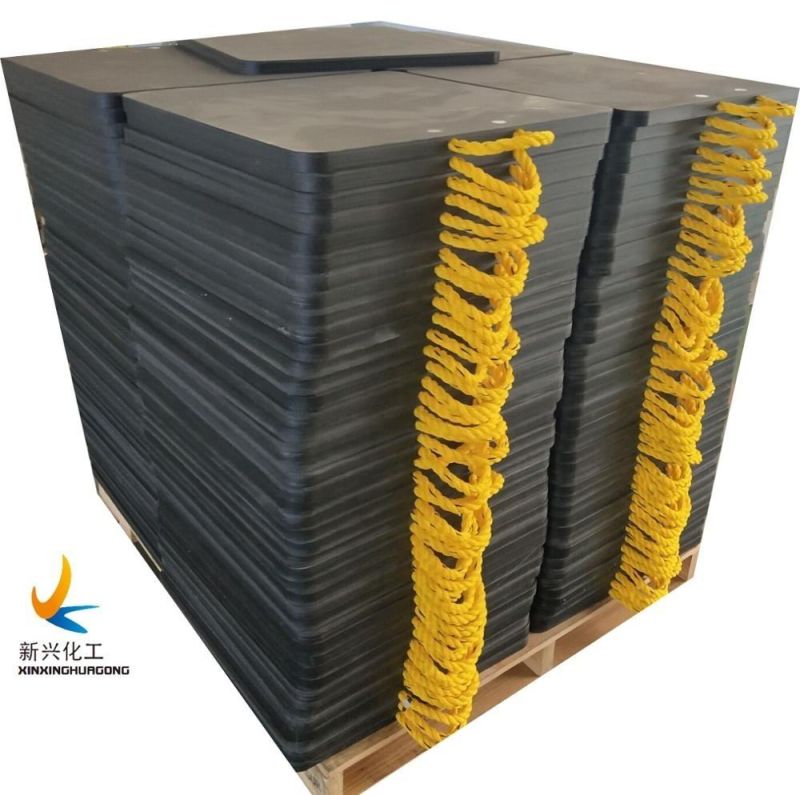

• Handle：Nylon Rope and PVC Tube
• Logo：Available
• Application：Crane, Pump, Tree Trimmer, etc.

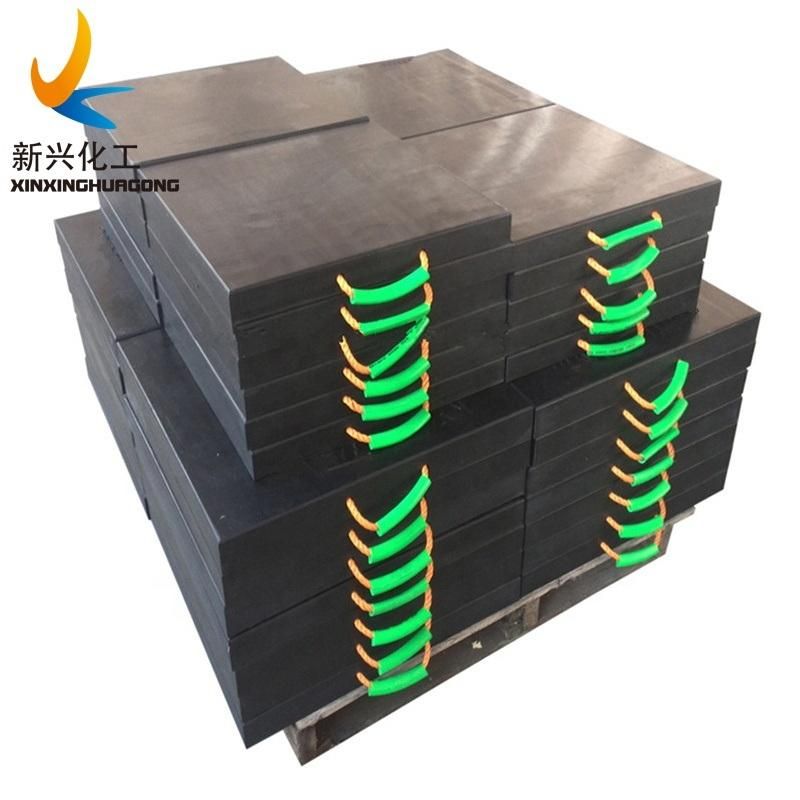

• Transport Package：by Pallets
• Specification：24′′x24′′x1′′
• Trademark：Xinxing
• Origin：China
• HS Code：392010
• Production Capacity：5000 Pieces Per Month

Basic Info.

Model NO. XX-P02 Type Folding Color Any Shape Square, Round Loading Weight 20-200 Tonnes Surface Anti-Slip, Smooth Thickness Tolerance +1mm Handle Nylon Rope and PVC Tube Logo Available Application Crane, Pump, Tree Trimmer, etc. Transport Package by Pallets Specification 24′′x24′′x1′′ Trademark Xinxing Origin China HS Code 392010 Production Capacity 5000 Pieces Per Month

Product Description

Polyethylene Anti Slip UHMWPE Crane Outrigger Jack Pad Stabilizer Pad Crane Mats

Polyethylene Anti Slip UHMWPE Crane Outrigger Jack Pad Stabilizer Pad Crane Mats supply a range of lightweight and long-lasting spreader plates that offer stable support when operating cranes, aerial work platforms and mobile plant. Made from high quality, heavy duty UHMW polyethylene, our range of outrigger pads offer protection against water, corrosion and splintering - a huge advancement over the more traditional wooden and steel alternatives.
- Guaranteed Unbreakable
- Made in the China
- Leading time within 15 days

Here, any size and color of Crane Outrigger Pad are aviable with us




Products Description

Xinxing Polyethylene Anti Slip UHMWPE Crane Outrigger Jack Pad Stabilizer Pad Crane Mats provide a super strong, rigid and easy to use foundation for a wide variety of outrigger enabled equipment. Constructed of engineered thermoplastic material, with a crush rating up to 750 psi and maximum allowable load ratings up to 300,000 lbs., Xinxing Polyethylene Anti Slip UHMWPE Crane Outrigger Jack Pad Stabilizer Pad Crane Mats deliver the strength, stiffness and reliability you can trust.

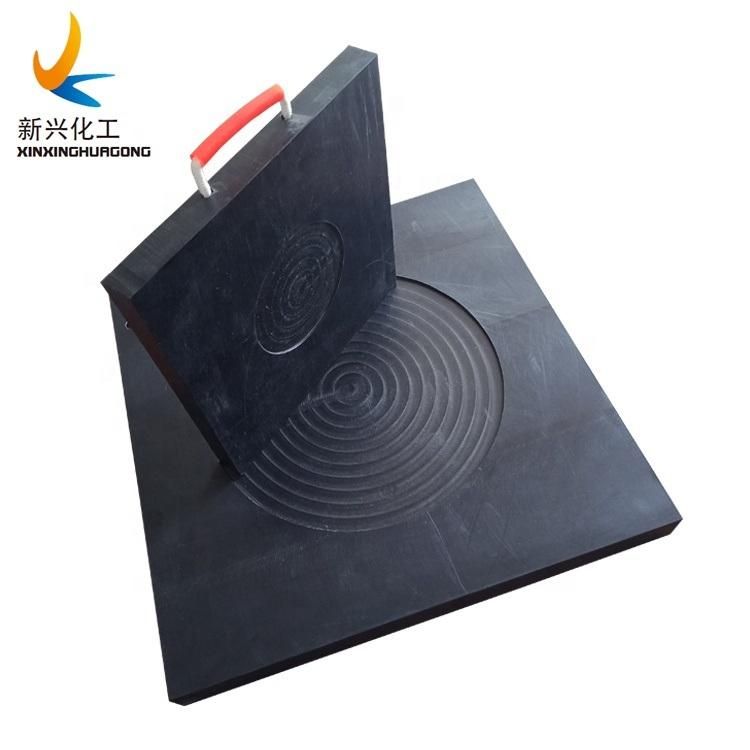

1. Different surface

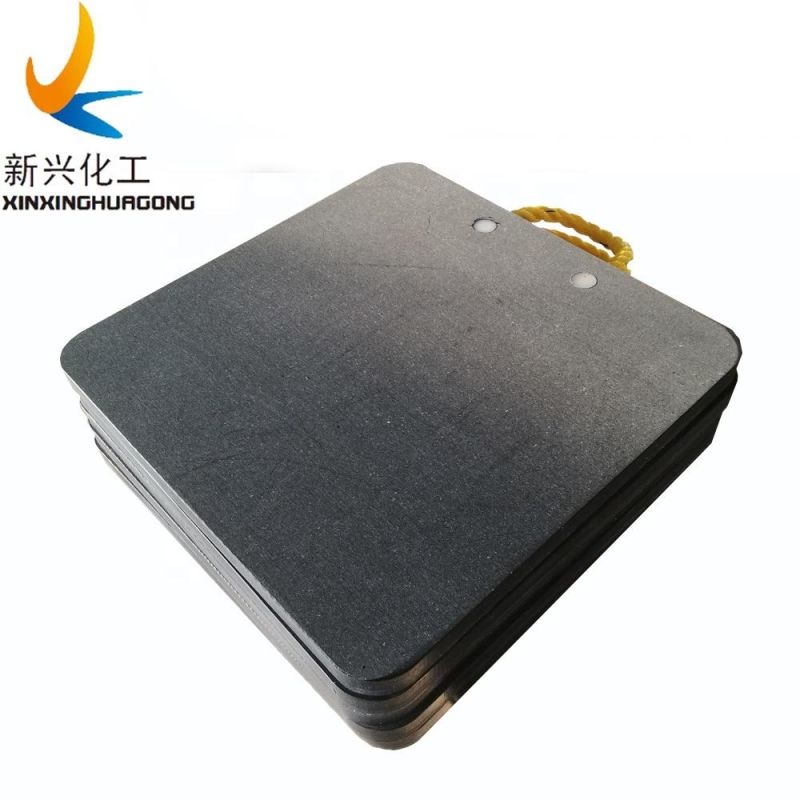

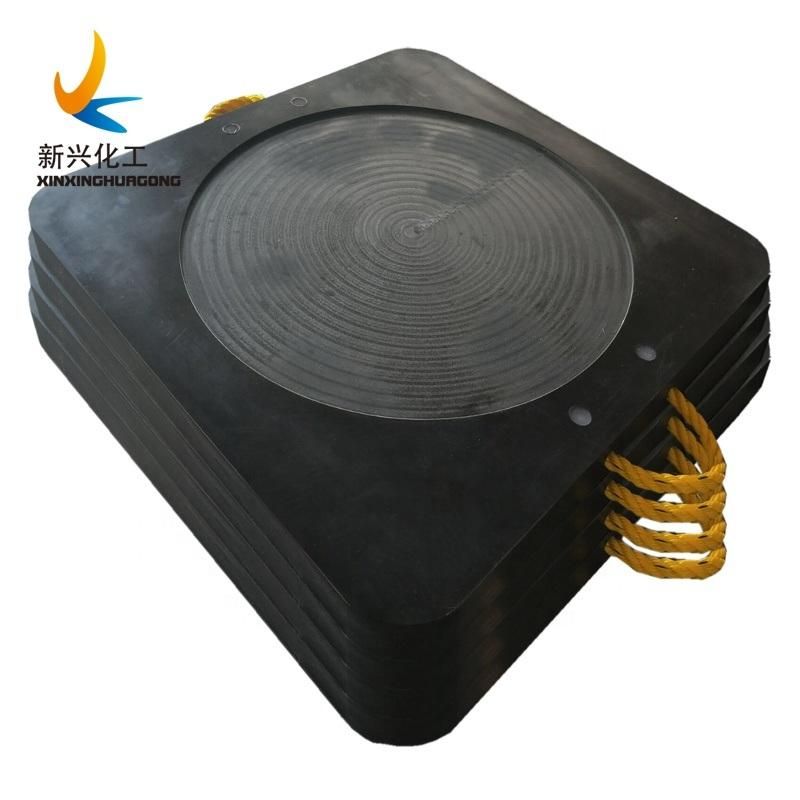

A Smooth Surface       B Circle in Middle       C Rhombus pattern in surface       D Anti-slip Surface

2. Handle

A : With nylon rope and rubber sleeve  B : With hole holder on top  C : With Steel Chain

3. Shape

A : Square shape  B:Round shape

Advantages of Polyethylene Anti Slip UHMWPE Crane Outrigger Jack Pad Stabilizer Pad Crane Mats

--Highest abrasion resistance of any polymer, 6 times more abrasion resistant than steel
--Do not absorb moisture and will not swell up over time due to exposure outdoors.
--Good impact intensity,Do not lose their impact strength over time.
--Good breaking elongation,so they will bend but not break under extreme loads.
--Non-stick surface, easy to clean.
--Corrosion and chemical resistant.
--Noise- absorption, Vibration-absorption
--Super compression strength
--15 Percent the weight of steel pads and easier to handle
--Compressive loads up to one million pounds
--Up to 15,000 pounds per square foot
--Non-Conductive
--Non-Toxic and smell


Applications

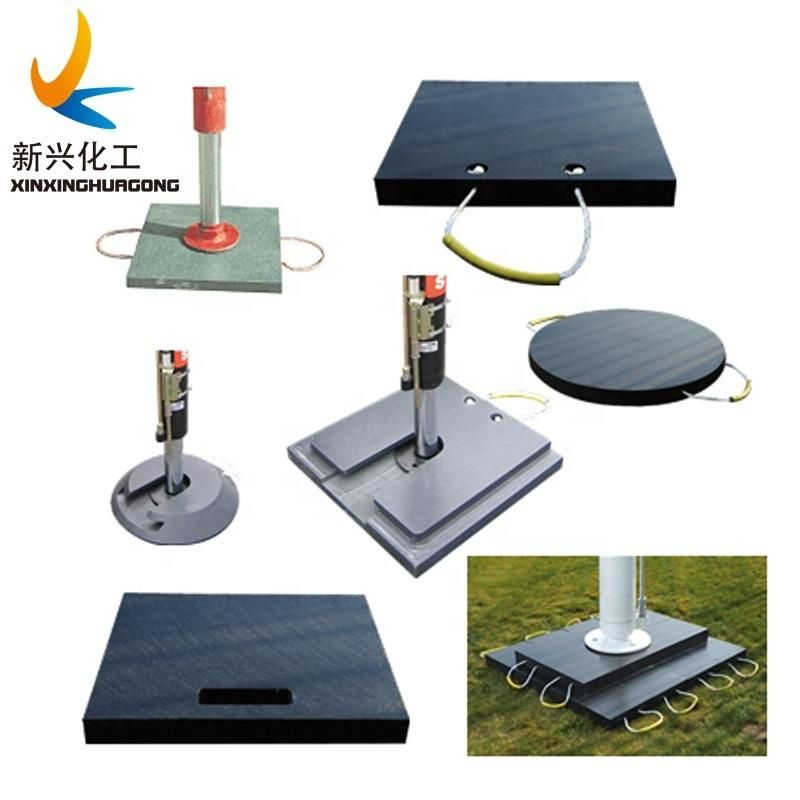

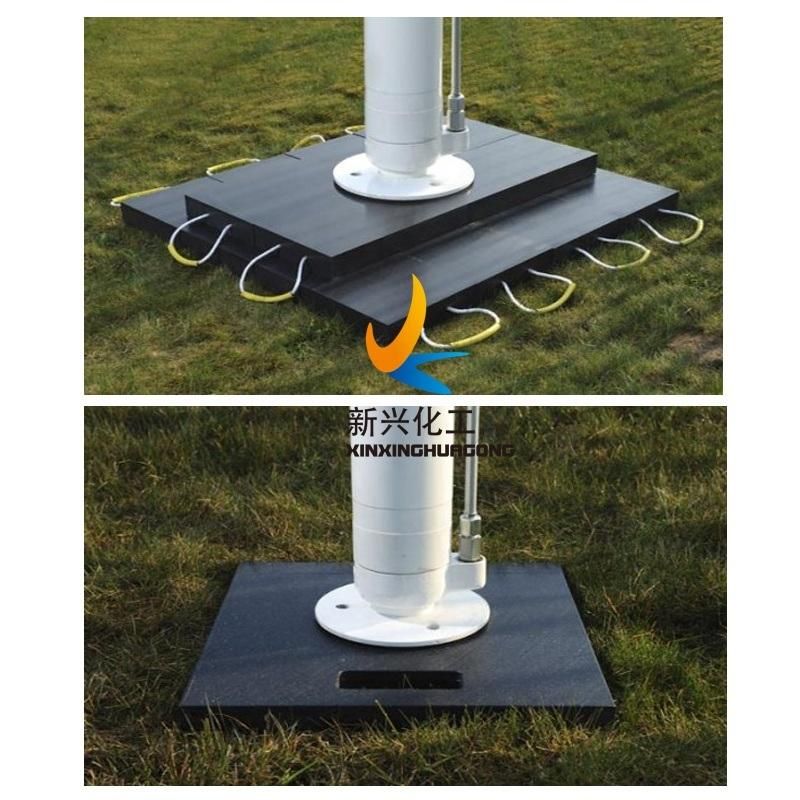

Xinxing Polyethylene Anti Slip UHMWPE Crane Outrigger Jack Pad Stabilizer Pad Crane Mats put under the support-leg Truck Crane, Crawler Crane, Rough Crane, Boom Pump, Concrete Pump, Fire Truck, Utility Truck, Tree Trimmer, Any type of Aerial Equipment and so on, for making the machine work safely.

What Size Outrigger Pad Do You Need?

Xinxing Polyethylene Anti Slip UHMWPE Crane Outrigger Jack Pad Stabilizer Pad Crane Mats are available in three categories; Medium Duty (1.0″ thick), Heavy Duty (2.0″ thick) and Super Duty (3.0″ and 4.0″ thick) and are designed for equipment typically up to 100 tons in capacity.
As the thickness of a Xinxing Polyethylene Anti Slip UHMWPE Crane Outrigger Jack Pad Stabilizer Pad Crane Mats increases it has a greater ability to distribute higher loads over the ground.
The size and thickness of the Polyethylene Anti Slip UHMWPE Crane Outrigger Jack Pad Stabilizer Pad Crane Mats you need depends on your equipment type/specifications and the soil bearing capacity.

Size & Load Capacity

Dimensions(mm)	Weight(kg)	Vertical Jack Capacity (tonne)	45° Load(tonnes)
400*400*40	6.14	30	18
500*500*25	6.00	27	16
500*500*50	12.00	35	22
600*600*50	17.28	35	22
800*800*60	36.86	45	25
1000*1000*100	96.00	80	40

Techinal Data Sheet

Property:	Test Method (Standard)	Ticona GUI4152	Ticona GUI4150,4120	Unit
Molecular weight		3-5 million	3-5 million
Density	ISO 1183-1:2012/DIN53479	0.92-0.98	0.93-0.98	g/cm³
Compression strength	ISO 604:2002	≥30	≥32	Mpa
Tensile strength	ISO527-2:2012	≥20	≥22	Mpa
Elongation at break	ISO527-2:2012	≥300	≥300	%
Dynamic Friction coefficient	ASTM D 1894/GB10006-88	≤0.20	≤0.18
Dynamic Friction coefficient	ASTM D 1894/GB10006-88	≤0.20	≤0.18
Notched impact strength (Charpy)	ISO179-1:2010/GB/T 1043.1-2008	≥100	≥100	kJ/m2
Abrasion wear index	ES-X60210-2008	≤30	≤30	mg
Vicat softing point	ISO306:2004	≥80	≥80	°C
Hardness shore-D	ISO 868:2003	60-65	61-66	D

Our Company

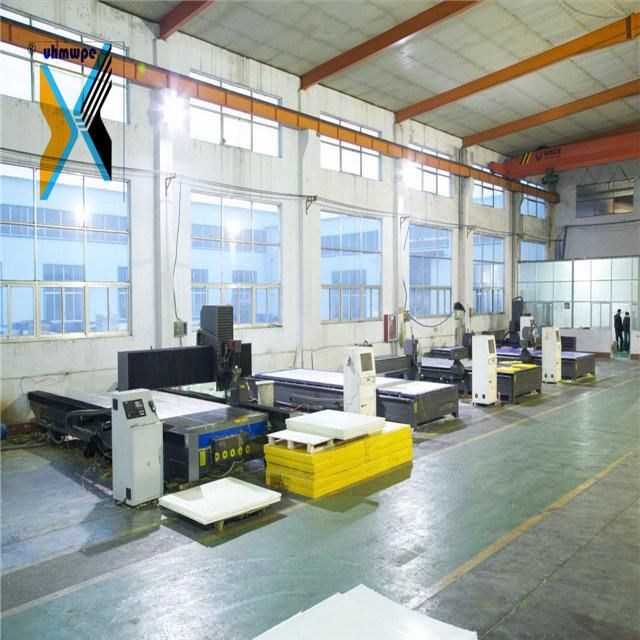

The largest factory in China about Concrete Pumps Portable UHMWPE Nylon Plastic Crane Outrigger Stabilizer Pad, 8 workshops, 12 sets CNC machines, all kinds of certification and industry standards could be met. In addition, we could provide the best after-sale service, 24 hours online for you!




FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? Is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment.
