Crane

25t Topless Tower Crane Qtz500 (8522)

Dahan Technology Co.,Ltd.
  • Warranty:12 Months
  • Certification:CE, ISO9001, SGS
  • Condition:New
  • Maximum Lifting Height:200-250m
  • Maximum Lifting Weight:>10t
  • Installation:Jack-Up

Base Info

  • Model NO.:QTZ500(8522)
  • Moving Type:Fixed
  • Type:Top-Slewing Crane
  • Jib Length:85m
  • Mast Section Size:2.5*2.5*5.95m
  • Max. Load:25t
  • Free Standing:73m
  • Transport Package:Containers or Truck
  • Specification:25T tower crane
  • Trademark:DAHAN
  • Origin:Dahan
  • HS Code:84262000
  • Production Capacity:5000 Sets,Year

Description

H7015A-10D ParameterSerial No.Model H7015A-10DTon 10t/60mItemNameSpecificationQuantityBrand1Free standard heightBase section2*7.5 ∠200*201 2Strengthen section 0 4    5Mast section2*3 ∠200*2017 6Jacking section2*2 ∠200*201 7Total 19 9Hoisting jib h=2086  12Hoisting mechanismMotorYZEP2-200L3-41 13reducer45PFC251 14Brake16Drum18Slewing mechanismMotor 1YTRVF132M1-4F1 5.5KW1 19Motor 2YTRVF132M1-4F2 5.5KW1 20ReducerJH19D2 22Trolley mechanismMotor power6JXF5 5.5kW1 23HoistingInverter55kw1 24SlewingInverter18.5KW1 25TrolleyingInverter7.5KW1 26BearingSlewing bearingQWA1600.501 27CabinCabin 1 28 Counterweight2600kg517000kg 2000kg1291000kg2      25t Topless Tower Crane Qtz500 (8522)The maximum lifting torque of the PT7015 tower crane is 290t.m, and the maximum lifting capacity is 12t. A total of 8 arm length combinations of 35m-70m can be realized, which can meet the needs of different hoisting environments.

The international top stress calculation software is used to analyze the safety of the tower crane structure, and the force on each node of the tower crane is calculated to ensure the overall safety of the tower crane. The three-dimensional solidworks software is used to design, and each component has a high degree of coordination in the design. Ensure that the tower crane runs smoothly. It is among the top high-end in the domestic industry.

The PT7015 tower crane adopts laser blanking, with small deformation and high precision, ensuring subsequent robotic welding. Through the turntable welding workstation, the crane arm welding line, and the fully automatic welding line of the chip standard section, the unmanned welding is basically realized, and the post-welding is adopted. Processing technology to ensure dimensional accuracy and product interchangeability. After the steel structure is riveted and welded, the shot blasting, rust removal, and stain removal treatments are performed to increase the adhesion of the plastic powder and ensure that it reaches the Sa2.5 international standard. The surface is clean, the weather resistance is good, and the service life is long.

The increase in the weight of the PT7015 tower crane hook is conducive to improving the effect of hoisting wire rope arranging and increasing the service life of the wire rope. The sag of the hoisting wire rope is reduced by 35%, which is conducive to the construction of towers.


New frequency conversion faster, more stable and more accurate

The PT7015 tower crane is equipped with a full frequency conversion control system and an intelligent safety monitoring system. It adopts a new generation of rotation vector control algorithm, which has fast start and stop, stable operation, accurate positioning and strong wind resistance. Leading more than 10% of models of the same level. The new hoisting frequency conversion control technology can make the tower crane's hoisting speed as high as 100m/min, and the micro-speed function as low as 5mm/s, and it is equipped with on-load and speed-on-speed technology throughout the entire process. The overall hoisting efficiency is increased by 30%, which is efficient and accurate.

Modular design of components

PT7015 series tower crane components adopt modular design. The common rate of tower crane components at the same level is over 80%. The tower body has high versatility. The new and old tower crane standard sections can be used interchangeably, which reduces user input and improves return on investment.

New intelligent security supervision to ensure safety "prevent disease".

The new intelligent safety monitoring system adopts dual protection of mechanical and electronic safety devices to monitor the lifting height, luffing range, lifting weight and torque in real time, ensuring the safety of control in all aspects. A video surveillance system can be installed to monitor the hoisting, cab operation, and hook operation in real time, ensuring the safety of hoisting to the greatest extent. It can be equipped with a tower crane attitude monitor to monitor the attitude of the tower crane in real time, remote big data real-time analysis, and an additional layer of intelligent protection beyond the traditional limit protection.

cloud service

Without having to arrive at the construction site, you can realize complex inverter parameter customization to meet the driving requirements of different drivers. Device management can be easily achieved through mobile APP, reducing management and operating costs, creating greater value for customers, and effectively helping customers improve their management capabilities.
25t Topless Tower Crane Qtz500 (8522)

Product advantage:

The Steel Structure with Long Lifespan and High Safety The flat-top tower crane is designed without any pull rod so as to reduce the height of the tower top and meet the requirements on different work sites. Especially suitable for disassembling and assembling on restricted construction sites or during the multi-tower cross operation The height difference between tower bodies can be reduced to save much space and cost.

Trolleying Mechanism

Variable frequency speed regulation, stable and reliable starting and braking Low maintenance rate gear reducer The operation efficiency is 10% higher than that of ordinary trolleybus.

Hook

Increase the weight of the hook, effectively improve the rope lining effect during lifting; adopt new structure to prevent the hook pulley from falling off, completely solve the problem of rope falling off. A movable joint is added between the hook plate and the cross beam to facilitate the hook operation.



Trolley

A semi-circular protective ring is added to the lower part of the sports car pulley, which fundamentally solve the wire rope groove failure caused by high-speed lifting during the turning process.

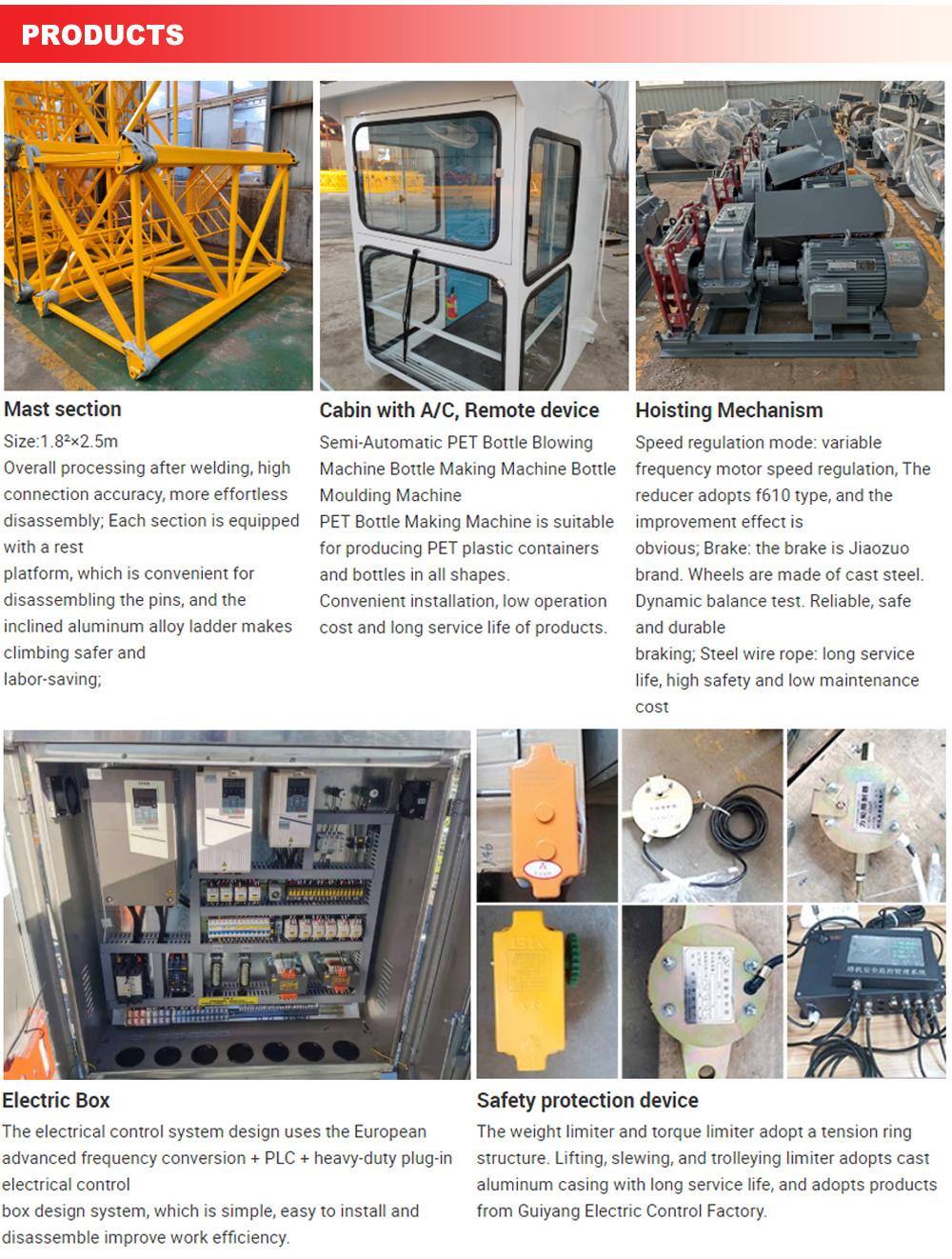

Mast section

Overall processing after welding, high connection accuracy, more effortless disassembly; Each section is equipped with a rest platform, which is convenient for disassembling the pins, and the inclined aluminum alloy ladder makes climbing safer and labor-saving;



Cabin

Convenient installation, low operation cost and long service life of products

Telescopic

The frame, lifting cylinder and lifting beam have been assembled before leaving the factory, which can be directly hoisted on site



Hydraulic Jacking Mechanism

The mechanism and the jacking system have been refueled, the wire rope has been wound, and the tower crane is ready for use; saving on-site installation costs.

Safety protection device

The weight limiter and torque limiter adopt a tension ring structure. Lifting, slewing, and trolleying limiter adopts cast aluminum casing with long service life, and adopts products from Guiyang Electric Control Factory.
