• Model NO.：STC80
• Shaft Number：2
• Crane Jib：Four-Arm
• Type：Folding
• Engine Model：Yuchai Yc4e140-56
• Transport Package：Roro
• Specification：9300*2400*3210mm
• Trademark：SINOMADA
• Origin：China
• Production Capacity：50000PCS,Year

Basic Info.

Model NO. STC80 Shaft Number 2 Crane Jib Four-Arm Type Folding Engine Model Yuchai Yc4e140-56 Transport Package Roro Specification 9300*2400*3210mm Trademark SINOMADA Origin China Production Capacity 50000PCS/Year

Product Description

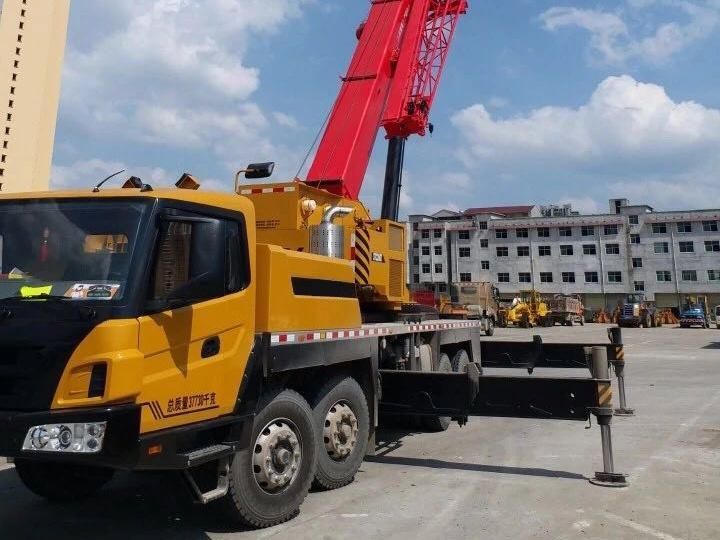

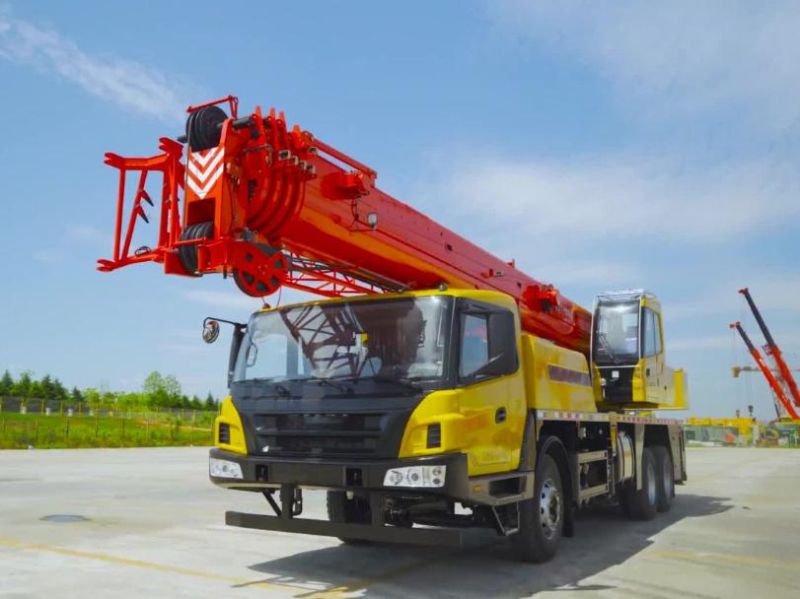

China Construction Machinery 8ton Truck Crane STC80 for Sale
STC80 truck crane has the largest lifting moment, main boom length, lifting height, and outrigger span in the same tonnage product in the industry, with a maximum lifting moment of 318NM; U-shaped main boom, boom length 25.6m, lifting height 25.5 m; the outrigger span is 4.9m×4.39m.

1.Double-axle drive is used, providing good traffic ability and comfortableness under complex road condition with reliable traveling performance.Engine has the multimode power output function, which reduces power consumption.The use of tipping over early-warning technology provides high stability and safety of the overall operation.

2.Electrical proportion Hydraulic system load feedback, piston pump, electrical controlled valve and constant power control are applied to provide strong lifting capacity and good micro-mobility.Unique steering buffer design is adopted to ensure stable braking operation.

3.Five-section boom of high strength steel structure and optimized U-shaped cross reduces weight significantly with higher safety rates.Jib mounting angles are 0°, 15°and 30° which ensures fast and convenient change-over between different operating conditions so as to improving working efficiency of the machine.

4.Self-developed controller SYMC specially for engineering machinery is configured.
The adoption of CAN-bus full-digital network control technology ensures stable control signal, simple harness and high reliability.

5.Timely feedback of data information can achieve the monitoring of the overall working status in real-time.The load moment limiter equipped with the comprehensive intelligent protection system is used with accuracy within 3% to provide a comprehensive logic and interlock control, thus ensuring more safe and reliable operation.

Speed parameter
Maximum single rope speed of main winch	140m/min
Boom fully extended/retracted time	32/35s
Full lifting/falling time of boom	30/50s
Maximum turning speed	2r/min
Weight parameter
Total weight of the whole machine	12600kg
Maximum counterweight	0.8t
Size parameters
Overall length	9300mm
Overall width	2400mm
Overall height	3210mm
Outrigger span (horizontal x longitudinal)	4.9x4.39m
Dynamic parameters
engine model	Yuchai YC4E140-56 (National V)
Maximum engine power	103/2600kW/rpm
Engine maximum output torque	800/(1200-1700)N·m/rpm
Driving parameters
Maximum travel speed	90km/h
Minimum turning radius	8m
Maximum grade	35%
Approach angle	18°
Departure angle	12°
Minimum ground clearance	260mm
