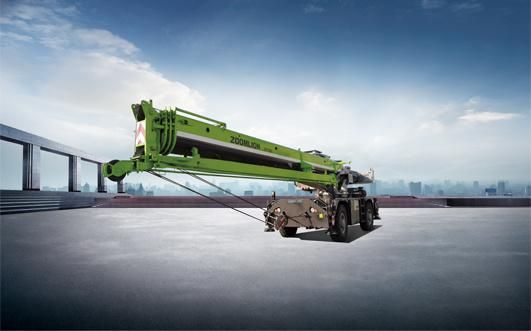

Zoomlion 30 Ton Rough Terrain Crane Zrt300 Rt Crane

Sinomada Heavy Industry (Changsha) Co., Ltd.

Certification：CE, ISO9001
Condition：New
Maximum Lifting Height：>40m
Maximum Lifting Weight：8-10t
Shaft Number：2
Crane Jib：Five-Arm

Base Info

Model NO.：ZRT300
Type：Straight Arm
Rated Working Pressure：22 MPa
Rated Working Flow：300L,Min
Complete Vehicle Kerb Mass：28300 Kg
Max. Travel Speed：45km,H
Transport Package：Nude Package
Specification：13600*2610*3600mm
Trademark：ZOOMLION
Origin：Hunan
HS Code：87051091
Production Capacity：100units,Month

Description

ItemUnitValueWork performanceMax. rated lift capacity × work radius

lb.ft

kg.m

66138.7×9.8

30000×3

Max. load moment of basic jib

lbf.ft

kN.m

708480

960

Max. load moment of max. length main boom

lbf.ft

kN.m

487080

660

Max. lifting height of max. length main boom m37.2Max. lifting height of jibm45DimensionsOverall dimensions(L×W×H)mm13600×2610×3600Outrigger spread(L×W)mm6700×6300Main boom length (Fully retracted-fully extended)

in

mm

421.3~1378

10700~35000

Jib lengths (Fully retracted-fully extended)

in

mm

31

8000

Boom angle°-2 -80Swing range°360°unlimited swing(Full range)Work SpeedsMax. hoist rope speed (Main winch)m/min140Min. boom telescoping out times67Min. boom telescoping in times50Min. boom up times35Min. boom down times50Swing speedr/min0-2.5Hydraulic systemRated working pressureMPa22Rated working flowL/min300Hydraulic oil tank capacityL580MassComplete vehicle kerb masskg28300Front axle loadkg14600Rear axle loadkg13700DrivingMax. travel speedkm/h45Wheelbasemm3880Treads (Front / rear)mm2214Max. gradeability%51

Zoomlion 30 Ton Rough Terrain Crane Zrt300 Rt Crane
