• Model NO.：Light crane system
• Maximum Lifting Weight：0.05-3t
• Main Girder Form：Double Girder
• Type：Ordinary
• Power Supply：3pH AC
• Lifting Speed：Variable Speed (Standard)
• Cross Travelling Speed：20m,Min
• Crane Travelling Speed：20m,Min
• Working Class：A3
• Lifting Mechanism：Chain Hoist
• Similar Model：Ldp,Ldc,Lb,Lz
• Recommended Rail Width：37~70mm
• Lifting Height：6,9,12,18,24,30m
• Span：0.6-20m
• Installation：Suspension,Hanging,Self Support
• Application：Indoor Workshop,Warehouse,Store.etc
• Voltage：380V 50Hz 3pH
• Transport Package：Standard Export Package
• Specification：2 ton
• Trademark：NYBON
• Origin：Henan
• Production Capacity：100 Sets Per Month

Basic Info.

Model NO. Light crane system Maximum Lifting Weight 0.05-3t Main Girder Form Double Girder Type Ordinary Power Supply 3pH AC Lifting Speed Variable Speed (Standard) Cross Travelling Speed 20m/Min Crane Travelling Speed 20m/Min Working Class A3 Lifting Mechanism Chain Hoist Similar Model Ldp/Ldc/Lb/Lz Recommended Rail Width 37~70mm Lifting Height 6/9/12/18/24/30m Span 0.6-20m Installation Suspension/Hanging/Self Support Application Indoor Workshop/Warehouse/Store.etc Voltage 380V 50Hz 3pH Transport Package Standard Export Package Specification 2 ton Trademark NYBON Origin Henan Production Capacity 100 Sets Per Month

Product Description

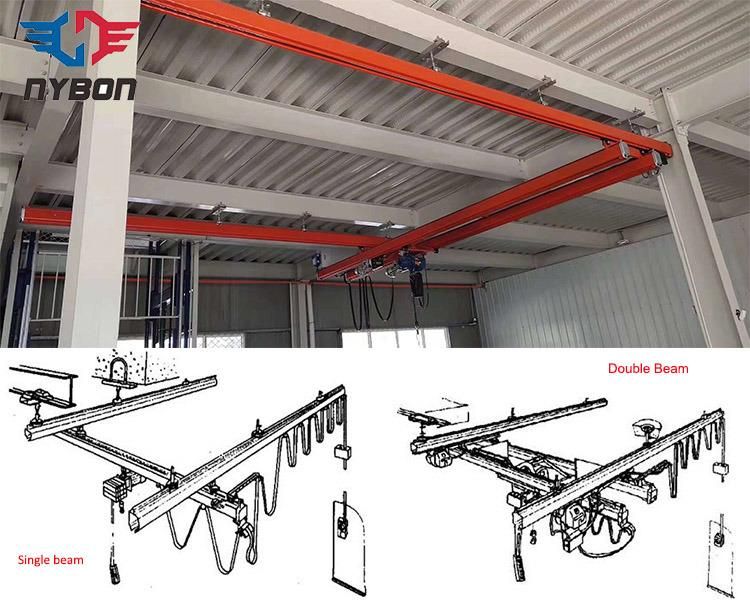

Light weight Monorail Overhead Crane System with Chain Hoist
 This series light duty lifting equipment widely used in production line where is space is intense, because of its light weight, compact structure, robust stifness and strength, together with chain hoist, the complete system take full advantages of limited space by improve work efficiency, further bring up greater production capacity. No doubt a smart product to go with for a worth value on investment.

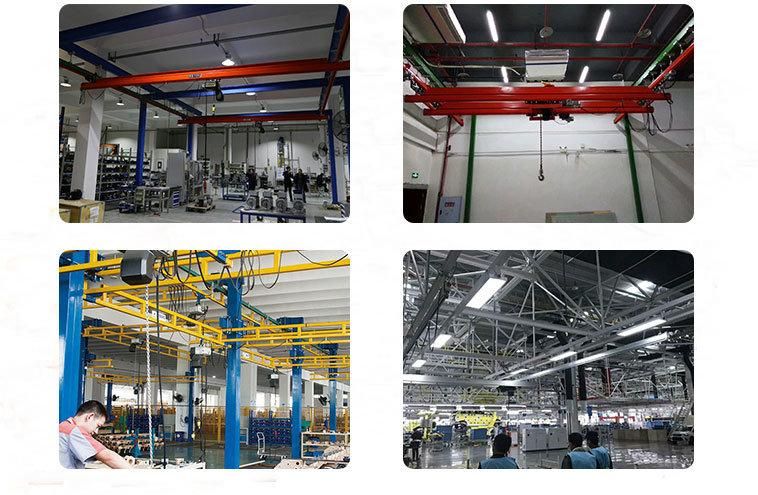

It be used for transporting materials in a line, which can directly connect the loading worker and unloading worker, such as the out-back haul, circle haul, etc. flexible travelling directions, running arbitrarily from the single track line to multiple tracks, and ring track. So it is widely used in all walks of life conveying link or system.

Product Features:

1.Decrease industrial costing;

2.Design the whole structure based on original industry space and requirements;

3.Increase or decrease devices based on production demands, easy disassembly and relocation, not affect other equipments working;

4.Light and small structure, easy operation and accurate positioning;

5.Low consumption & energy and environmental protection;

6.Low noise :simple structure, low Failure rate;

7.High Comprehensive benefits

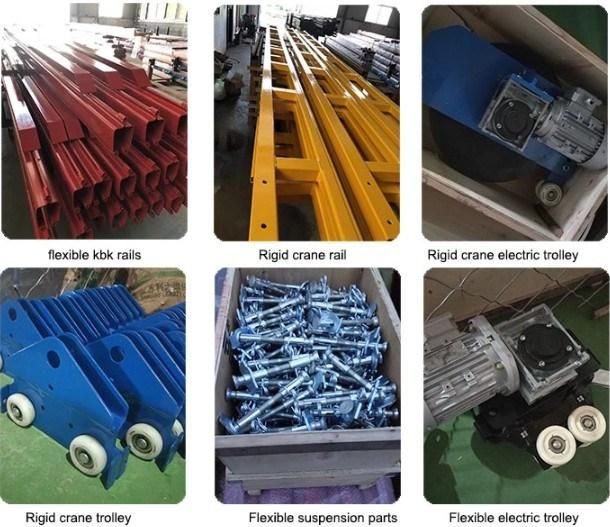

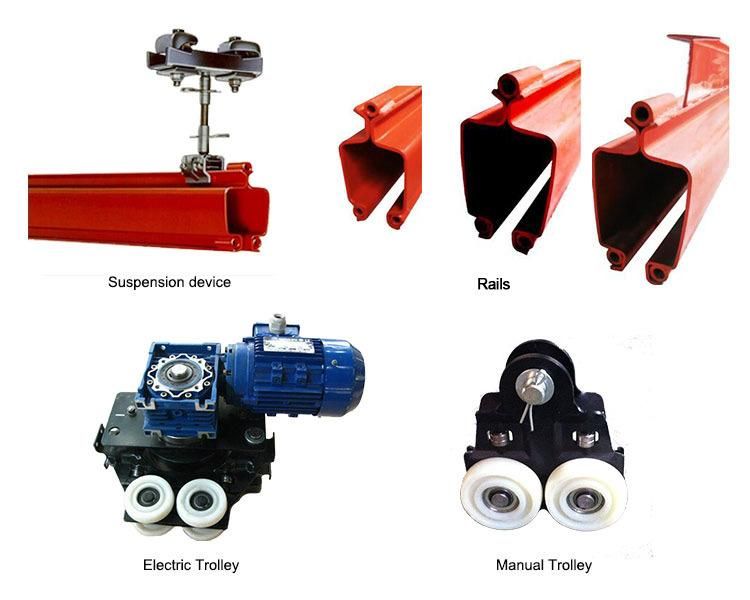

Components:

Capacity(kg)	L(mm)	LK(mm)	L2(mm)	L3(mm)	H(mm)	h(mm)	b(mm)	B(mm)
500	8000	7500	507	1177	847	733	550	740
1000	6000	5500	507	937	942	828	550	740
2000	3500	3000	467	717	1071	957	650	1110

1. Q: What's your MOQ?

  A: 1 Set;

2. Q: What's your package?

  A: Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes;

3. Q: What's your delivery period?

  A: Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period;

4. Q: What's your warranty period?

  A: 12 months from winches accepted;

5. Q: Do you have engineer oversea installation service?

   A: Yes; We have;

6. Q: What kinds of products do you have?

    A: All kinds of industrial electric winch (especially non-standard); Overhead Crane; Gantry Crane, Electric Hoist; Screw Hoist; Radial/Flat Gate Hoist; Steel Gate; etc.

7. Q: Could we buy spare parts in local once they are out of work?

    A: Our main electrical parts brand is famous brand; it's very easy to buy all the world. But if there is any difficulty, we can post to you by express, such as DHL, UPS, FEDEX, Aramex, etc.

8. Q: Do you provide lift tools?

    A: Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet , pulley blocks, hook, lock catch, wire rope, fiber rope, etc.

9. Q: Could your winches drag inclined?

    A: Yeah, our electric winches could drag horizontal, drag inclined, hoisting vertical.
