HBQZ Construction Machinery 3.2 tons Hydraulic Truck Crane Factory direct Small Mobile Truck Crane for sale
Hubei Jiaheng Technology Co., Ltd.- Certification：ISO9001
- Condition：New
- Maximum Lifting Height：<10m
- Maximum Lifting Weight：2-4t
- Shaft Number：2
- Crane Jib：Three-Arm
Base Info
- Model NO.：SQ3.2S3
- Type：Straight Arm
- Product name：China Manufacturer small Hydraulic Truck Crane
- Hot points：Telescopic truck crane
- Crane type：Telescoping boom crane
- Feature：Hydraulic crane
- Max Lifting Height：10m
- Working Radius：7.4m
- Working Pressure：16MPa
- Rated Oil Flow：30 L,min
- Oil tank Capacity：100L
- Winch type：Hydraulic
- Outrigger Span：1750-3550mm
- Crane Weight：1500 kg
- Installation Space：800mm
- Safety Device：Load Indicator, Hydraulic Safety Valve
- Material：HG70
- Transport Package：Nude or Customized
- Specification：3.2T Telescopic truck crane
- Trademark：HBQZ
- Origin：China
- HS Code：8426910000
- Production Capacity：35 Unit,Units Per Month
Description
Max Lifting Capacity (kg/m)3200/2.5 1100/4 800/5.3 400/7.4 Max Lifting Height 10m Working Radius 7.4m Boom Section 3 stages Rotation Angle 360°All Rotaion Working Pressure 16mpa Rated Oil Flow 30 L/min Oiltank Capacity 100L Winchtype Hydraulic Swingtype Planetary gear reduction. Outrigger adjustable, Hydraulic operating. Outrigger Span 1750-3550mm Crane Weight 1500 kg Installation Space 800mm Safety Device Load Indicator, Hydraulic Safety Valve, Counter Balance Valve, Automatic Swing Brake, Hook Safety Device. Material HG70
Our advantages:
Part 2-----OUR COMPANY

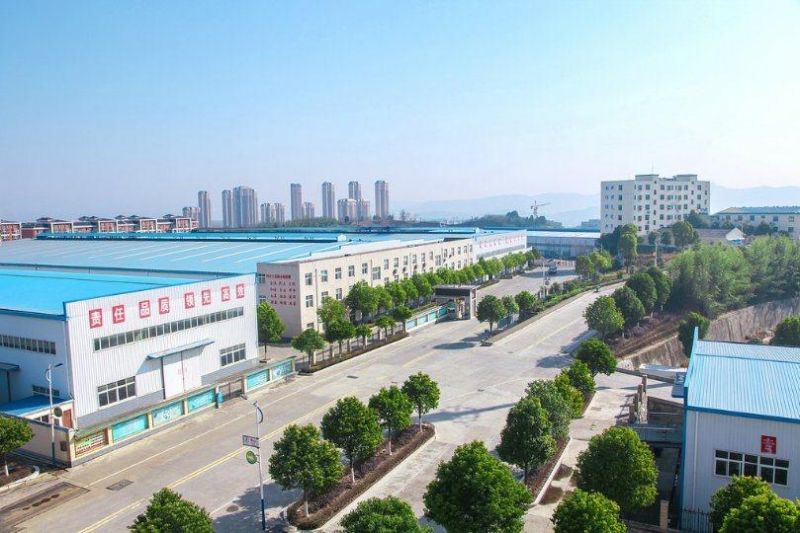

HUBEI BEST CRANE CO.,Ltd is located in Shiyan, Hubei Province of China.We are a professional truck mounted crane manufacture, mainly engaged in researching, developing and manufacturing truck mounted cranes from 1 ton to 200 tons.
The Company has passed the ISO 9001-2008, and achieved the license of Special Equipment Manufacture Unit.
HUBEI CRANE is a wholly-owned subsidiary of HUBEI JIAHENG TECHNOLOGY CO.,LTD,which is formerly known as China famous hydraulic cylinder manufacture. The Head office JIAHENG was founed in 2001,the main products include a variety of special hydraulic cylinder.
After years development,JIAHENG now covers an area of 200,000 Square meters, ownes a registered capital of 1000 million RMB,and 250 million RMB worth of fixed assets .JIAHENG has established long time cooperation with over 80 big companies like Zoomlion, Fukuda Fortaleza, CIMC Vehicle Group, and so on.

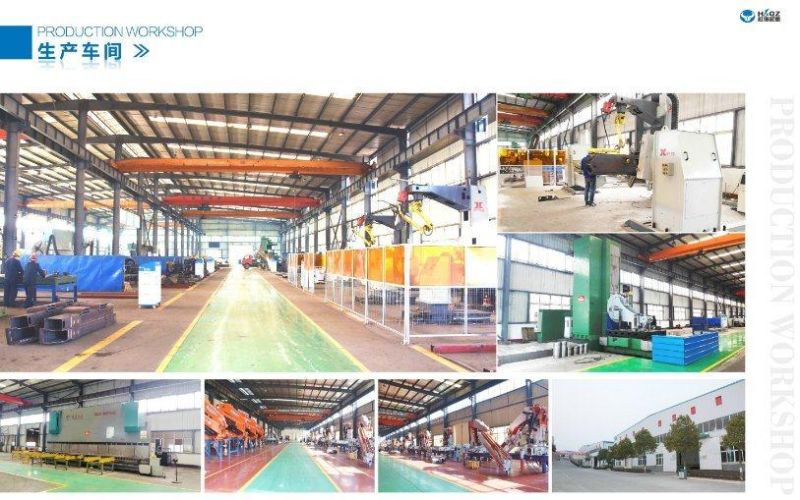

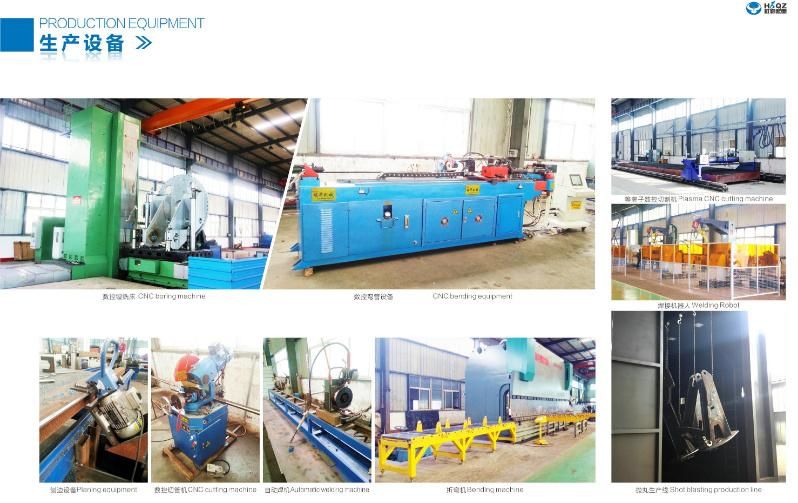

Our company have more than 800 units equipment for mass production.
We can product around 220 thousand units per year of hydraulic cylinder and 500 units per year of truck crane.
Our company have more than 150 technical staff, Have more than 10 invention patents and 60 utility patents.
So we can produce custiomed products or develop new products.
Part 3-----EXHIBITION
Our company attend the CANTON FAIR in China twice one year since 2014.
And also attend the BAUWA FAIR evevry two year.
We also coopearate with our customers for many fair both in China or overseas.
Part 4-----FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: How to pack and transport?
A: Nude with safty protection, only crane can be packed into containers for shipment.
And the truck mounted crane can be deliveried with ro-ro ship.
3: How long is the delivery time??
A: 35 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: one unit. For customized products, the MOQ can be Negotiated.
