25 Ton Zoomlion Truck Crane with Best Quality Hydraulic System Ztc251V451
Newindu Construction Engineering (Shanghai) Co., Ltd.- After-sales Service:1 Year Warranty
- Warranty:1 Year Warranty
- Certification:GS, RoHS, CE, ISO9001
- Condition:New
- Maximum Lifting Height:30-40m
- Maximum Lifting Weight:>16t
Base Info
- Model NO.:ZTC251V451
- Shaft Number:3
- Crane Jib:Four-Arm
- Type:Straight Arm
- Total Weight in Travel:29400kg
- Rated Power:206,2200kw,(R,Min)
- Rated Torque:1112,1400n.M(R,Min)
- Max. Travel Speed:75km,H
- Specification:12650*2500*3380mm
- Trademark:ZOOMLION
- Origin:Jiangsu, China
- HS Code:87051091
- Production Capacity:100 Units, Month
Description
Basic Info.
Model NO. ZTC251V451 Shaft Number 3 Crane Jib Four-Arm Type Straight Arm Total Weight in Travel 29400kg Rated Power 206/2200kw/(R/Min) Rated Torque 1112/1400n.M(R/Min) Max. Travel Speed 75km/H Specification 12650*2500*3380mm Trademark ZOOMLION Origin Jiangsu, China HS Code 87051091 Production Capacity 100 Units/ MonthProduct Description
25 Ton Zoomlion Truck Crane with Best Quality Hydraulic System Ztc251V451Product Description:
We are constantly devoting ourselves to the development of the new cranes by applying the latest techniques. The new products will have strong functions and be more adaptive to the customers. QY25K truck crane was developed by our company in 2000. Through constant upgrade, the travel and working performance are greatly improved. The chassis is three-axle which has strong power and cross-country capacity. The jib is optimized octagon section, which has excellent lifting capacity. The control system adopts hydraulic proportional (mechanical) control technique.
Parameters:
Dimension | Unit | ZTC251V451 |
Overall length | mm | 12650 |
Overall width | mm | 2500 |
Overall height | mm | 3380 |
Weight | ||
Total weight in travel | kg | 29400 |
Front axle load | kg | 6200 |
Rear axle load | kg | 23200 |
Power | ||
Engine model | SC8DK280Q3 / WD615.329(domestic III) | |
Engine rated power | kW/(r/min) | 206/2200 213/2200 |
Engine rated torque | N.m/(r/min) | 1112/1400 1160/1400 |
Travel | ||
Max. travel speed | km/h | 75 |
Min. turning diameter | m | 21.5 |
Min. ground clearance | mm | 275 |
Approach angle | ° | 16 |
Departure angle | ° | 13 |
Max. grade ability | % | 30 |
Fuel consumption for 100km | L | ≈37 |
Main performance | ||
Max. rated total lifting capacity | t | 25 |
Min. rated working radius | mm | 3000 |
Turning radius at turntable tail | m | 3.065 |
Max. lifting torque | kN.m | 1010 |
Base boom | m | 10.7 |
Fully extended boom | m | 34.19 |
Fully extended boom+jib | m | 42.15 |
Longitudinal outrigger span | m | 5.14 |
Lateral outrigger span | m | 6 |
Working speed | ||
Boom luffing time | s | 75 |
Boom full extension time | s | 100 |
Max. swing speed | r/min | ≥2.5 |
Max. speed of main winch (single rope) | m/min | ≥120 |
Max. speed of aux. winch (single rope) | m/min | ≥120 |

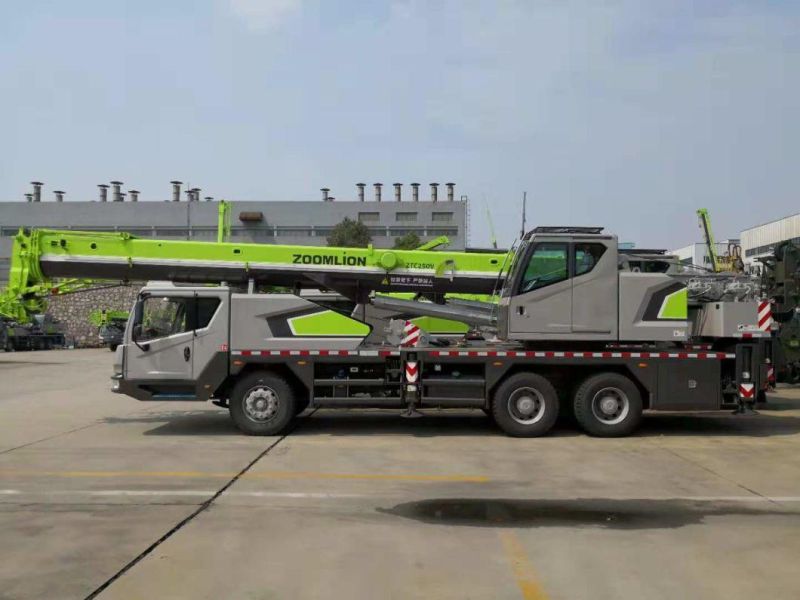

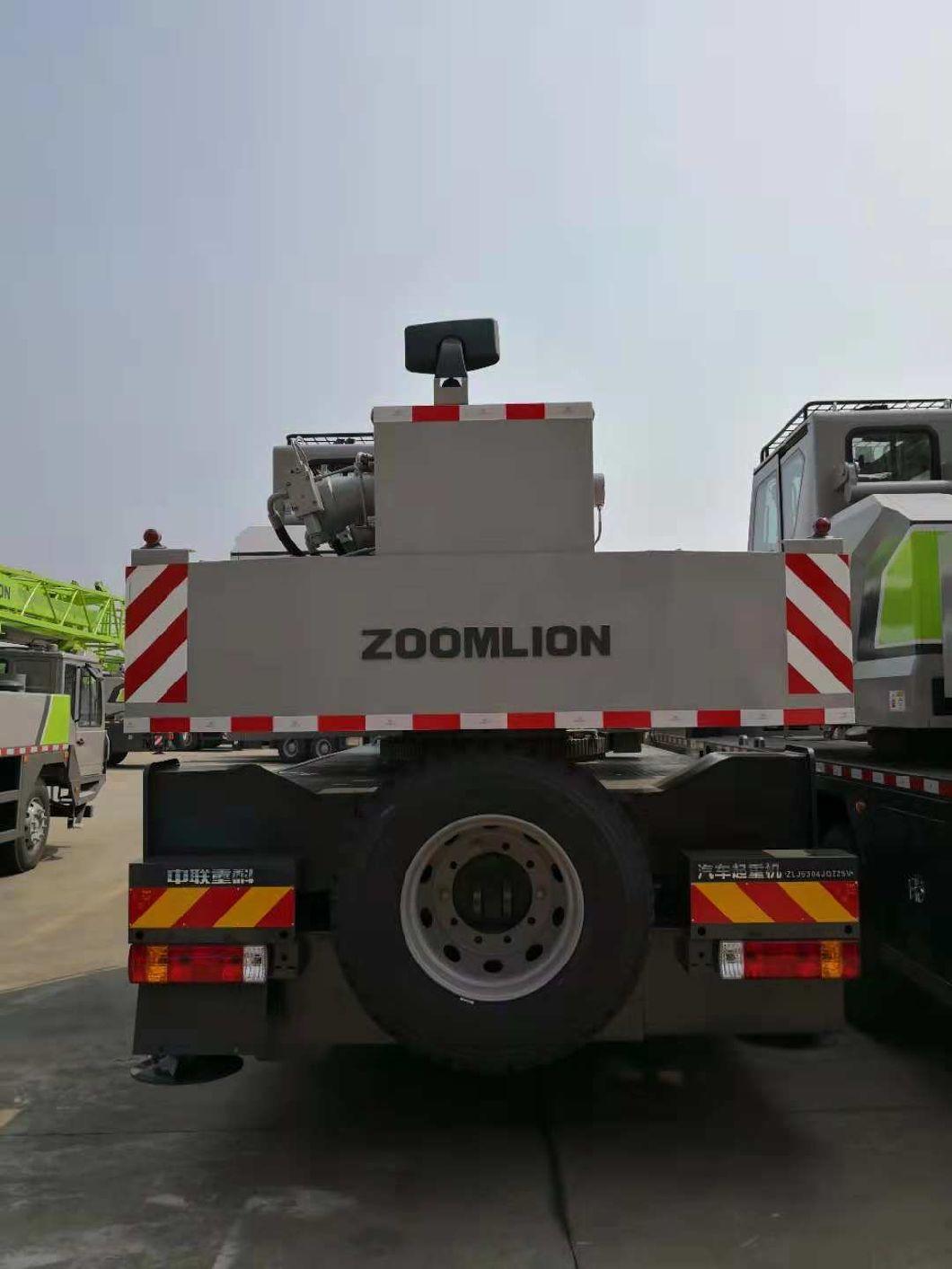

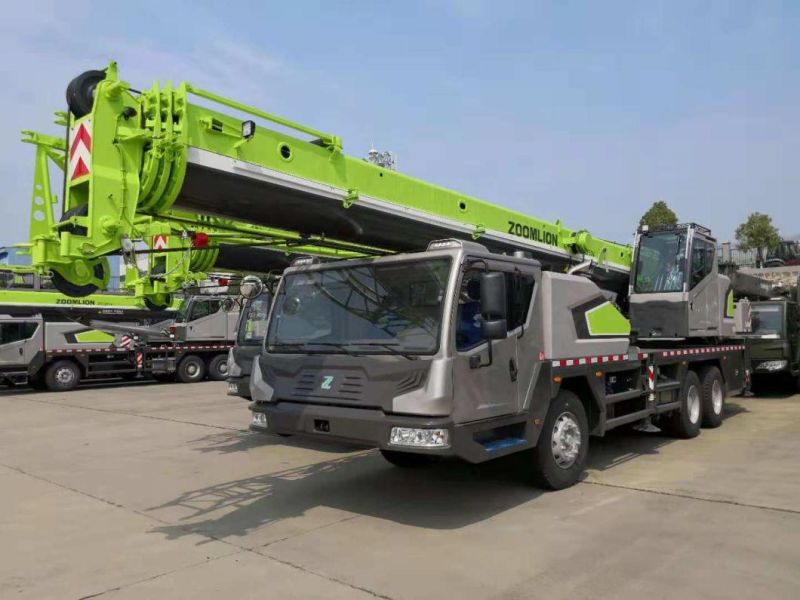

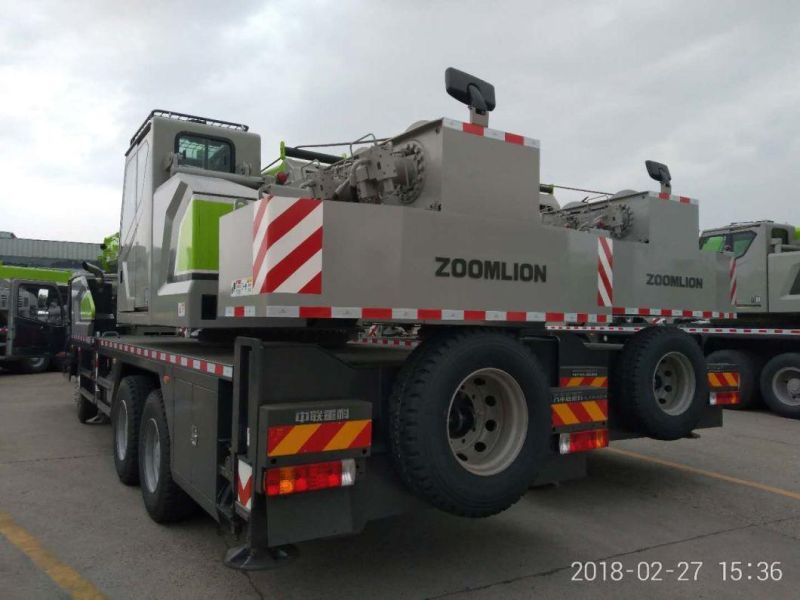

Pictures
