Brand New 55 Ton Mobile Truck Crane Qy55V532 with Good Price

Maxizm Construction Machinery (Qingdao) Co., Ltd.
  • After-sales Service：1years
  • Warranty：1years
  • Certification：GS, RoHS, CE, ISO9001
  • Condition：New
  • Maximum Lifting Height：>40m
  • Maximum Lifting Weight：>16t

Base Info

  • Model NO.：QY55V532
  • Shaft Number：3
  • Crane Jib：Four-Arm
  • Type：Folding
  • Max. Rated Lifting Capacity：55000 Kg
  • Max. Load Moment of Basic Boom：1568 Kn.M
  • Max. Lifting Height of Main Boom：44 M
  • Max. Lifting Height of Jib：60 M
  • Max. Driving Speed：74 Km,H
  • Transport Package：Nude
  • Specification：55000 kg
  • Trademark：ZOOMLION
  • Origin：China
  • HS Code：87051091
  • Production Capacity：1000,Year

Description

Overview Product Description
  • ItemUnitValueRemarksWorking    performanceMax.    rated lifting capacitykg55000 Max.    load moment of basic boomkN.m2009 Max.    load moment of main boom(fully extended)kN.m1050 Max.    load moment of basic boomm12.6 Max.    lifting height of main boomm43.6These    parameters do not include deflection of main boom and jibMax.    lifting height of jibm58Working    speeds              Max.    hoist rope speed(Main winch)m/min120 Max.    hoist rope speed(Auxiliary winch)m/min120 Boom    demrricking up times50 Boom    demrricking up times95 Slewing  speedr/min0-2.2 Driving    parametersMax.    height above sea levelm2000 Max.    driving  speedkm/h76 Max.    gradeability%40 Min.    turning diameterm≤24 Min.  ground clearancemm260 Oil    consumption per hundred kilometersL43 MassDeadweight    in driving conditionkg42000 Complete    vehicle kerb masskg41870 Front    axle loadkg16000 Rear    axle loadkg26000 DimensionsOverall    dimensions(L×W×H)mm13700×2800×3800 Outrigger    spread(L)m5.92 Outrigger    spread(W)mFully  extended:7.1,intermediately extended:4.8 Tail    slewing radiusmm3900 Main    boom lengthm11.4    - 43.0 Boom    angle°-2    - 80 jib    lengthm9.2,14.6Low-mounted,    open-typeOffset°5,25,45

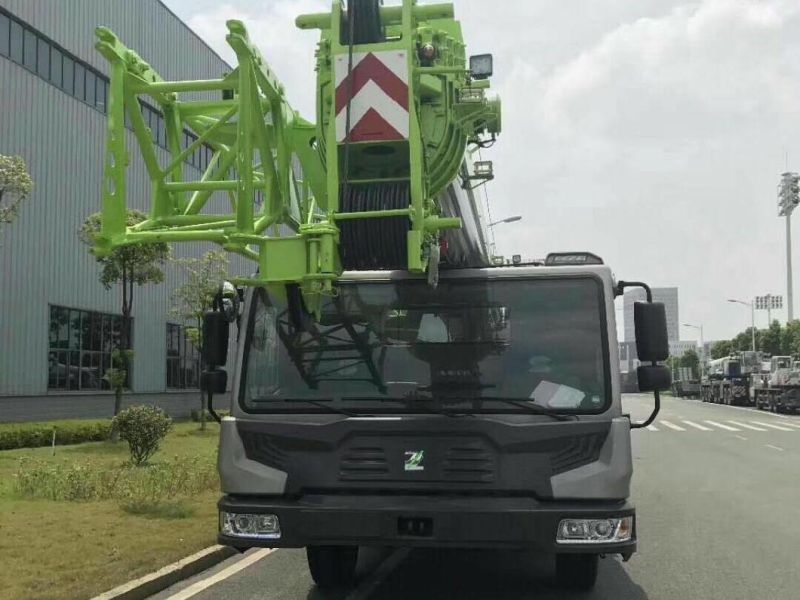

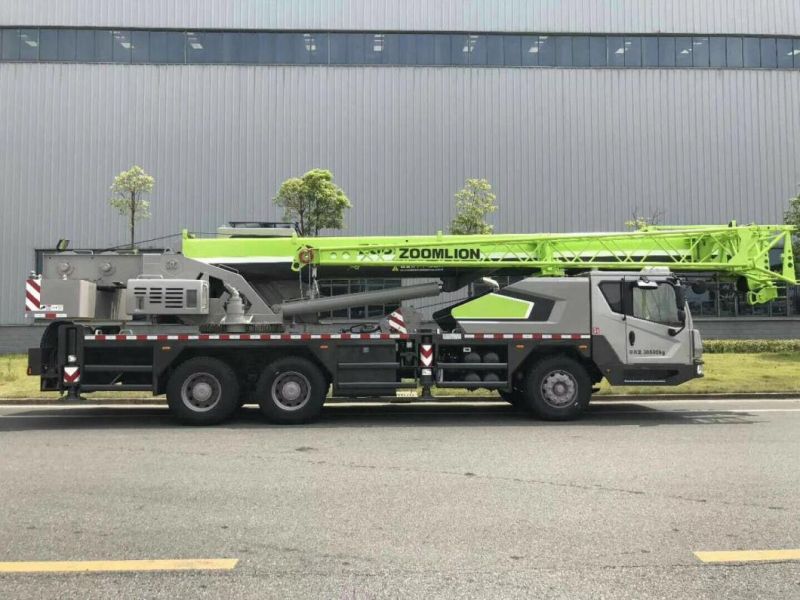

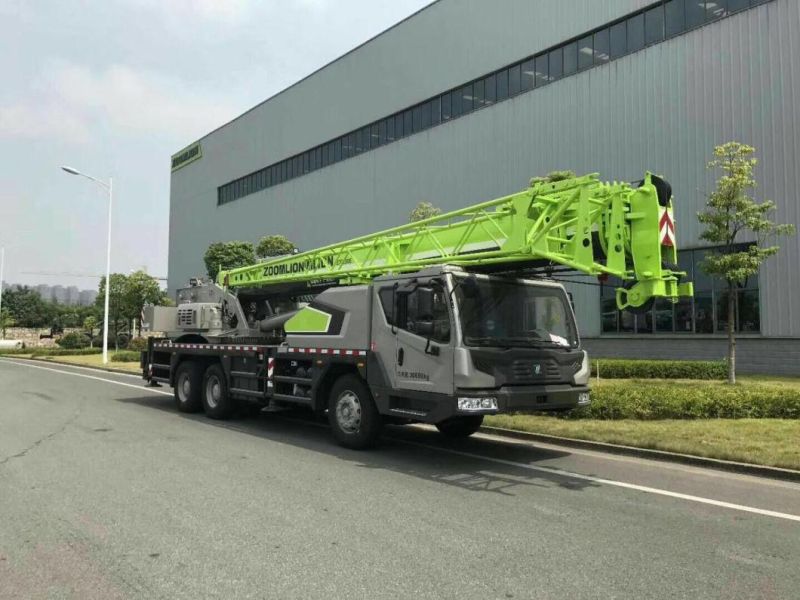

    Detailed PhotosBrand New 55 Ton Mobile Truck Crane Qy55V532 with Good PriceBrand New 55 Ton Mobile Truck Crane Qy55V532 with Good PriceBrand New 55 Ton Mobile Truck Crane Qy55V532 with Good Price Packaging & Shipping
