• Model NO.：Zcc3000
• Operation Weight：242 Ton
• Rated Power：247 Kw
• Transport Package：Nude Package
• Specification：13.7*3*3.22 m
• Trademark：Zoomlion
• Origin：Hunan, China
• HS Code：84295212
• Production Capacity：2000PCS,Year

Basic Info.

Model NO. Zcc3000 Operation Weight 242 Ton Rated Power 247 Kw Transport Package Nude Package Specification 13.7*3*3.22 m Trademark Zoomlion Origin Hunan, China HS Code 84295212 Production Capacity 2000PCS/Year

Product Description

Zoomlion 300 Ton Heavy Duty Cycle Zcc3000 Dragline Hydraulic Crane
 Product Description

It is equipped with five working conditions: main boom, light main boom, fixed jib, luffing jib, and shield, with a wide range of application scenarios.

Adhering to the modular design, the main engine is self-loading and unloading, the boom is suspended installation; the rope is synchronized, the mast is synchronized, and the assembly efficiency is the best in the same level of products.

The maximum transportation width is less than 3M, and the road transportation is good.

ZCC3000 fixed jib, luffing jib, shield jib top section arm and standard section are common, which can reduce the purchase cost for customers as much as possible and improve the utilization rate of the boom.

ZCC3000 adopts domestic well-known mature products of electrical and hydraulic components. Most of the parts are common to other tonnage crawler cranes of Zoomlion. The spare parts are easy to obtain and the product maintenance is convenient.

Technical Parameters

Model	ZCC3000
Max. lifting weight	300 ton
Max. lifting moment	1500 t.m
Max. lifting height	93 /106.5 m
Engine brand	Weichai
Engine power	247/1900 kw/rpm
Operation weight	242 ton
Max. shipping weight per piece	43.5 ton
Max. shipping dimension	13.7*3*3.22 m

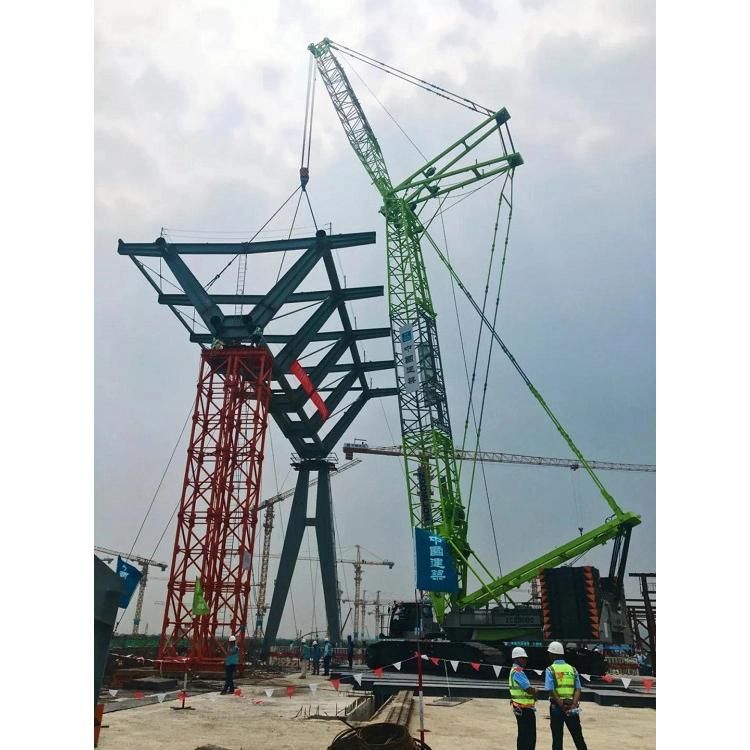

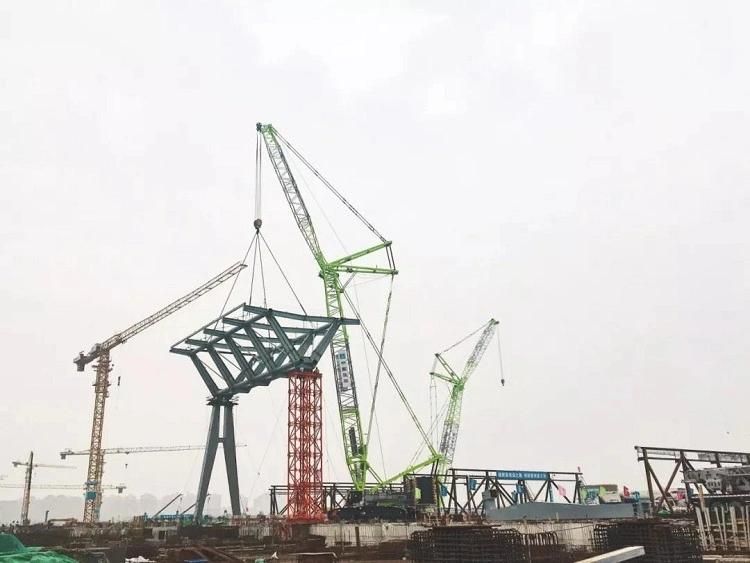

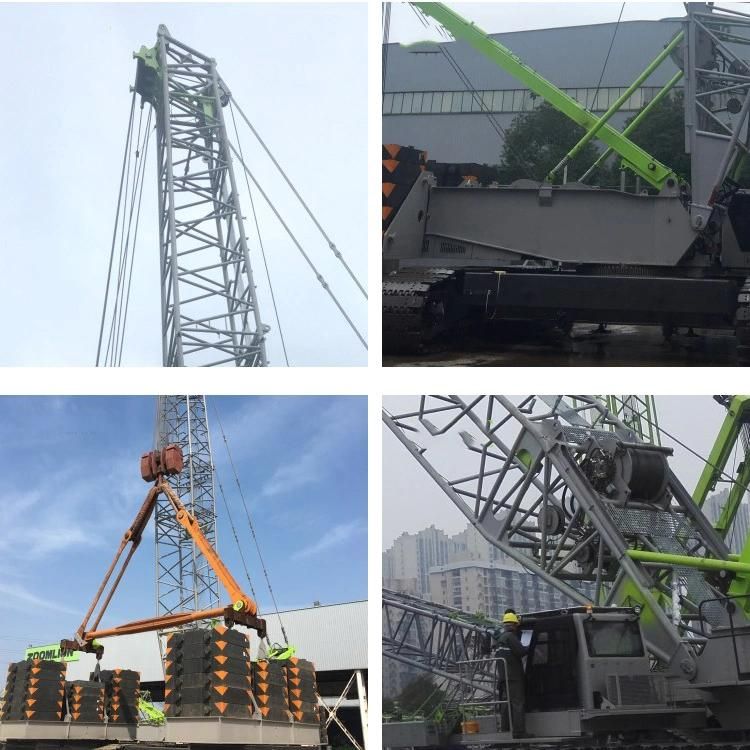

Product Pictures





Company Information
