• Model NO.：XCT100
• Maximum Lifting Weight：10000kgs
• Shaft Number：5
• Crane Jib：Six-Arm
• Type：Telescopic
• Max Lifting Capacity：100ton
• Rated Power：176kw , 316kw
• Total Weight：54990kg
• Length：15600mm
• Width：3000mm
• Height：3870mm
• Speed：90km,H
• Cabin：Full Cabin
• A/C：Yes
• Outrigger：New K Type
• Warranty：1 Year
• Aftersales Service：Oversea Service, Free Spare Parts, etc
• Control System：Pilot Control
• Certificate：ISO CCC
• Transport Package：Roro Ship , Bulk Ship

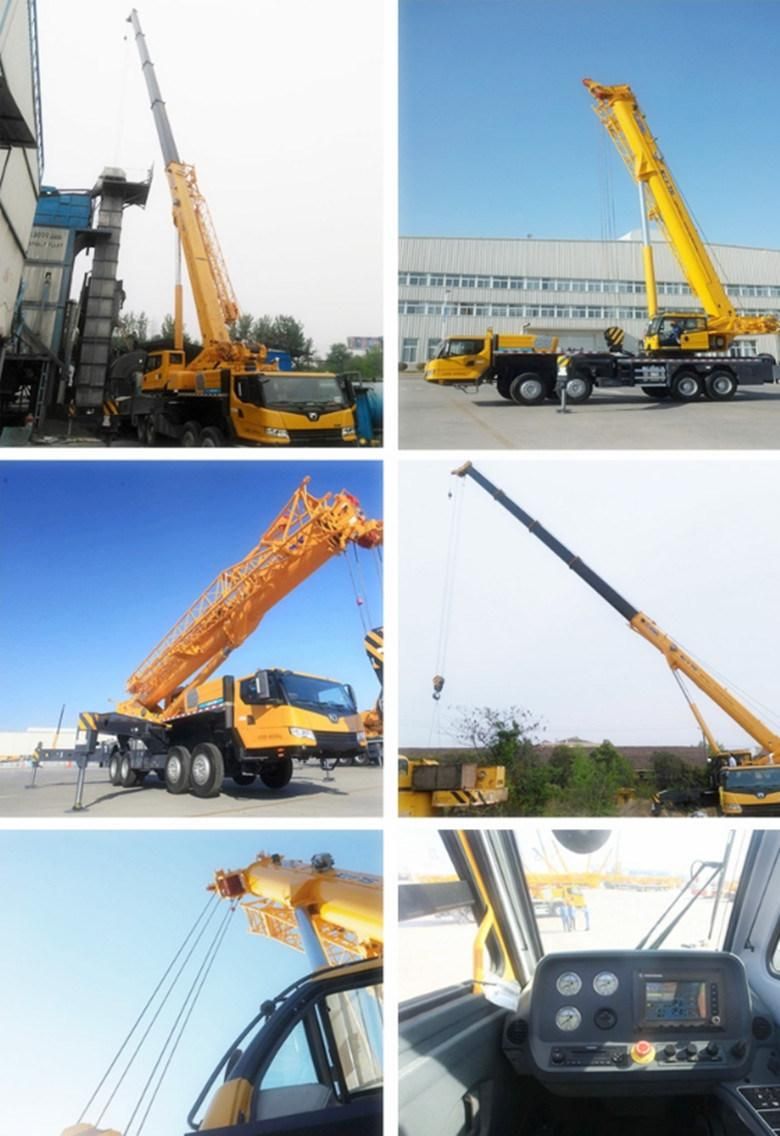

• Specification：Mobile crane
• Trademark：Super-above
• Origin：Jiangsu, China
• HS Code：8705109100
• Production Capacity：10000units,Year

DescriptionUnitParameter valueOverall lengthmm15600Overall widthmm3000Overall Heightmm3870Wheel Basemm1920+3500+1420+1505Track(front/rear)mm2449/2315Front/Rear overhangmm2650/2765Front/Rear extensionmm1840/0Total vehicle mass in travel configurationkg55000Axle load   1st and 2nd Axlekg100003rd and 4th Axle130005th Axle9000Engine Model WP6G240E330M906LA.E3A/2WP12.430NEngine rated powerkw/(r/min)176/2300190/2200316/1900Engine rated torqueN.m/(r/min)860/1200-17001000/1200-16002060/1000-1400Max. travel speedkm/h90Min. turning diameterm23Min. ground clearancemm326Max. grade ability%45Approach angle°18Departure angle°13Braking distance (at 30 km/h, full load )m≤10Oil consumption per 100kmL70Noise level at seated positiondB(A)≤90Exterior noise leveldB(A)≤88
