150 Ton Luffing Boom Crawler Cranes Zcc1500V

Newindu Construction Engineering (Shanghai) Co., Ltd.
  • After-sales Service：1 Year Warranty
  • Max. Lifting Height：64+31meters
  • Rated Loading Capacity：150 Ton
  • Certification：ISO9001, CE, RoHS, BV
  • Condition：New
  • Warranty：1 Year Warranty

Base Info

  • Model NO.：ZCC1500V
  • Transport Package：Nude Packing
  • Specification：12460*3000*3270mm
  • Trademark：NEWINDU
  • Origin：China
  • Production Capacity：300pieces,Year

Description

ModelZCC1300ZCC1500VZCC1800HWGMax. lifting capacity130 t150 t180 tMax. lifting height92 m95 m101 mMax. lifting moment717.6 t.m906.5 t.m1040 t.mLength of main boom19~76 m19~76 m20~83 m Heavy duty   86~92 m Light dutyMax. gradeability30%30%30%Max. travel speed1.3 km/h1.1 km/h1.2 km/hDeadweight of crane with basic boom121.8 t (Not including hook)141 t (Including hook)158 t (Not including hook)Counterweight47 t51.4 t57 tMax. transport single unit11.5*3.0*3.0 m / 33t12.46*3.0*3.27 m / 35t Engine power209/2000 kW/r/min247/2000 kW/r/min247/2000 kW/r/minMax. hoist rope speed117 m/min (main winch)140 m/min (main winch)110 m/min (main winch)

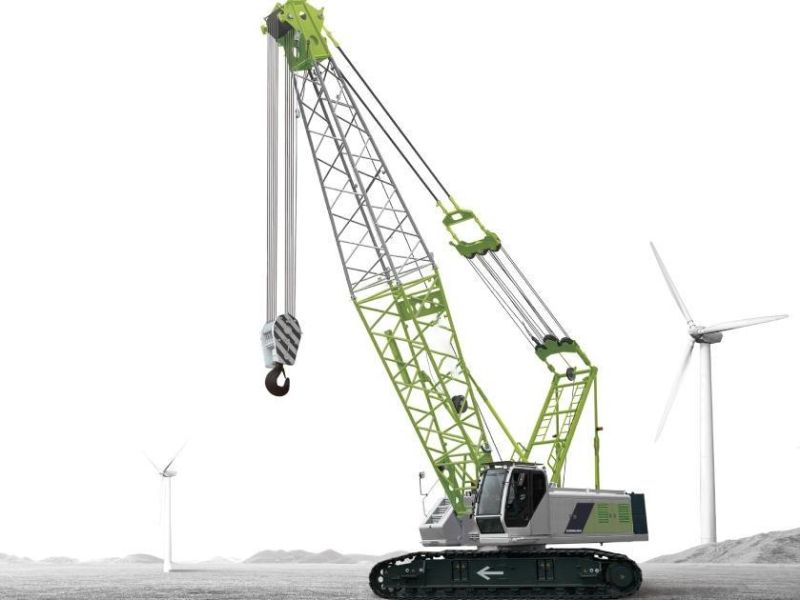

Product image
150 Ton Luffing Boom Crawler Cranes Zcc1500V150 Ton Luffing Boom Crawler Cranes Zcc1500V150 Ton Luffing Boom Crawler Cranes Zcc1500V150 Ton Luffing Boom Crawler Cranes Zcc1500V
