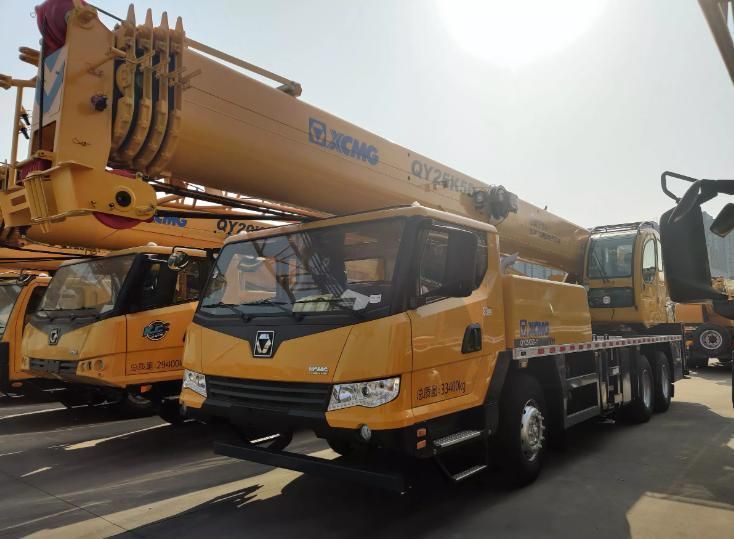

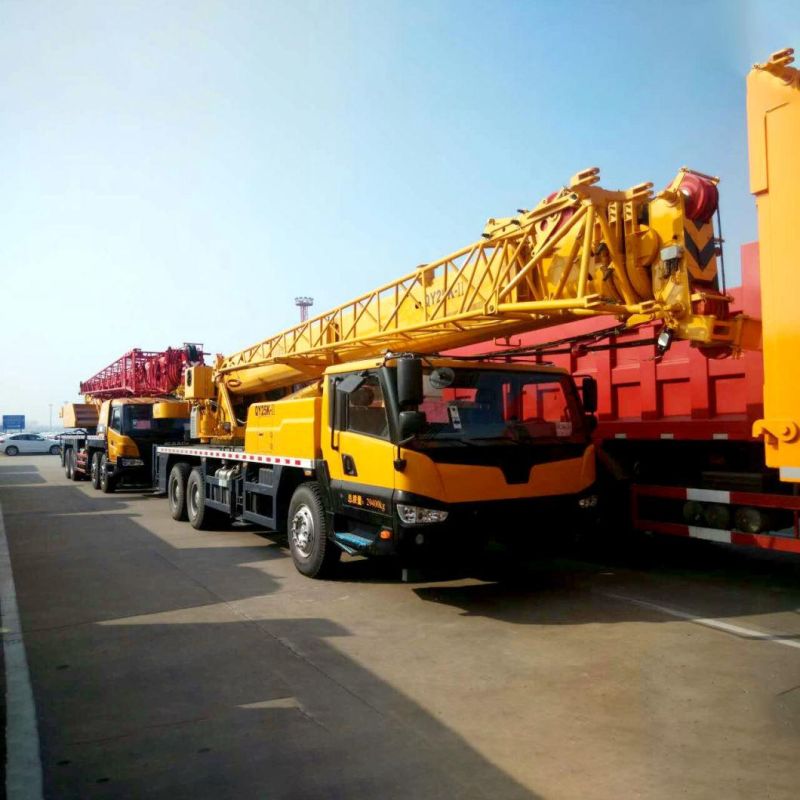

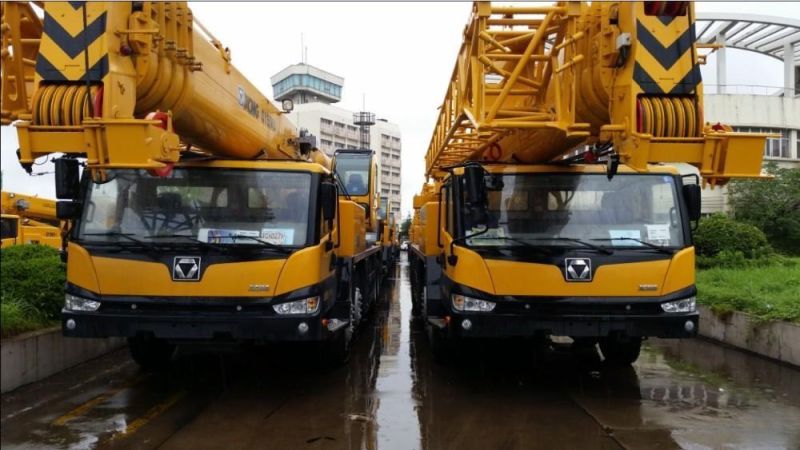

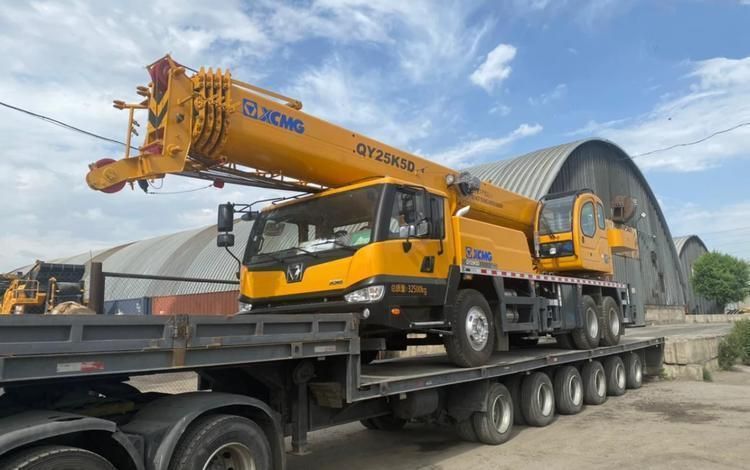

China Top Brand Xuzhou Official Xmg Latest Hydraulic Mobile Crane in Stock Five Section Boom EXW 25 Ton Truck Crane (QY25K5D)
Maxizm Construction Machinery (Qingdao) Co., Ltd.- After-sales Service：Online Support
- Warranty：One Year Warranty
- Certification：CE, ISO9001
- Condition：New
- Maximum Lifting Height：>40m
- Maximum Lifting Weight：>16t
Base Info
- Model NO.：QY25K5D
- Crane Jib：Five-Arm
- Type：Straight Arm
- Emission：Eurov
- Engine Brand：HOWO
- Rated Power：235 Kw
- Max. Lifing Height：48.5 M
- Max. Lifing Moment of Basic Boom：1005 Kn.M
- Transport Package：Nude Packing
- Specification：12780*2500*3400mm
- Trademark：XMG
- Origin：Xuzhou, China
- HS Code：8705109200
- Production Capacity：100units,Month
Description
Overview
Product Description
Power Engine model SC8DK280Q3/WD615.329(domestic III) Engine rated power kW/(r/min) 206/2200 213/2200 Engine rated torque N.m/(r/min) 1112/1400 1160/1400 Travel Max. travel speed km/h 75 Min. turning diameter m 21.5 Min. ground clearance mm 275 Approach angle ° 16 Departure angle ° 13 Max. grade ability % 30 Fuel consumption for 100km L ≈37 Main performance Max. rated total lifting capacity T 25 Min. rated working radius mm 3000 Turning radius at turntable tail m 3.065 Max. lifting torque kN.m 1010 Base boom m 10.7 Fully extended boom m 34.19 Fully extended boom+ jib m 42.15 Longitudinal outrigger span m 5.14 Lateral outrigger span m 6
