• Model NO.：TBL-12
• Type：Folding
• Load Capacity：150kg-200kg
• Lifting Height：4m-14m
• Power：Diesel,Electrical
• Rotation：360 Degree
• Lifting Speed：50-90mm,s
• Motor：3kw
• Dimension：5400×2000X3100mm
• Basket Capacity：250kg
• Max. Horizontal Extent：4000mm
• Travel Speed：15-30km,H
• Transport Package：Standard Export Packing
• Specification：CE
• Trademark：MORAL,OEM
• Origin：Shandong, China
• HS Code：842890
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. TBL-12 Type Folding Load Capacity 150kg-200kg Lifting Height 4m-14m Power Diesel/Electrical Rotation 360 Degree Lifting Speed 50-90mm/s Motor 3kw Dimension 5400×2000X3100mm Basket Capacity 250kg Max. Horizontal Extent 4000mm Travel Speed 15-30km/H Transport Package Standard Export Packing Specification CE Trademark MORAL/OEM Origin Shandong, China HS Code 842890 Production Capacity 5000PCS/Year

Product Description

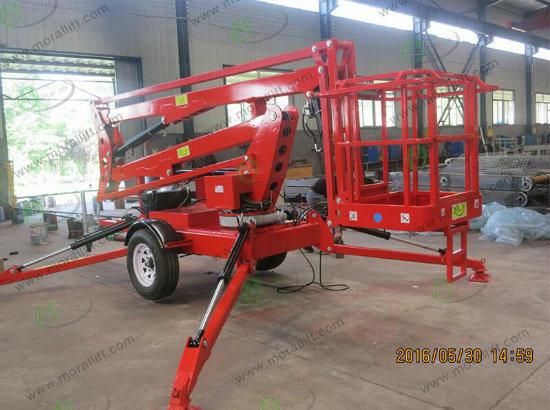

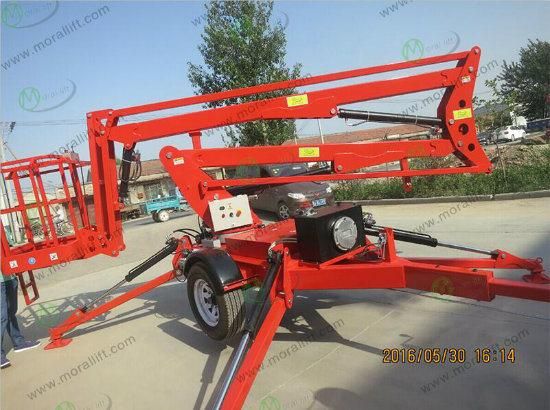

Battery Powered Trailer Mount Articulating Boom Lift
(TBL-12)

Features
1. Platform

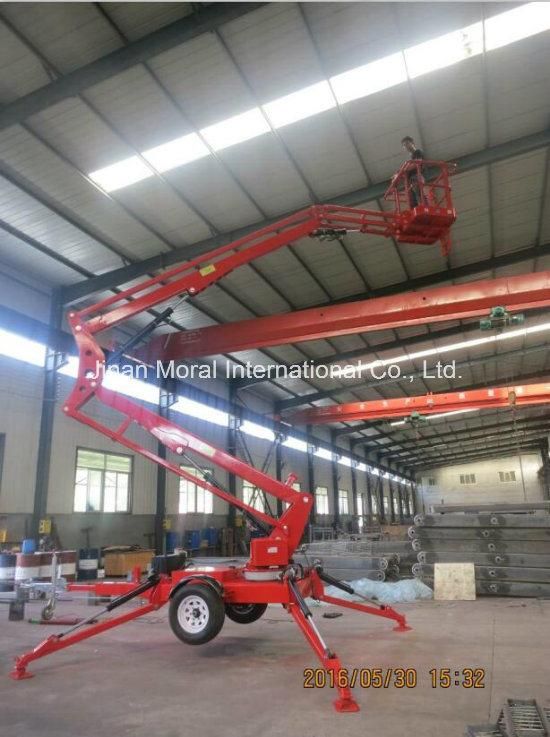

     Its platform can lift up, extend horizontally, or turn around 360 degrees to stride across certain obstacles for work. So it can realize multipoint work in wide scope.
2.Legs
    With 4 full-automatic hydraulic outriggers to steady the whole machine at any kind of ground conditions. When the road is uneven, four full-automatic legs or single leg can support the machine.
3. Drive
    It can be diesel or storage battery according to customer's requirements.
4. Material
     Adopt structural steel with high quality, handicraft for single-side welding and double-side molding,
5. Hydraulic cylinder:
    Original import or domestic joint venture hydraulic cylinder, with high quality, improving the reliability and prolonging the work time,
6. Aloft work platform
    Equipped with balanced valve, automatic pressure maintaining, etc.
7. Advantages
   The trailer boom lift is safe, reliable and durable. This type of cargo-lifts with characteristics of flexible moving, smoothly lifting, big convenient operation and so on.

1 Diesel engine driven, , lift automatically, be operated both in the up platform and down  with Diesel engine
2 With articulating boom structure, be rotary to 360°, having the special function which  scissors type and telescope type have not --to work across the obstacles.

3 With 4 full-automatic hydraulic outriggers to support the balance of whole machine,  equipped with the security system in
case of the emergency.

4 Available for 2 persons working ,Widely used for cleaning the windows, installing and maintaining  of the lights,
 decorating and repairing of the factory house, and some other operations of high-altitude.

Application
Trailer boom lifts are widely used in highways, boat yards shopping walls, stadiums, dock, station, marketplaces, gymnasiums and residential property, workshop, residential property, mining workshops and any other isometric maintenance operation of complex high-altitude construction and other large range homework place.


Model	TBL-12
Max platform height(m)	12
Max. horizontal extent(m)	4
Rotation	360°
Basket capacity(kg)	250kg
Dimensions (mm)	5400×2000X3100
Total weight(kg)	2200
Lifting speed(m/s)	0.05-0.09
Work pressure (M pa)	10
Travel speed(km/h)	15-30
Wind-proof	≤5
Motor	115V/230V/460V 3KW
Delivery time	Within 20days after the confirmation of the purchase order
