API 2200t Floating Crane Forged Sheave
Changzhou Baoxin Metallurgy Equipment Manufacturing Co., Ltd.- Certification：GS, CE, ISO9001: 2000
- Condition：New
- Application：Workshop, Coal Stack, Port, Wharf, Construction Site, Mine, Container Usage
- Operation Form：Crane Console
- Maximum Lifting Weight：>200t
- Sling Type：Wire Rope
Base Info
- Model NO.：OD. 1000
- Installation：Assembled
- Power Source：Electric
- Type：Rotary
- Material：Steel
- Usage：Lifting Equipment Parts
- Certificate：ISO9001
- Process：Forged
- Others：Customized in Drawing or Samples
- Tower Crane Type：Slewing Tower Crane
- Main Girder Form：Single Girder

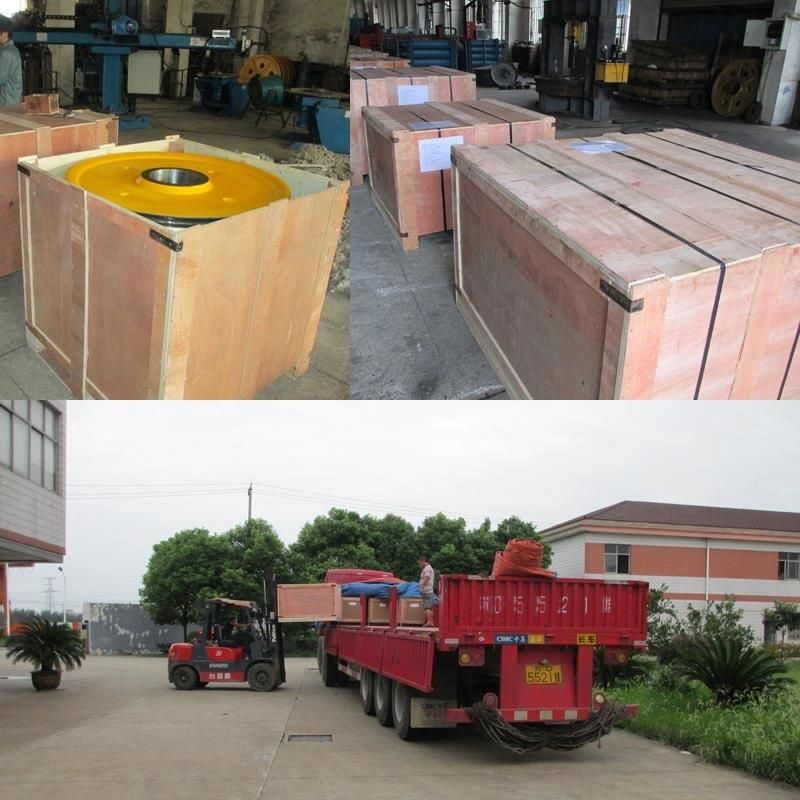

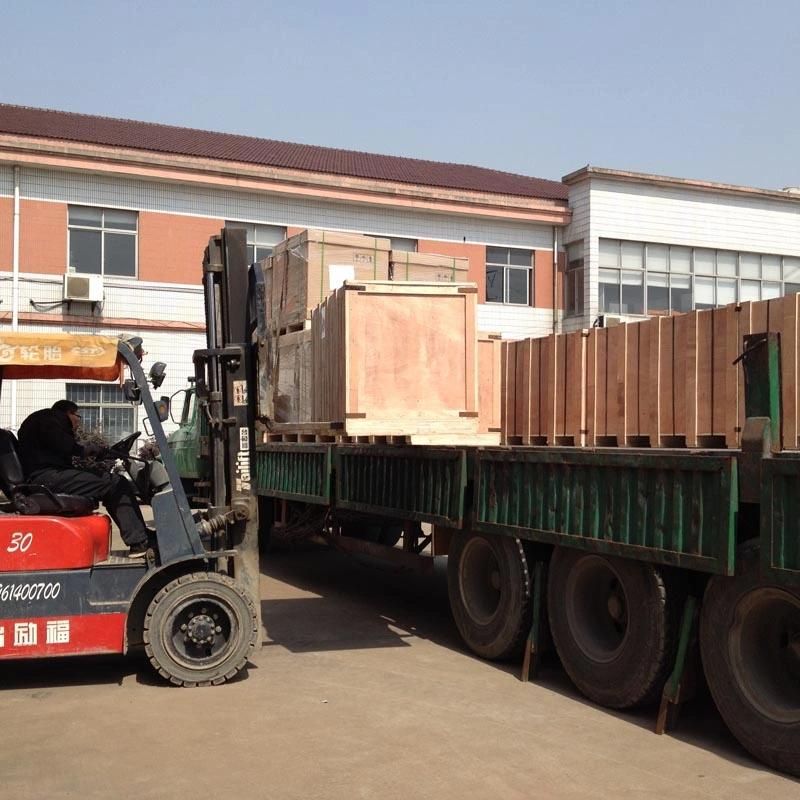

- Transport Package：Plywood Case
- Specification：300mm-2000mm
- Trademark：Baoxin
- Origin：Changzhou, China
- HS Code：84835000
- Production Capacity：300PCS One Month
Description
| Code | Wire rope diameter(mm) | Main dimension(mm) B | |||||
| Groove diameter | Outside diameter | R | Groove Width | Shaft diameter | Bearing hole width | ||
| BX1251 | 10-14 | 355 | 400 | 7 | 37 | 55 | 64 |
| BX2251 | >14-19 | 450 | 510 | 10 | 50 | 80 | 74 |
| BX3251 | >19-23.5 | 560 | 631 | 12 | 60 | 95 | 90 |
| BX4251 | >23.5-30 | 710 | 800 | 15 | 73 | 130 | 106 |
| BX5251 | >23.5-30 | 900 | 1012 | 19 | 92 | 160 | 128 |
| BX6251 | >30-37 | 1000 | 1126 | 22 | 104 | 160 | 128 |
| BX7251 | >43-50 | 1250 | 1402 | 26 | 123 | 190 | 148 |
| BX8251 | >50-58 | 1400 | 1572 | 29 | 135 | 190 | 148 |

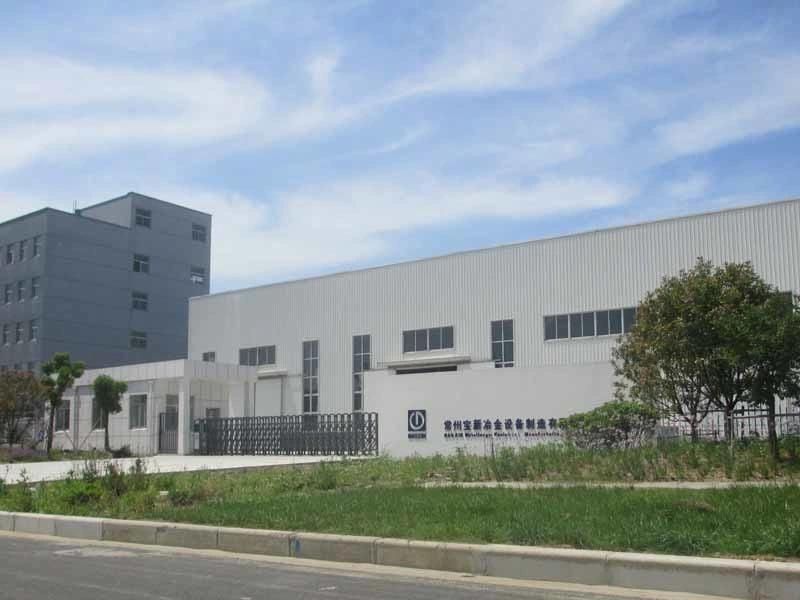

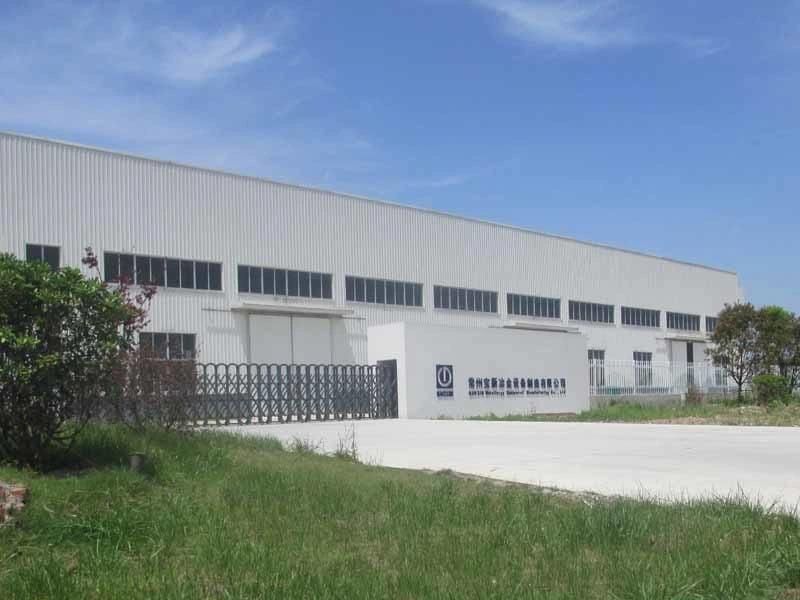

About Us

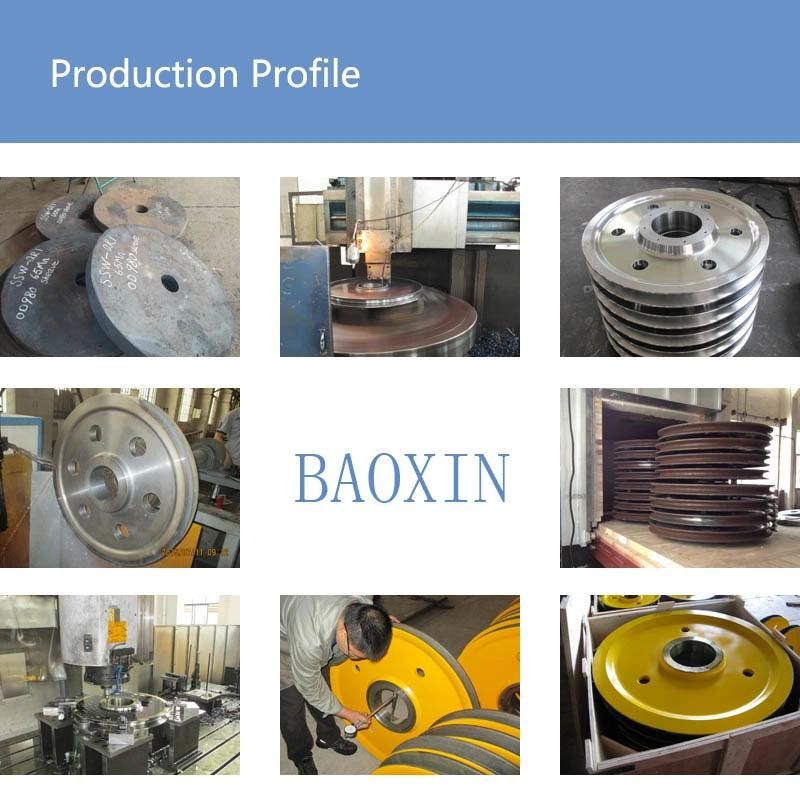

As a company of industries and trading integration with ISO 9001-2008 Certificate, Changzhou Baoxin Metallurgy Equipment Manufacturing Co., Ltd. Has been in manufacturing material handling equipment parts for many years, with professional experience.
Our Service:
If you are interested in any of our products, please contact me freely! Warmly Welcomed your visit to our factory in China, OEM service will be ok.
