Sac1000 100 Ton All Terrain Crane Truck Crane Mobile Crane for Sale
Evangel Industrial (Shanghai) Co., Ltd.- Certification：CE, ISO9001
- Condition：New
- Maximum Lifting Height：>40m
- Maximum Lifting Weight：>16t
- Shaft Number：3
- Crane Jib：Five-Arm
Base Info
- Model NO.：SAC1000
- Type：Folding
- Longest Boom + Jib：43 + 15.25
- Rated Power/Revolution Speed：350 Kw , 1800 Rpm
- Boom Length：1320 Kn.M
- Swing Speed：2 R,Min
- HVAC in up Cab：Cooling and Heating
- Weight：50000kg
- 50000 Kg Front Axle Load：20000 Kg
- Transport Package：Regular Package
- Specification：14000*2800*4000kg
- Origin：China
- Production Capacity：50000
Description
Basic Info.
Model NO. SAC1000 Type Folding Longest Boom + Jib 43 + 15.25 Rated Power/Revolution Speed 350 Kw / 1800 Rpm Boom Length 1320 Kn.M Swing Speed 2 R/Min HVAC in up Cab Cooling and Heating Weight 50000kg 50000 Kg Front Axle Load 20000 Kg Transport Package Regular Package Specification 14000*2800*4000kg Origin China Production Capacity 50000Product Description
SAC1000 100 ton All-terrain CraneProduct Description

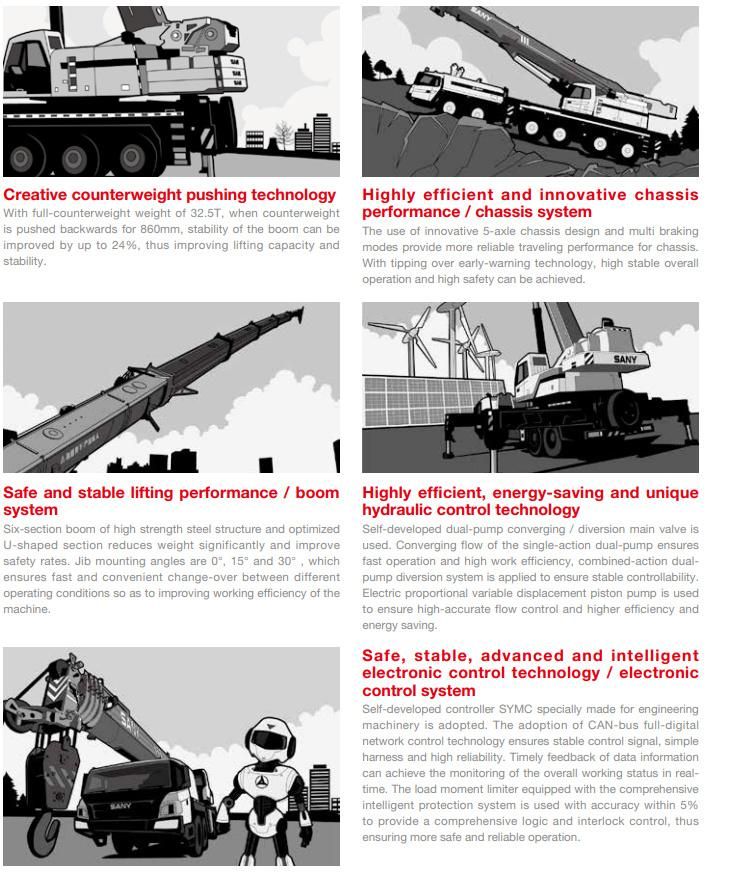

Efficient Power System
Single-engine power system is adopted, providing power for superstructure through mechanical transmission, highly reliable with low fuel consumption and easy maintenance.
Outstanding Lifting Capacity
7 sections boom, with max. boom length of 63m and jib length of 33.5m;
Max. lifting torque: 4320kN·m.
Mobile and Flexible Carrier
Total crane width of 2.8m, 5-axle all terrain carrier. The carrier is mobile and flexible with good traveling passing performance.
Safe Control System
Comprehensive intelligent control system and fault diagnosis system monitor and feedback data in real-time.

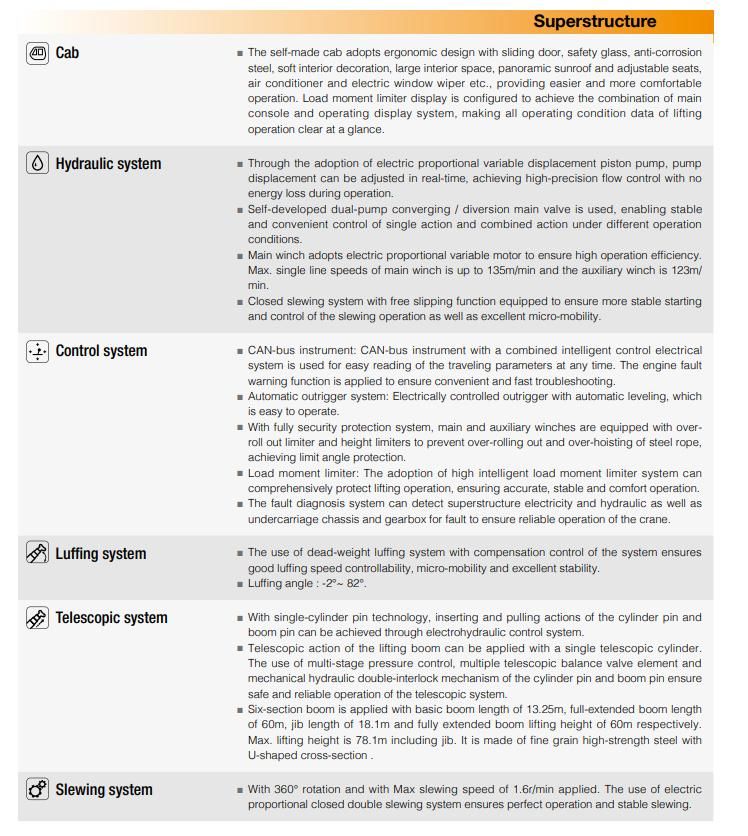

Energy-saving Hydraulic System
Dual pump converging / diverging intelligent speed regulation technology is adopted. With graded control of speed and electric proportional pump displacement, it saves energy up
| Max. lifting capacity | 100 t |
| Overall length | 14000 mm |
| Overall width | 2800 mm |
| Overall height | 4000 mm |
| Axles | 5 |
| Overall weight | 50000 kg |
| Front axle load | 20000 kg |
| Rear axle load | 30000 kg |
| Rated power | 350 kw / 1800 rpm |
| Rated torque | 2300 N·m/1080 rpm |
| Max. traveling speed | 90 km/h |
| Min.turning radius | 8.5 m |
| Min. ground clearance | 300 mm |
| Approach angle | 21 ° |
| Departure angle | 21 ° |
| Braking distance(30km/h) | 10 m |
| Max. gradeability | 60% |
| Min.lifting radius | 3 m |
| Tail swing radius of superstructure | 4450 mm |
| Boom section | 7 |
| Max. lifting moment-Base boom | 4320 kN.m |
| Max. lifting moment-Full-extend boom | 1852 kN.m |
| Max. lifting moment-Full-extend boom+jib | 1320 kN.m |
| Length-Base boom | 12.1 m |
| Length-Full-extend boom | 63 m |
| Length-Full-extend boom+jib | 78.5 m |
