• Model NO.：SQ8SK3Q
• Type：Truck Mounted Crane
• Max Lifting Capacity：8000 Kg
• Max Lifting Moment：20t.M
• Recommend Power：27kw
• Max Oil Flow of Hydraulic System：55L,Min
• Weight：3315kg
• Installation Space：1200mm
• Tower Crane Type：Under Slewing Cranes
• Sling Type：Wire Rope
• Main Girder Form：Single Girder
• Transport Package：Comply with Export Packaging Requirements
• Specification：ISO
• Trademark：XCMG
• Origin：Xuzhou, Jiangsu, China
• HS Code：87051022
• Production Capacity：10000,Year

Overview Product Description

Optional parts:

* Moment limited device
*Remote control equipment
*Anti-overwind magnet valve
*High seat on column
*Assistant stabilizer leg

1.Throttle Control System
Changing the form of previous manipulation and throttle operation individually,Realization of the bilateral handle synchronous and driving throttle acceleration and deceleration automatically, due to the speed change steady,it can easily to carry out the lifting work.

2.End position automatic hook device
Maximum savings in preparation time before and after operation, to ensure that customer's vehicle could be in a driving state in the shortest time, and prevent crane damage accident caused by hoist swing to enhance the safety of driving.

3.Hoisting overwinder device
If a user is negligent or unfamiliar with the operation of lifting hooks,the hoisting overwinder device will stop hook raise in time, to prevent the safety of personal and property caused by fracture of wire rope.

4.Slewing locking device
Slewing locking device can ensure that the lifting arm does not sway because of the centrifugal force during the driving and steering process of the vehicle,to avoid all kinds of accidents caused by swaying.

5.Dual pump converging
The hydraulic system adopts dual high pressure gear pump, multi-way valve hoisting joint to realize the converging, to improve the speed of winch, at the same time, it can realize the compound action of crane.

6.Torque limiter
It can select torque limit overload protection device to prevent users because of negligence or unfamiliar with the lifting operation principle of overload operation, thereby causing the vehicle rollover and crane damage accidents.


Product Parameters

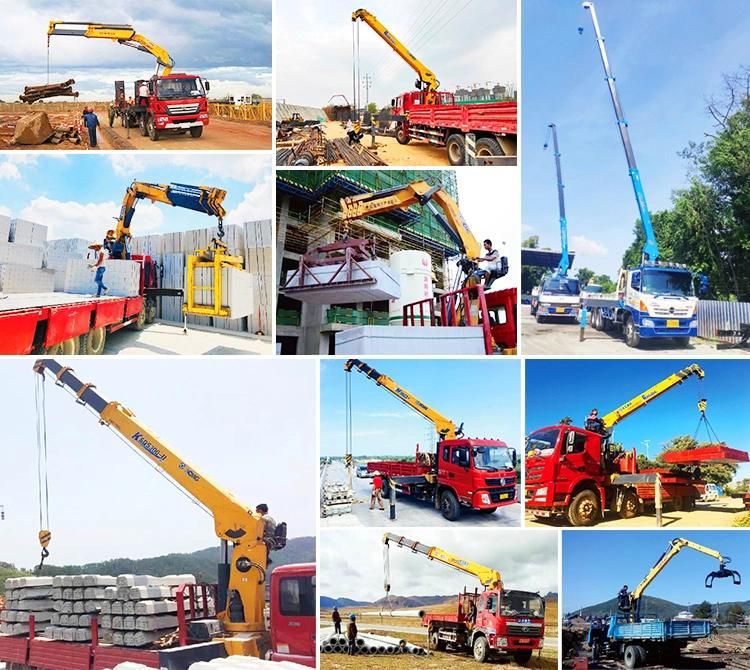

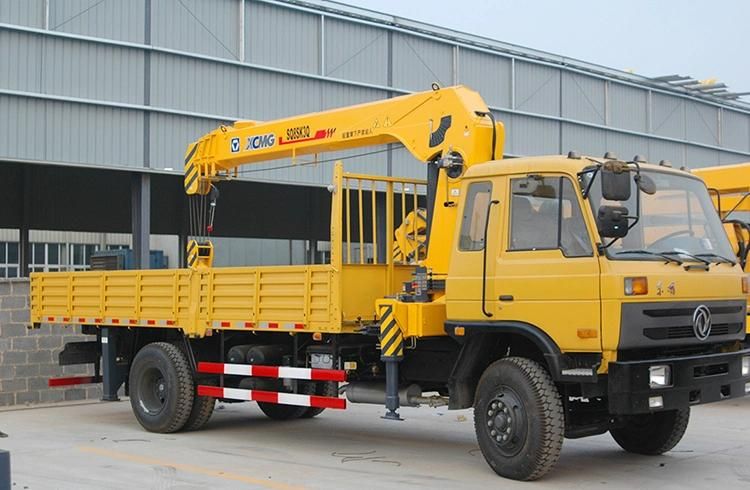

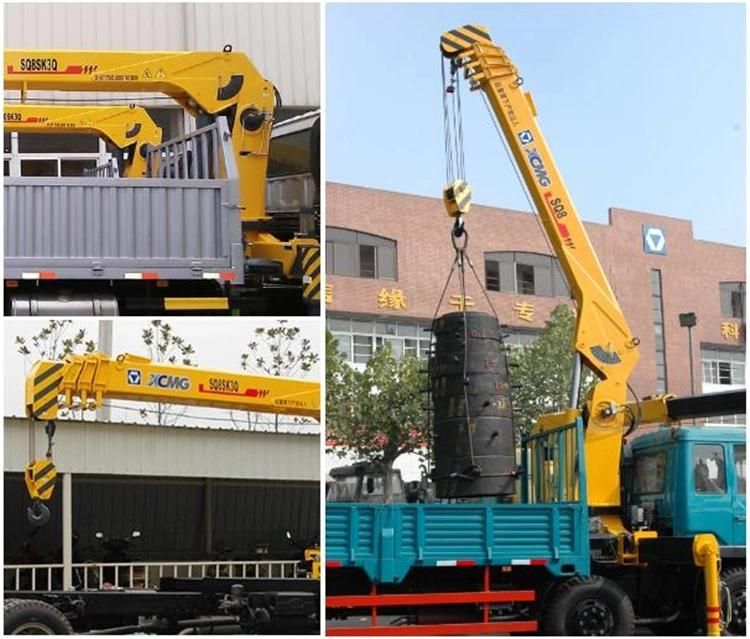

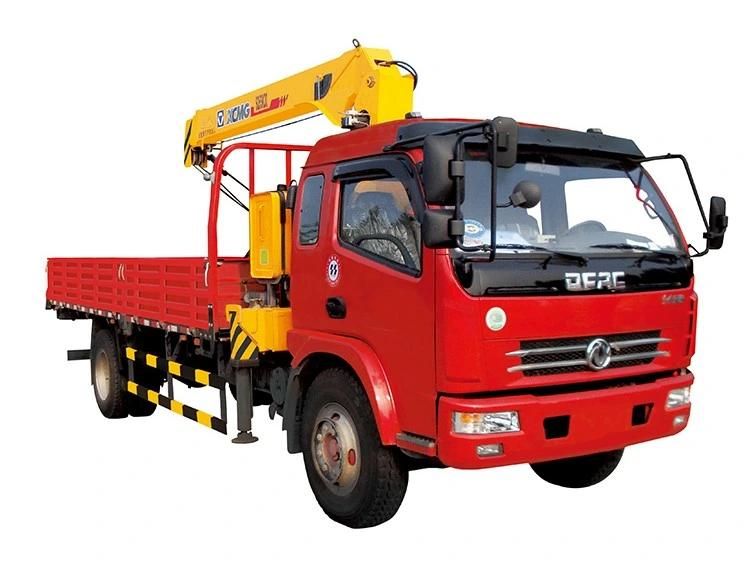

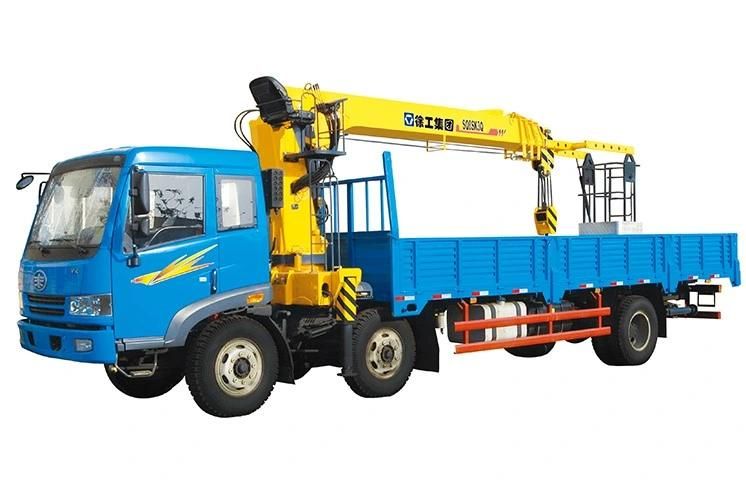

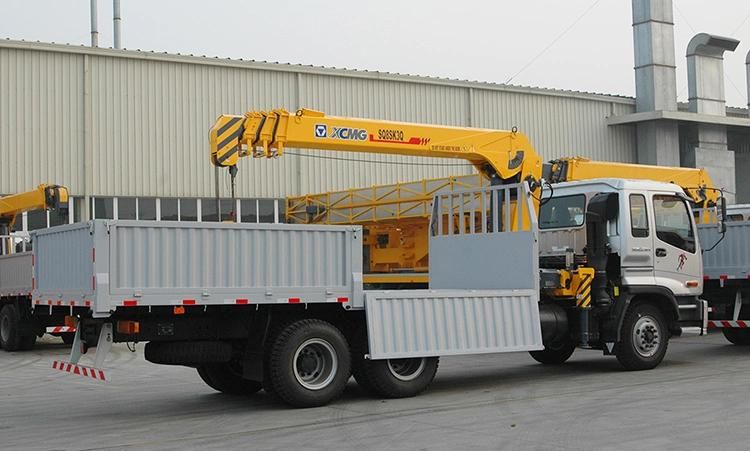

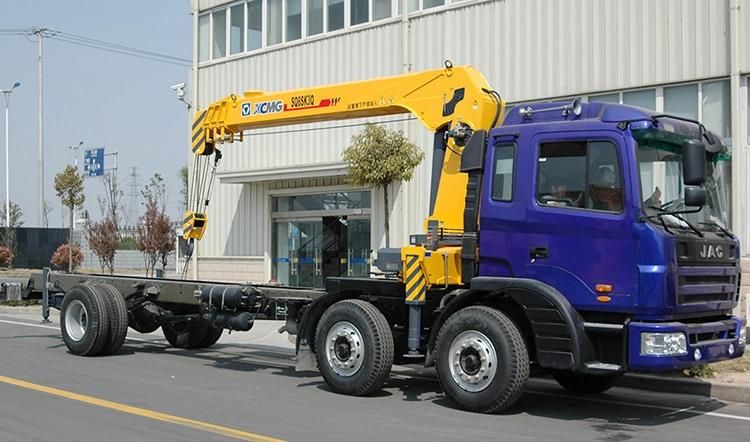

ModelXCMG SQ8SK3QUnitMax Lifting Capacity8000kgMax Lifting Moment20T.MRecommend Power28kwMax Oil Flow of Hydraulic System55L/minMax Pressure of Hydraulic System27MPaOil Tank Capacity160LRotation AngleAll Rotation Crane Weight3300kgInstallation Space1200mmSQ8SK3Q Lifting capability diagramWorking radius (m)2.54.57911.5Lifting capacity (kg)80004400250017501100Product Show



Company Profile



FAQ

1: What kind terms of payment can be accepted?

A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted

2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,

3: What about the delivery time?
A: 30 days after receiving the deposit.

4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.

5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
