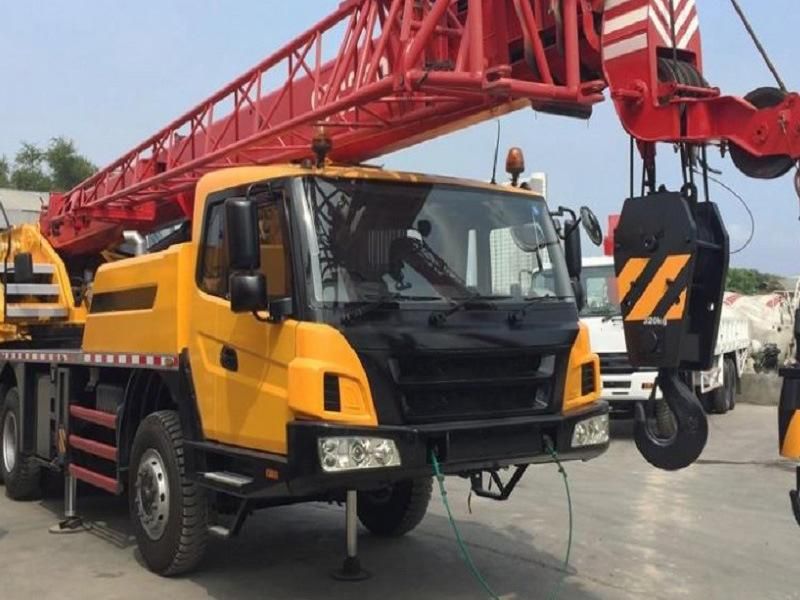

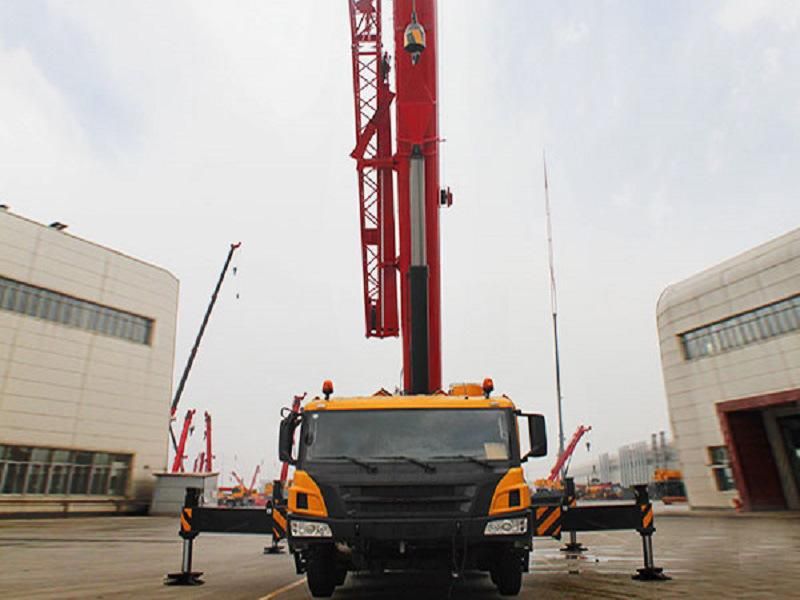

Cheaper Price China Brand New Stc250c5 25 Ton Mobile Truck Crane Sale in Dubai
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- After-sales Service：Yes
- Warranty：1 Year or 2000 Working Hours
- Certification：GS, RoHS, CE, ISO9001, ISO9001: 2000
- Condition：New
- Maximum Lifting Height：>40m
- Maximum Lifting Weight：>16t
Base Info
- Model NO.：STC250C5
- Shaft Number：3
- Crane Jib：Four-Arm
- Type：Straight Arm
- Color：Red
- Application：Construction Usage
- Tower Crane Type：Under Slewing Cranes
- Sling Type：Wire Rope
- Main Girder Form：Single Girder
- Power Source：Hydraulic
- Moving Type：Wheel
- Span：6.1 M
- Engine：Weichai
- Transport Package：Nude, Suitable for Shiping
- Specification：ISO
- Trademark：SANI
- Origin：Hunan, China
- HS Code：84269100
- Production Capacity：100 Sets,Month
Description
Model

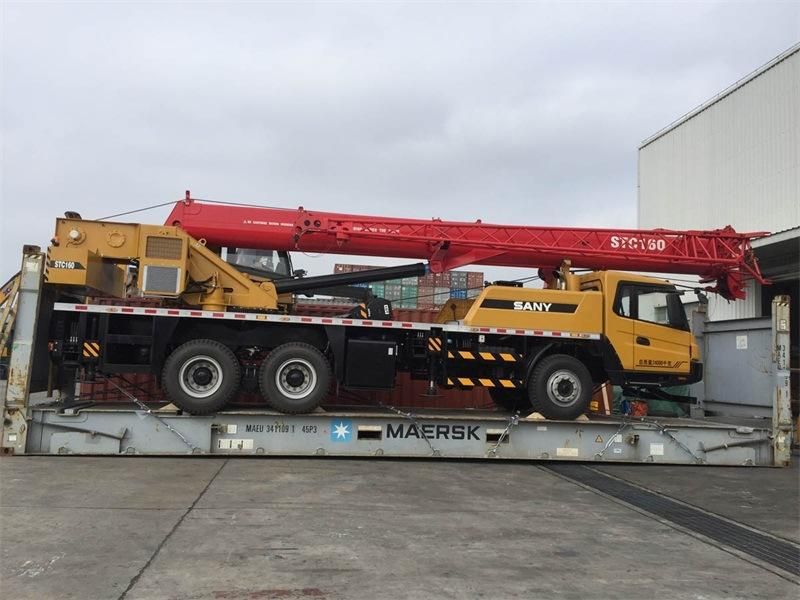

STC160
STC250C4
STC250C5

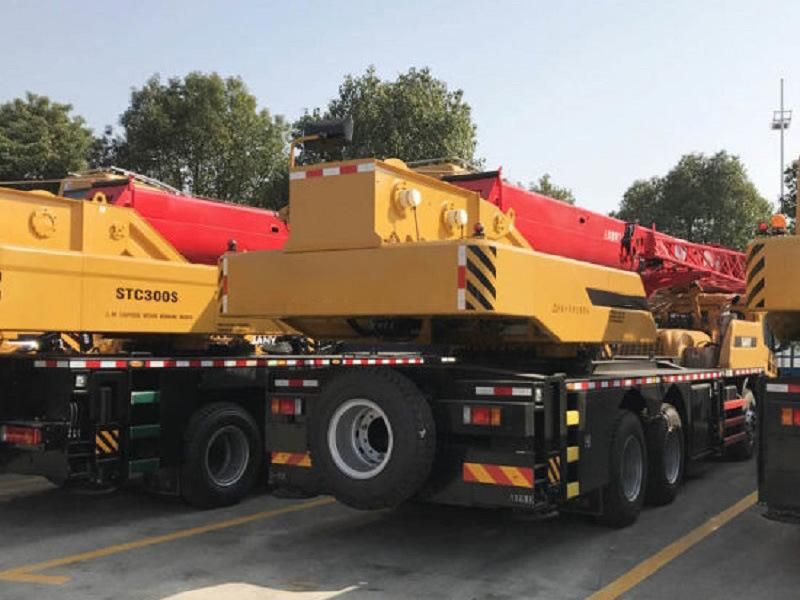

STC300S
STC300T5
STC500
Operation
Full Counterweight
2.9T
5T
5.6T
5.5T
5.9T
3.5T
Max Lifting Capacity
16T
25T
25T
30T
30T
50T
Max Boom Length
32m
35m
41m
40.5m
42.5m
43m
Max Jib Length
8m
8m
8m
8m
8m
16m
Max Lifting Height
40.5m
43.5m
49m
49m
51m
59.2m
Max Lifting Moment
730kN·m
1078kN·m
1063kN·m
1029kN·m
1158kN·m
1774kN·m
Traveling
Available Districts
RHD countries
LHD & RHD countries
LHD & RHD countries
LHD & RHD countries
LHD & RHD countries
Euro 5 available in
Pan-Russia
Engine Model
(Emission Standard)
SDEC SC7H260Q3 (CN 3)
ISLe290 30 (Euro 3)
ISLe290 30 (Euro 3)
Euro 3
DF Cu-mins ISLe290 30 (Euro 3)
Euro 3 / Euro 5
Max Gradeability
40%
40%
42%
0.4
0.42
0.4
Max Traveling Speed
80km/h
85km/h
85km/h
89km/h
90km/h
85km/h
Wheel Formula
6×4×2
6 x 4
6 x 4 x 2
6 x 4 x 2
6 × 4
8 × 4
