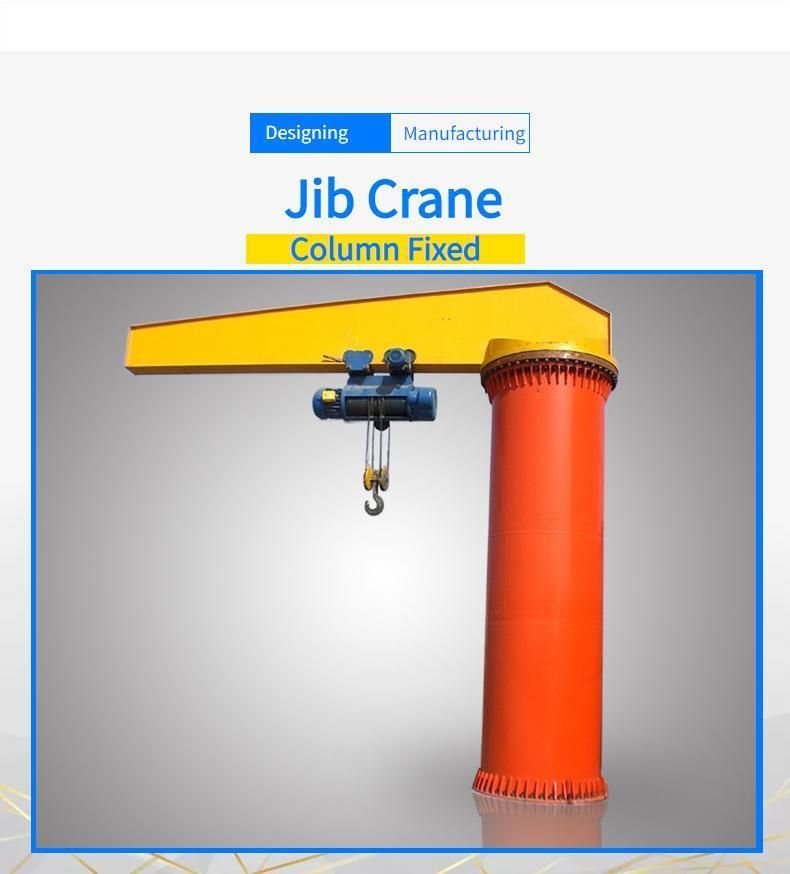

Fixed Pillar Slewing Jib Crane (LYFOOCRANE)
Lyfoo Industry Co., Ltd.- After-sales Service：12 Month After Delivering
- Warranty：12 Month After Delivering
- Certification：CE
- Condition：New
- Application：Workshop, Construction Usage
- Anchor：Whole-Buried
Base Info
- Model NO.：BZD
- Structure：Solid Web
- Material：Steel
- Type：Tower Crane
- Span：3m-16m
- Power Source：Electric
- Sling Type：Wire Rope
- Transport Package：Strong Wooden Box
- HS Code：84253190
- Production Capacity：100000
Description
Overview
Product Description
1. Brife Introduction
BZ-type pillar jib crane is a kind of small and medium-sized lifting equipment, the complete range is for loads up to 16 tonnes.
BZ can be operated freely in 3D space. So jib cranes are efficient partners performing their tasks reliably in factory.With their comprehensive product line of jib cranes, it offers flexible and cost efficient material handling solutions for any job in the workplace. Our Jib cranes can be individually tailored for your application.

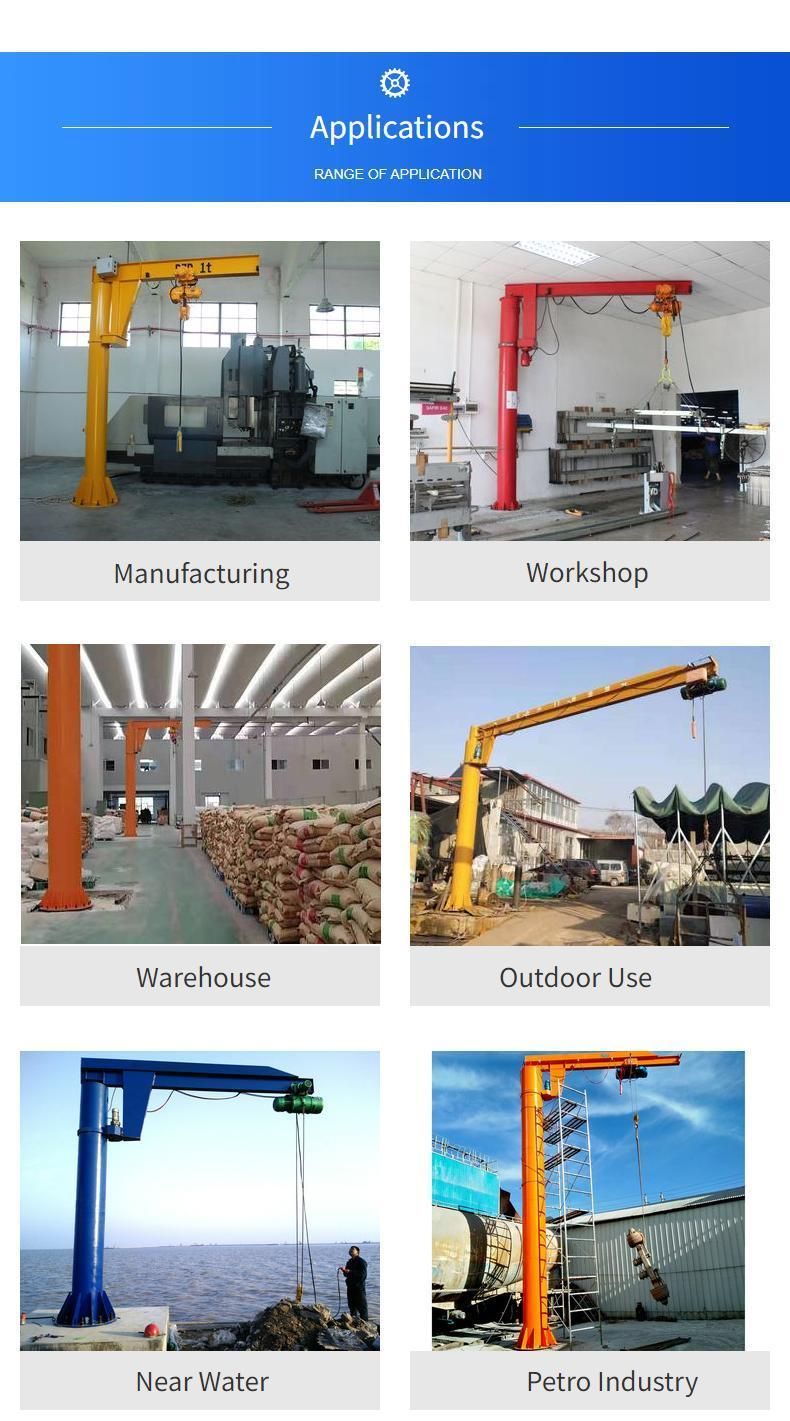

with BZ jib cranes,the lifting is easier, more efficient and safer. Widely used in workshop, warehouse, dock and other fixed places.
Environmental conditions:
1.The power of the crane is three-phase AC, rated frequency of 50HZ, rated voltage of 380V.
2.The altitude of the crane installation site is less than 2000m.
3. Inflammable, explosive and corrosive gases are forbidden in the installation site of the crane.
4. The crane is not allowed to lift the molten metal, toxic and inflammable and explosive materials.

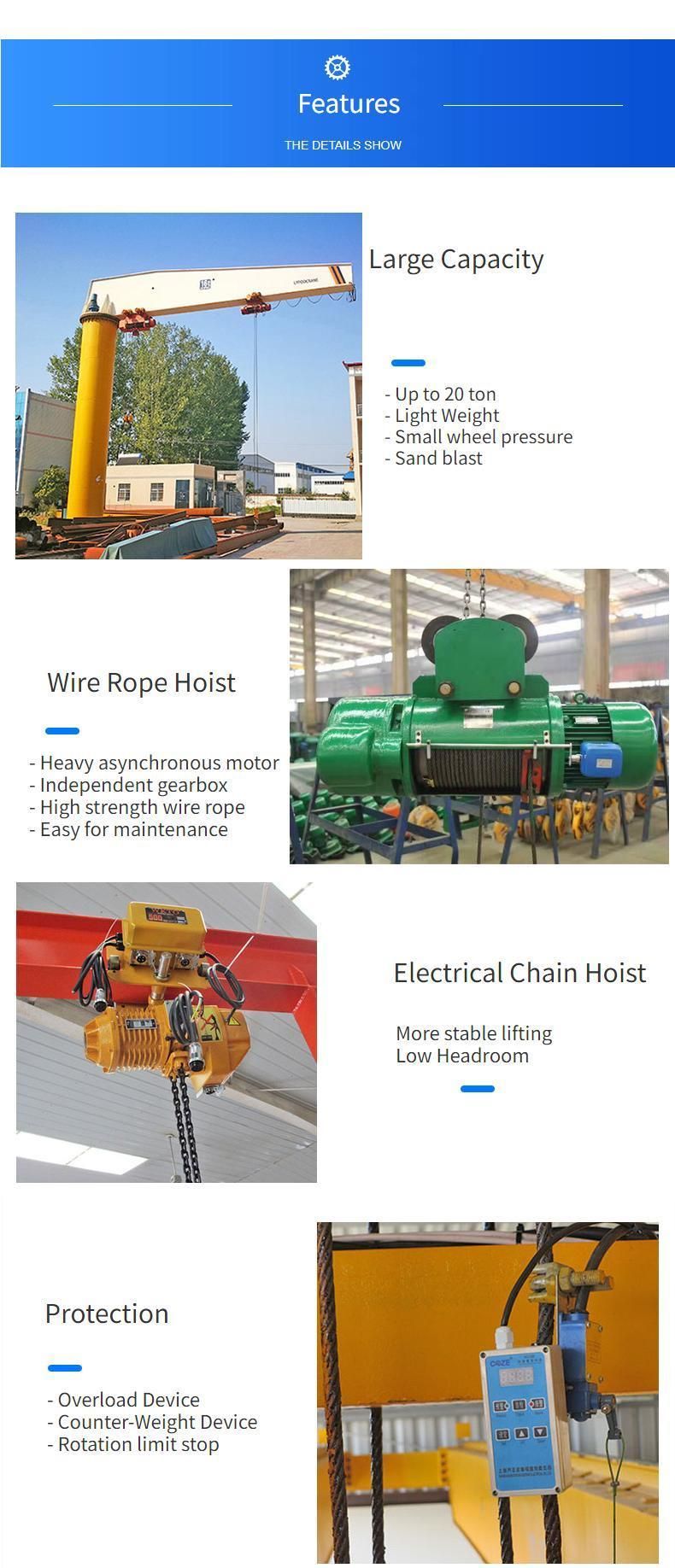

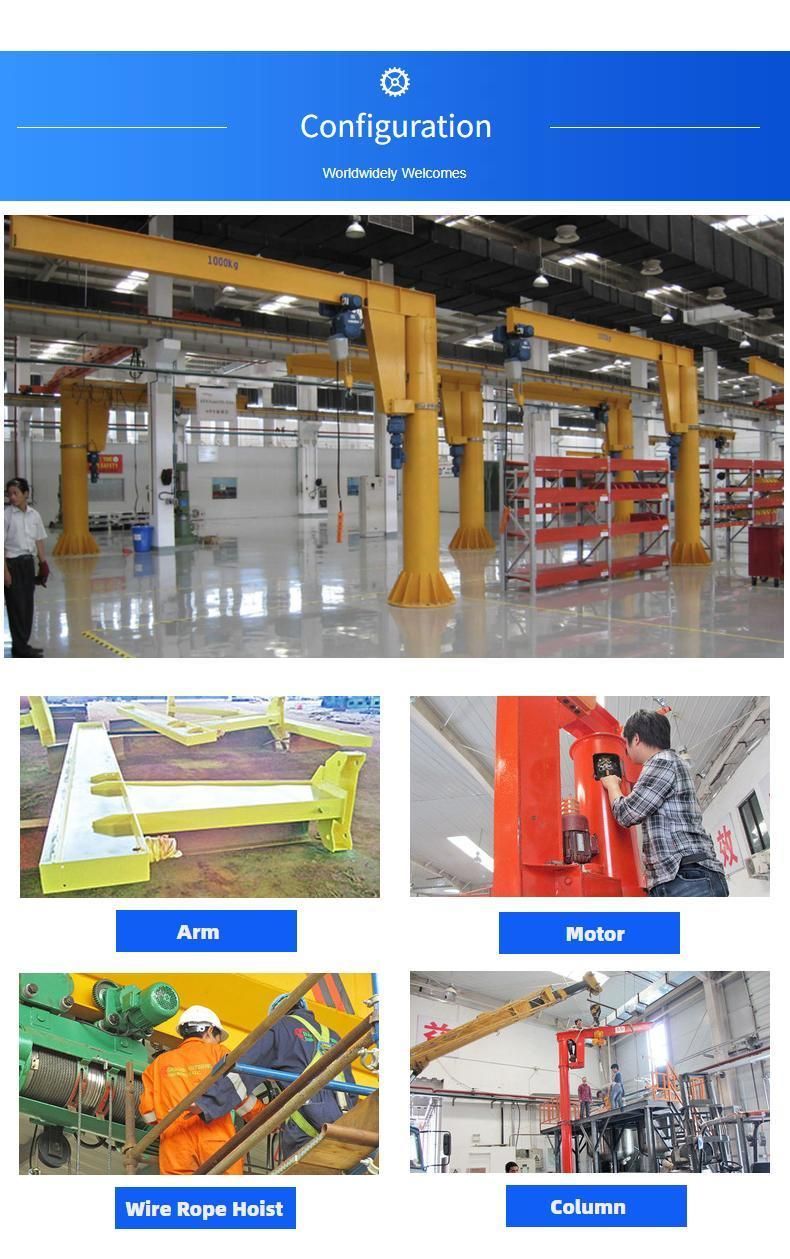

-Pillar is made of sturdy, hollow steel sections
-Jib arm is made of I-beam or weld steel box, depends on capacity and duty group.
-Bolted end connection plate for rapid mounting
-Safety anchoring with ribbed pillarbase
-Low-build profile section jib armfor optimised hook height
-Power supply via slip-rings for infinite 360° slewing.
-Complete with electrical systems including lockable mains switch and power supply to the hoist
-Electrical equipment with class F insulation, protection type IP 54
-Operated from floor level via pendant controls
-Working with CD/MD electric hoist or chain hoist
-Low headroom offers optimal highest hook position
-Optional electric slewing gear
-Optional electric hoist travel
-Optional mobile control (standard with wire rope hoist)Remarks: We can make to meet your special requirements.

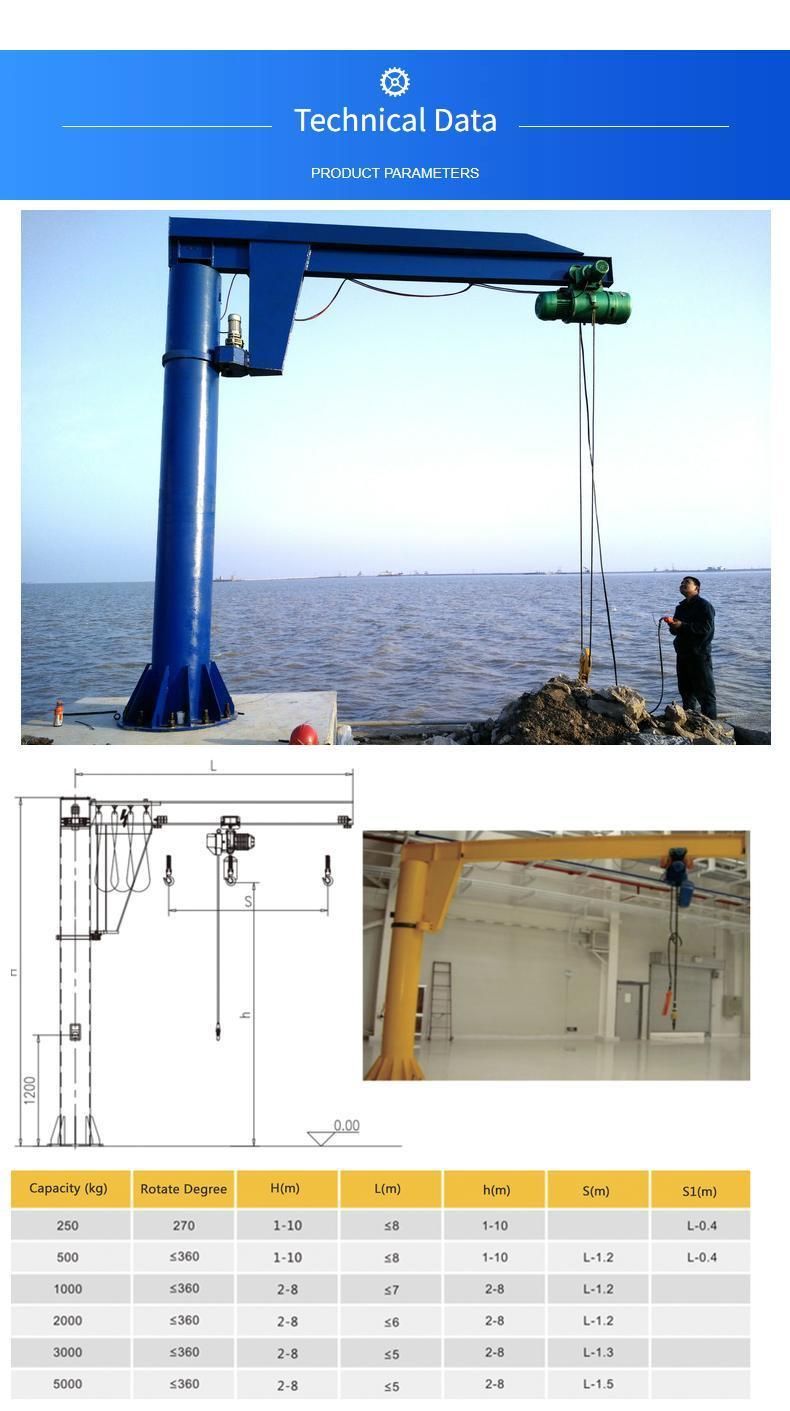

Main Dimension of Jib Crane
Item Code Rated Capacity Lifting Speed Arm Length Max. Slewing radius mini Slewing radius lifting height total height
KGS high/low mm mm mm mm mm BZ0.25t-5m 250 8/2 5200 5000 900 3000 3740 BZ0.5t-m5 500 4/1 5200 5000 950 3000 3870 BZ1t-5m 1000 8/2 5200 5000 1050 3000 4050 BZ2t-5m 2000 4/1 5200 5000 1300 3000 4210 BZ3t-5m 3000 8 5300 5000 1600 3000 4690 BZ5t-5m 5000 8 5300 5000 1700 3000 4960
1. Capacity: 0.25-16t
2. Span: 3m-16m
3. Lifting height: 6-18m
4. ISO9001, OHSAS 18001, ISO14001
Introduction
BZD type pillar Jib crane or column swing lever crane, it is a MID-small lifting equipment developed recently
Features: This jib crane is with simple structure, operate conveniently, 360 degree rotation, wide working conditions.
1. Control mode: Remote control or pendent line with push button or both...
2. All the standards which is required for the crane is the Chinese standard
BZ-type pillar jib crane is a kind of small and medium-sized lifting equipment, the complete range is for loads up to 16 tonnes.
BZ can be operated freely in 3D space. So jib cranes are efficient partners performing their tasks reliably in factory.With their comprehensive product line of jib cranes, it offers flexible and cost efficient material handling solutions for any job in the workplace. Our Jib cranes can be individually tailored for your application. With BZ jib cranes,the lifting is easier, more efficient and safer. Widely used in workshop, warehouse, dock and other fixed places.
1. Brife Introduction
BZ-type pillar jib crane is a kind of small and medium-sized lifting equipment, the complete range is for loads up to 16 tonnes.
BZ can be operated freely in 3D space. So jib cranes are efficient partners performing their tasks reliably in factory.With their comprehensive product line of jib cranes, it offers flexible and cost efficient material handling solutions for any job in the workplace. Our Jib cranes can be individually tailored for your application.
with BZ jib cranes,the lifting is easier, more efficient and safer. Widely used in workshop, warehouse, dock and other fixed places.
Environmental conditions:
1.The power of the crane is three-phase AC, rated frequency of 50HZ, rated voltage of 380V.
2.The altitude of the crane installation site is less than 2000m.
3. Inflammable, explosive and corrosive gases are forbidden in the installation site of the crane.
4. The crane is not allowed to lift the molten metal, toxic and inflammable and explosive materials.
-Pillar is made of sturdy, hollow steel sections
-Jib arm is made of I-beam or weld steel box, depends on capacity and duty group.
-Bolted end connection plate for rapid mounting
-Safety anchoring with ribbed pillarbase
-Low-build profile section jib armfor optimised hook height
-Power supply via slip-rings for infinite 360° slewing.
-Complete with electrical systems including lockable mains switch and power supply to the hoist
-Electrical equipment with class F insulation, protection type IP 54
-Operated from floor level via pendant controls
-Working with CD/MD electric hoist or chain hoist
-Low headroom offers optimal highest hook position
-Optional electric slewing gear
-Optional electric hoist travel
-Optional mobile control (standard with wire rope hoist)Remarks: We can make to meet your special requirements.
Main Dimension of Jib Crane
1. Capacity: 0.25-16t
2. Span: 3m-16m
3. Lifting height: 6-18m
4. ISO9001, OHSAS 18001, ISO14001
Introduction
BZD type pillar Jib crane or column swing lever crane, it is a MID-small lifting equipment developed recently
Features: This jib crane is with simple structure, operate conveniently, 360 degree rotation, wide working conditions.
1. Control mode: Remote control or pendent line with push button or both...
2. All the standards which is required for the crane is the Chinese standard
