Metallurgy Double Girder Overhead Crane Explosion-Proof

Shandong Mingdao Heavy Industry Machinery Co., Ltd.
  • After-sales Service:Engineers Available to Service Machinery
  • Warranty:2 Years
  • Certification:GS, CE, ISO9001, SGS
  • Condition:New
  • Operation Form:Pendant Controller +Remote Controller or Cabin
  • Maximum Lifting Height:30-40m

Base Info

  • Model NO.:QDY
  • Maximum Lifting Weight:20-50t
  • Main Girder Form:Double Girder
  • Type:Ordinary
  • Color:Yellow, Orange, and Customized
  • Lift Capacity:0.5-32 Tons (on Request)
  • Lift Height:30m(on Requst)
  • Lifting Spped:8m,5m Per Minute
  • Girder Type:Box Type
  • Working Class:A3 A5 A6 A7 or on Request
  • Steel Material:Q235B,Q345b
  • Cross Speed:0~20m ,Min
  • Application:Steel Mills, Warehouse, Hydropower Station
  • Transport Package:by Container
  • Specification:Customized type
  • Trademark:Mingdao
  • Origin:China
  • HS Code:8426112000
  • Production Capacity:1000set,Year

Description

Basic Info.

Model NO. QDY Maximum Lifting Weight 20-50t Main Girder Form Double Girder Type Ordinary Color Yellow, Orange, and Customized Lift Capacity 0.5-32 Tons (on Request) Lift Height 30m(on Requst) Lifting Spped 8m/5m Per Minute Girder Type Box Type Working Class A3 A5 A6 A7 or on Request Steel Material Q235B/Q345b Cross Speed 0~20m /Min Application Steel Mills, Warehouse, Hydropower Station Transport Package by Container Specification Customized type Trademark Mingdao Origin China HS Code 8426112000 Production Capacity 1000set/Year

Product Description

PRODUCT IMAGE

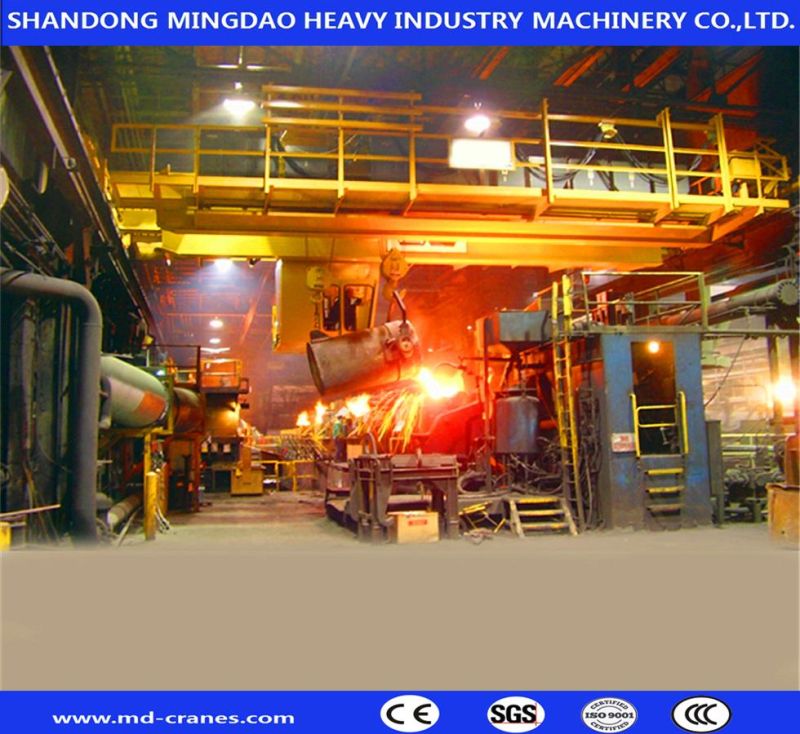

Metallurgy Double Girder Overhead Crane Explosion-Proof

PRODUCT DESCRIPTION
Double girder electric overhead crane has the advantages of compact shape dimension, low building headroom height, light weight,small wheel pressure and so on. It uses together with CD1 or MD1 electric hoist. It is suitable for transporting, assembling ,repairing and load; unload works in mechanical processing workshop,metallurgy auxiliary workshop, storage, yards, power station and so on. It can replace normal double-beam bridge crane and being used in workshop of textile industry and food industry. The work type can be divided into two kinds- light class and intermediate class.

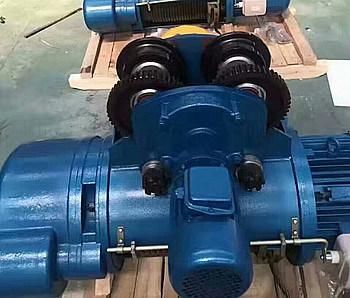

Lifting MechanismWire Rope Hoist
(CD/MD/European Type)
Lift Speed: single/dual
Travel speed:variable
Function: Lift goods
Radio Remote Control Type Overhead Crane with Wire Rope Electric Hoist

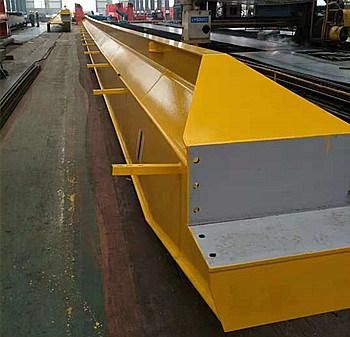

Main Girder/Beam

Rigid welded box type
Module design
Gear motor
Travel speed:variable
Function:Bearing load
Material: Q235/345
Radio Remote Control Type Overhead Crane with Wire Rope Electric Hoist

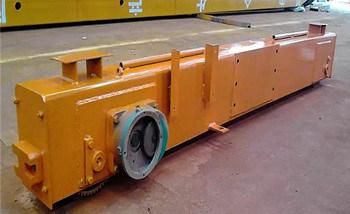

End CarriagesRigid welded box type
Modular design
Function: Push crane run forward or reverse
Materials:Q235/345
Radio Remote Control Type Overhead Crane with Wire Rope Electric Hoist

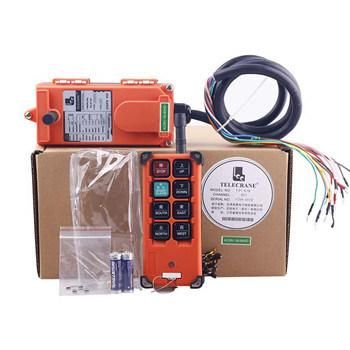

ControlGround pendent button
Radio Remote control
Cabin control
Radio Remote Control Type Overhead Crane with Wire Rope Electric Hoist

Electric partsCircuit breaker/ AC contactor etc electric parts use
Schneider /Siemens/ABB/DELIXI
Etc famous brand
Radio Remote Control Type Overhead Crane with Wire Rope Electric Hoist

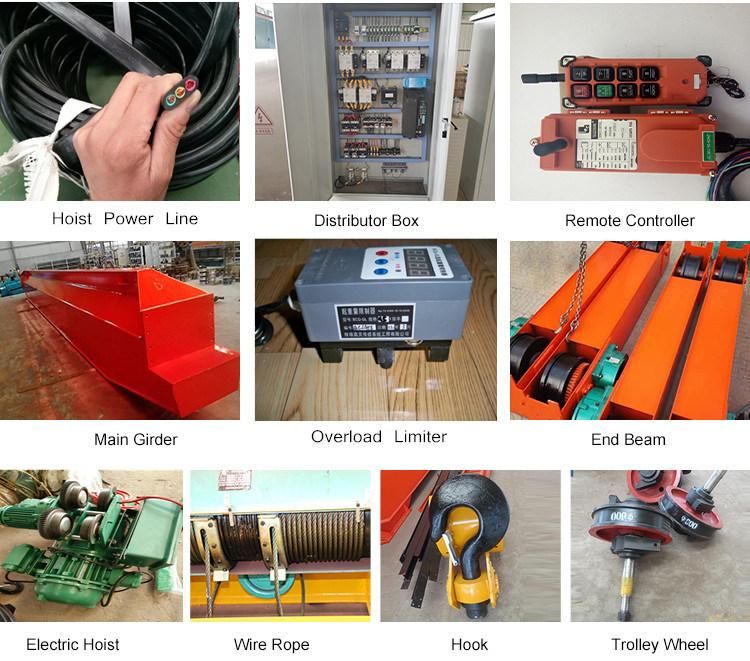

SAFE DEVICES:

1.Overload Limit Switch

2. Rubber Buffers 3.Electric Protective Devices

4.Emergency Stop System

5.Voltage Lower Protection Function

6. Current Overload Protection System

7. Rail Anchoring 8.Lifting Height Limit Device

Radio Remote Control Type Overhead Crane with Wire Rope Electric Hoist


PACKAGING AND SHIPPING:

Metallurgy Double Girder Overhead Crane Explosion-Proof

FACTORY WORKSHOP:

 Shandong Mingdao Heavy Industry Machinery Co., Ltd.Is located in Taian City,Shandong Province, China. We are mainly engaged in the design,

manufacture,installation and maintenance of single girder cranes(LD Models), Double Girder Cranes (LH,QD etc),gantry cranes(MH,MDG..),Jib

cranes
(BZ,QZ,MZ etc), variable frequency cranesExplosion-proof series cranes(LB,QB etc), Cranes with grab bucket,Low headroom

monorail Hoist
Electric Winches, scrapers and CD1 MD1 HC Electric HoistHand Chain Hoist etc...

In the past 10 years, we are aiming at China domestic market and become a leading manufacturer in China. Also,we have exported our products to

many countries such as Vietnam, Philippines, Sri Lanka, Bangladesh, France, Dubai, Kazakhstan, Russia, Tanzania,Peru , New Zealand ,etc

countries. We welcome you will cooperation with us in near future.


Metallurgy Double Girder Overhead Crane Explosion-ProofCERTIFICATES:
Radio Remote Control Type Overhead Crane with Wire Rope Electric HoistFAQ ABOUT MINGD CRANES:

1.Can the cranes be customized?
Yes,every customer's working condition is different, all of our products can be customized depend on customers' requirements.
Please give us the information as clear as you can, so we can give our best design to suit for your demands.

2.How many operation methods for my selections?
We provide pendent controller with push button control type, remote control type or cabin control type.Please tell us what kind
of operation way you need.

3.I have low headroom in my workshop, is it possible to install a crane in it?
We have special products for low headroom workshop, our engineer can give the best design according to your dimensions.

4.Do you supply lift tools?
Yes, we can provide any kind of lifting tools such as hook, electromagnetic, grab bucket etc...

FOR INQUIRY:

In order to offer the most suitable design solution for you, it will be great helpful if you can offer the following information to us:
1. Lifting capacity.
2. Span length.(rail center to rail center)
3. Lifting height.(hook center to ground)
4. Have you installed the rails? Do you need us to supply the rails? How long is it?
5. Power supply: Voltage.
6. Working condition: what kind of material to lift? temperature?
7. It would be much better if it is possible for you to offer the drawing photo of your workshop.
