• Model NO.：OUCO-0.2T20M-TB
• Working Radius：20m
• Lifting Capacity：0.2t
• Transport Package：Nude
• Specification：Customized
• Trademark：OUCO
• Origin：Jiangsu, China
• HS Code：8426990000
• Production Capacity：500sets,Year

1

CRANE TYPE

0.2t@20m

Max. Working radius:20M

Hydraulic Telescopic Boom Marine Crane

2

CERTIFICATION

ABS under sea state 2

3

QUANTITY

1 set

4

HEEL/TRIM

5°/2°

5

AMBIENT TEMPERATURE

-9.9°C~+45°C

6

SWL

0.2T@20m

7

MAX WORKING DADIUS

20m

8

MIN WORKING DADIUS

4m

9

HOISTING SPEED

0~10m/min(main hook)

~30m/min (aux hook)

10

LIFTING HEIGHT

~30m

11

SLEWING ANGLE

~360° all free

12

SLEWING SPEED

0~0.5r/min

13

LUFFER TIME

120s

14

SELF WEIGHT OF CRANE

Confirmed in approval drawing

15

POWER SUPPLY

415v,50Hz,3P

Product Features

1. Easy maintenance at all situation

2. Self contained unit with integrated hydraulic power pack

3. Fail-safe brakes on all movements

4. Fully enclosed and equipped operator cabin with air condition

5. The variable speed hoist will automatically adjust to the highest possible speed for the appropriate load

6. Base on many year's design and fabrication experience of crane and other similar equipment

7. Suitable for all kinds of ships and low power consumption and high efficiency

8. Welded and high strength box boom for easy maintenance

9. With Many safety protection devices---hook up limiter and overload limiter, emergency stop button

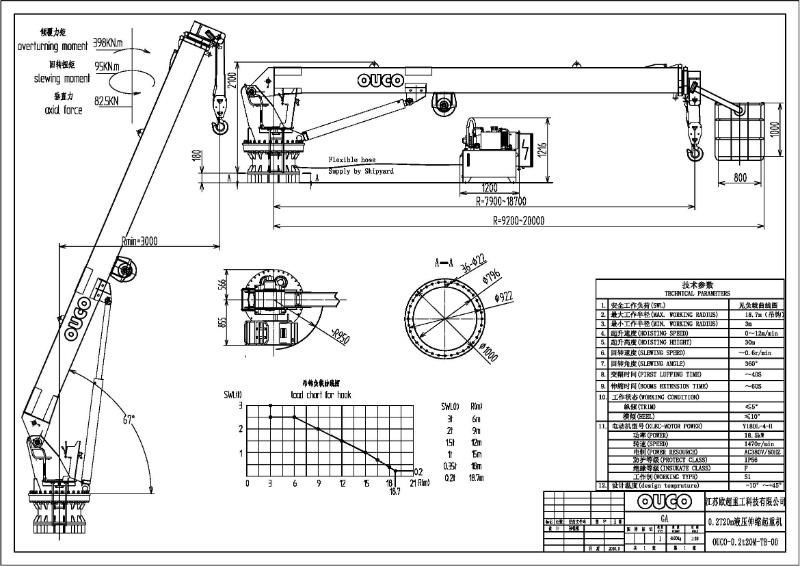

GA Drawing

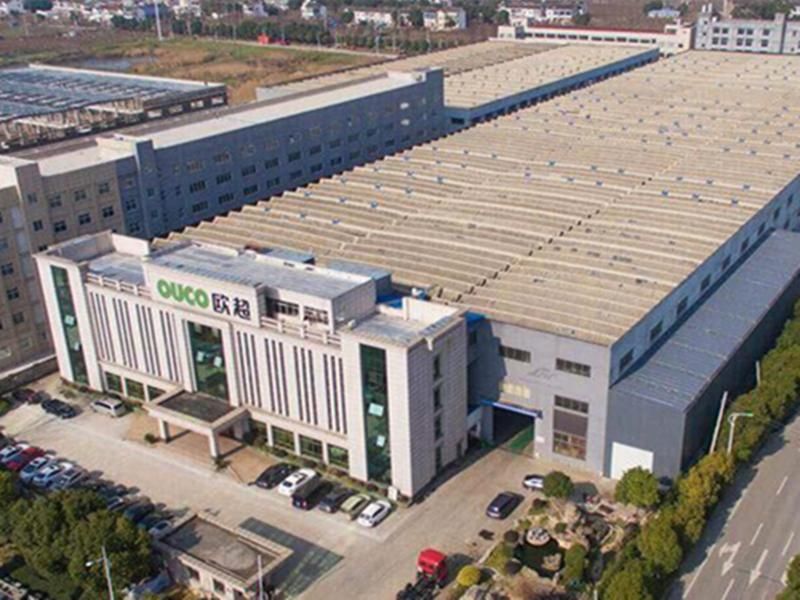

Company Profile

Jiangsu OUCO Heavy Industry and Technology Co., Ltd

  The OUCO Marine Group provides high quality handling solutions and access systems for the marine and offshore industries.Headquartered in beautiful Wuxi, Jiangsu, China, OUCO Marine Group has subsidiaries in several countries and serves a global client base from strategic points in Europe, Asia, Africa, Australia and Middle East.

    With years of experience, the OUCO Marine Group has its own designing team and manufacturing factory, excellent European management who has 47 years of experience on offshore business, which also provides after sales services overseas.

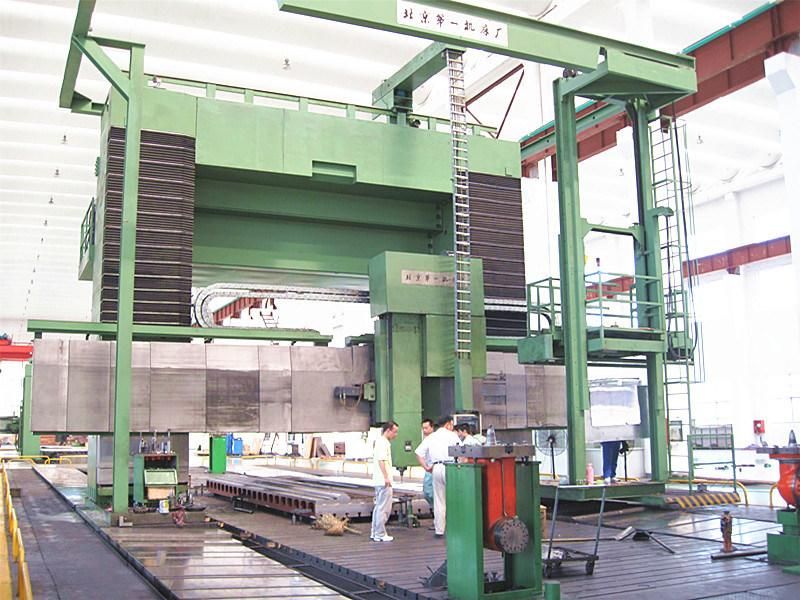

Equipment

     Our factory has all kinds of the most advanced production equipment and we own the best technologies. We can produce all kinds of products you want with all the equipment.

Exhibitions

Certificates

FAQ
1.Q: What's the working radius of your crane?
A: From 1m to 100ms, we can also design and manufacture cranes according to your requirements.
2. Q: Which crane type should I choose?
A: We have foldable boom, knuckle boom, telescopic boom, stiff boom, etc.
3. Q: Is this crane explosion-proof?
A: Sure, we can equip any extra function based on your requirement.
4. Q: Does your crane have safety devices?
A: Of course, we have all cut off limits and alarms for safety reasons.
5. Q: How can I install the crane to my vessel?
A: We can send our service engineers to the vessel site for guiding or ship the crane in whole pieces.
