75 Ton Crawler Crane Mobile Crane Scc750A for Sale
Cruking Engineering Equipment (Xiamen) Co., Ltd.- After-sales Service：Video Technical Support, Online Support
- Max. Lifting Height：57m
- Rated Loading Capacity：75 Ton
- Certification：ISO9001, CE
- Condition：New
- Warranty：1 Year
Base Info
- Model NO.：SCC750A
- Boom Length：57 M
- Max Lifting Moment with Fixed Jib：6.7tx22m
- Boom Luffing Angle：30degree - 80degree
- Engine Rated Power：212,2000 Kw,Rpm
- Rope Speed of Main/Auxiliary Winches：0-120(3rd Layer) M,Min
- Single Rope Pull：7t
- Max Lifting Moment：288t.M
- Longest (Boom+Fixed Jib)：42+18m
- Emissions：Tier 3
- Rope Diameter：20mm
- Weight with Basic Boom：66.7 T
- Max. Weight Per Unit in Transit：38.2 T
- Max. Torque：1080n*M,1500rpm
- Fuel Filter：Replaceable Paper Element
- Fuel Tank Capacity：400L
- Transport Package：Nude Packing
- Specification：12200*3000*3300 mm
- Trademark：Crawler Crane
- Origin：Jiangsu, China
- HS Code：8426491000
- Production Capacity：1000 Unit,Units Per Month
Description
Product Overview
Product Configuration
Company Information

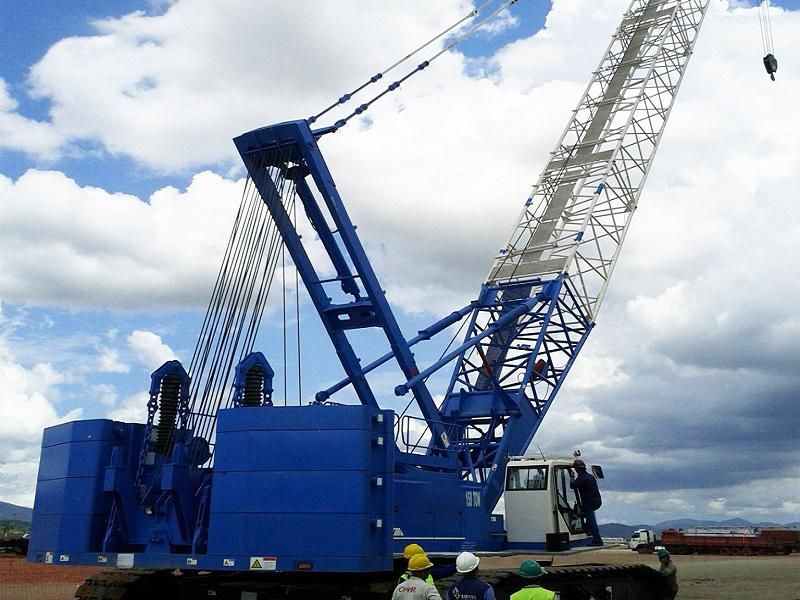

SCC750A crawler crane's maximum lifting capacity is 75 tons, with multifunctional boom system, the crane may support a combination of up to 11 types of operating conditions. The 75 ton crawler tower suits for various business requirements.
Product Paramenters| Model | SCC600A | SCC750A | SCC900A |
| Boom Luffing Angle | -2~78° | 30~80° | 30~80° |
| Jib Angle | 10,15,20° | 0,15,30° | 0,15,30° |
| Longest Boom + Longest Jib | 43+15.25m | 45+18m | 52+18m |
| Max Boom Length | 52m | 57m | 61m |
| Max Jib Length | 15.25m | 18m | 18m |
| Max Lifting Capacity | 60T | 75T | 90T |
| Max Lifting Moment | 222t·m | 288t·m | 360t·m |
| Max Rated Lifting Capacity | 60T | 75T | 90T |
| Model/Displacement | 6HK1 | 6HK1 | 6HK1 |
| Rated Power/Revolution Speed | 212/2000kW/ rpm | 212/2000kW/ rpm | 212/2000kW/ rpm |
