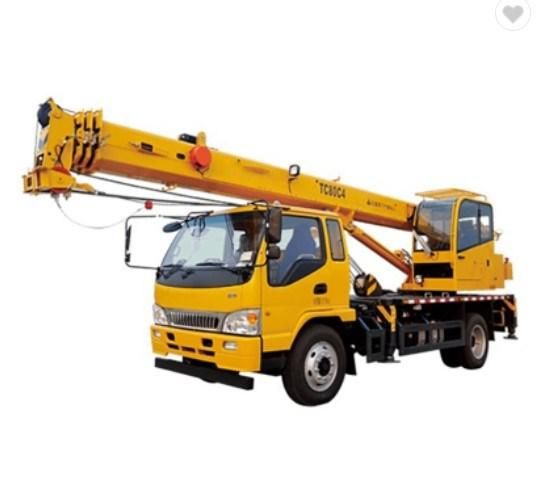

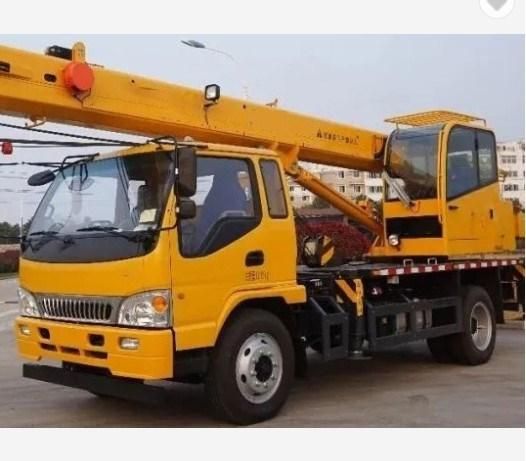

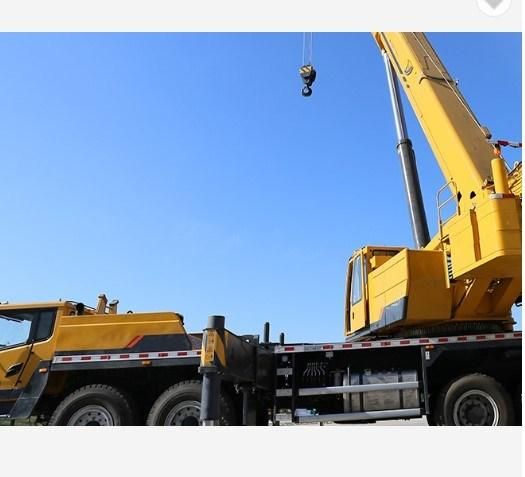

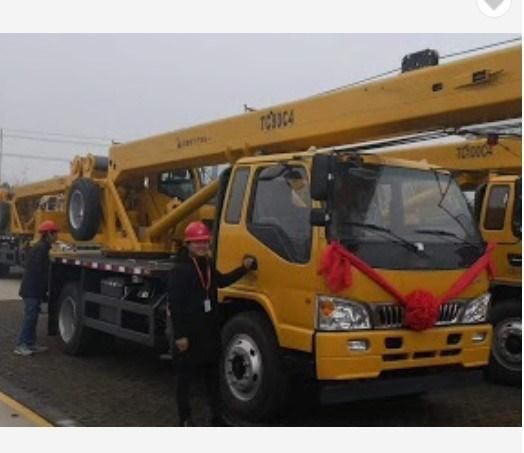

China Construction Crane 80 Ton Heavy Truck Cranes Xct80L5
Acntruck Automobile Sales (Shanghai) Co., Ltd.- After-sales Service：1 Year Trade Assurance
- Warranty：1 Year Trade Assurance
- Certification：GS, RoHS, CE, ISO9001, EPA
- Condition：New
- Maximum Lifting Height：20-25m
- Maximum Lifting Weight：20t
Base Info
- Model NO.：XCT80L5
- Crane Jib：Four-Arm
- Type：Straight Arm
- Transport Package：Container or Roro Vessel
- Specification：20t
- Trademark：China brand
- Origin：China
- Production Capacity：1000 Units,Per Year
Description
Description
Unit
Parameter value
Overall length
mm
15000
Overall width
mm
2750
Overall Height
mm
3990
Wheel Base
mm
2000+4000+1350
Track
mm
2353/2353/2063/2063
Total vehicle mass in travel configuration
kg
50000
Axle load
kg
12000/12000/13000/13000
Engine Model
MC11.40-50 ,MC11.40-60
Engine rated power
kw/(r/min)
297/1900,297/1900
Engine rated torque
N.m/(r/min)
1900/1000-1400,1907/1000-1400
Max. travel speed
km/h
≥90
Min. travel speed
km/h
2.5~3
Min. turning diameter
m
≤24
Min. ground clearance
mm
303
Max. grade ability
%
47
Approach angle
°
20
Departure angle
°
14
Braking distance
m
≤10
Oil consumption per 100km
L
44
Max. total rated lifting capacity
t
80
Min. rated range
m
3
Turning radius at turntable tail
mm
4260,4290
Outrigger span Longitudinal
m
7.8(7.16)
Outrigger span Lateral
°
7.9(5.9)
Base boom
m
13.3
longest boom
m
50.5
Longest main arm + second arm
m
75.5
Max. slewing speed
r/min
≥2.0
1. Super main arm-high frequency working condition performance stronger;
2. Gold power transmission system-power more surging;
3. Proprietary composite liquid control technology-higher efficiency;
4. High grade electrical protection-more reliable operation;
5. Elaborate-more exquisite details;
6. Intimate and humanized-more convenient to use.
