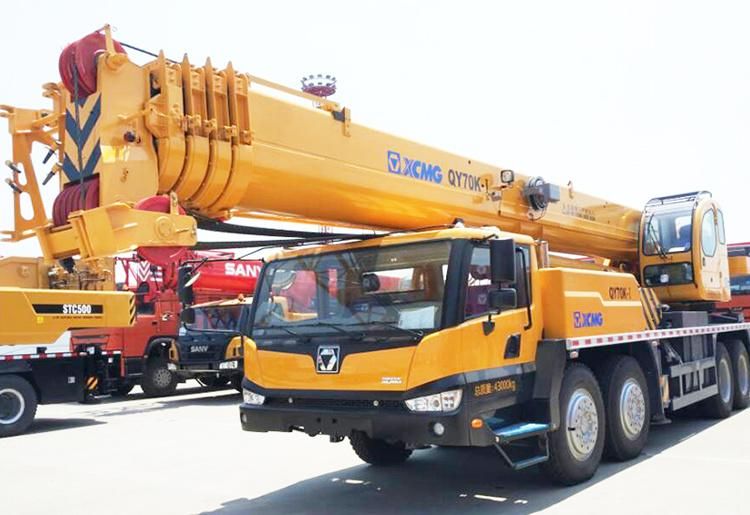

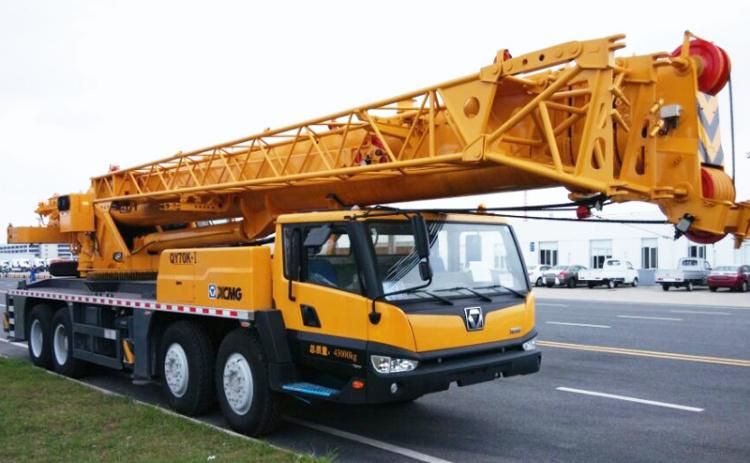

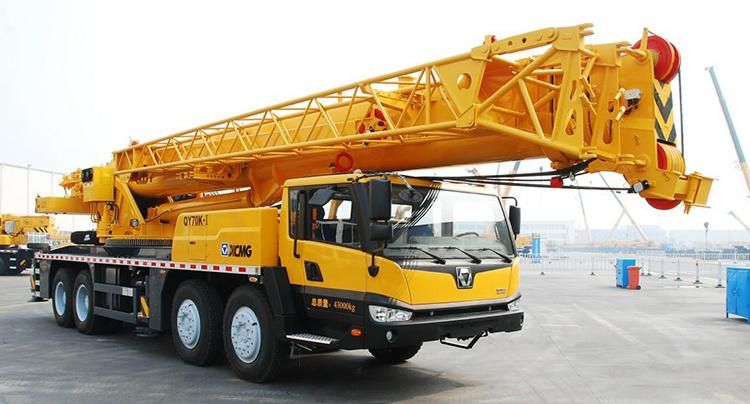

• Model NO.：QY70K-I
• Engine Rated Torque：1500,1400n.M,(R,Min)
• Max. Travel Speed：80km,H
• Min. Steady Travel Speed：3km,H
• Min. Turning Diameter：24m
• Min. Turning Diameter at Boom Tip：39m
• Total Mass Under Driving Status：48000kg
• Transport Package：Comply with Export Packaging Requirment
• Specification：13900*2800*3575mm
• Trademark：XCMG
• Origin：Xuzhou, Jiangsu, China
• HS Code：87059091
• Production Capacity：10000,Year

DescriptionUnitParameter valueOverall lengthmm13900Overall widthmm2800Overall Heightmm3575Axle base1st ,2nd axlemm14702nd ,3rd axle41053rd ,4th axle1350Wheel Basemm2304+2075Total vehicle mass in travel configurationkg43000 (not including auxiliary counterweight of 1t)Axle load1st and 2nd Axlekg170003rd and 4th Axle26000Engine Model WD615.338Engine rated powerkw/(r/min)276/2200Engine rated torqueN.m/(r/min)1500/1400Engine rated rotational speedr/min2100Max. travel speedkm/h80Min. steady travel speedkm/h3Min. turning diameterm24Min. turning diameter at boom tipm29Min. ground clearancemm327Max. grade ability%40Approach angle°19Departure angle°11Braking distance (at 30 km/h, full load )m≤10Oil consumption per 100kmL45
[Product Picture]







[Company Information]







[FAQ]
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC.
3: What about the delivery time?
A: 7-30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
