HBQZ 20 Ton Hydraulic Construction Equipment Lifting Truck Crane (SQ400ZB5)

Hubei Jiaheng Technology Co., Ltd.

Certification：ISO9001
Condition：New
Maximum Lifting Height：15-20m
Maximum Lifting Weight：>16t
Shaft Number：3
Crane Jib：Five-Arm

Base Info

Model NO.：SQ400ZB5
Type：Folding
Max Lifting moment：400Kn.m
Max Lifting Height：15.7m
Max Working Radius：13.3m
Boom Section：5 stages
Rotation Angle：360 degree all Rotaion
Rated Working Pressure：28MPa
Oil tank Capacity：200L
Crane Weight：5600kg
Outrigger：4, adjustable, Hydraulic operating.
Safety Device：Load Indicator, Hydraulic Safety Valve, Counter Ba
Material：HG785
Swing type：Planetary gear reduction
Installation Space：1530mm
Keywords：truck crane
Transport Package：Nude or Customized
Specification：5600kg crane weight
Trademark：HBQZ
Origin：China
HS Code：8426910000
Production Capacity：35 Unit,Units Per Month

Description

12R22.5 tubeless tire, 13 pieces including one spare tire

Hubei Jiaheng Technology Co., Ltd

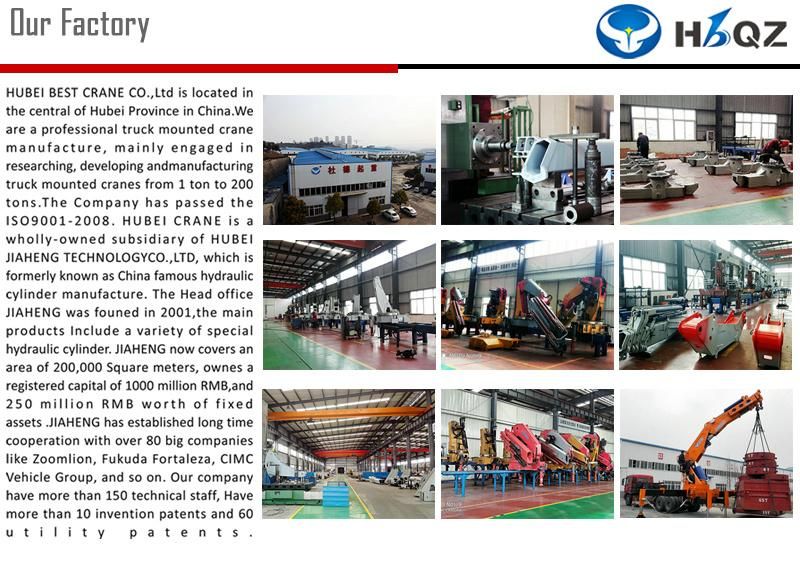

Hubei Best Crane Co., Ltd
(Truck Crane Professional Manufacturer)
Web: hbjh2013.en.made-in-china.com
