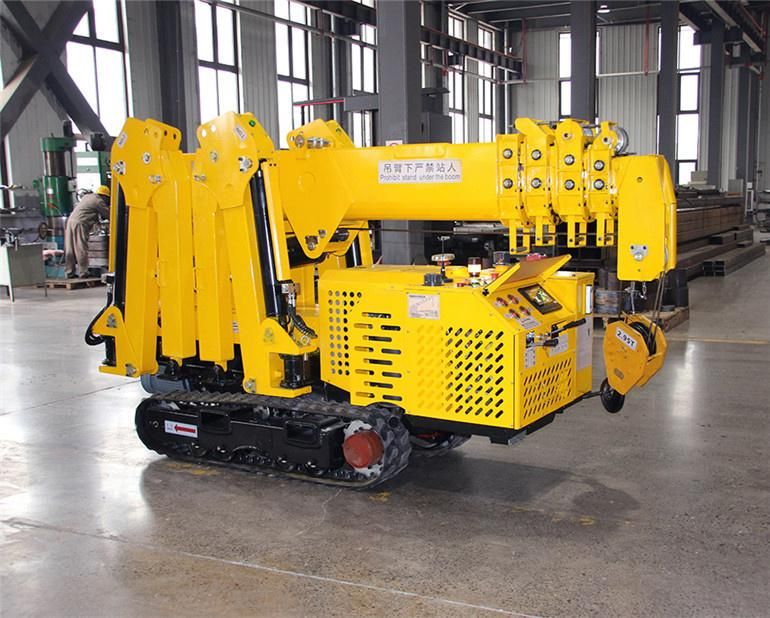

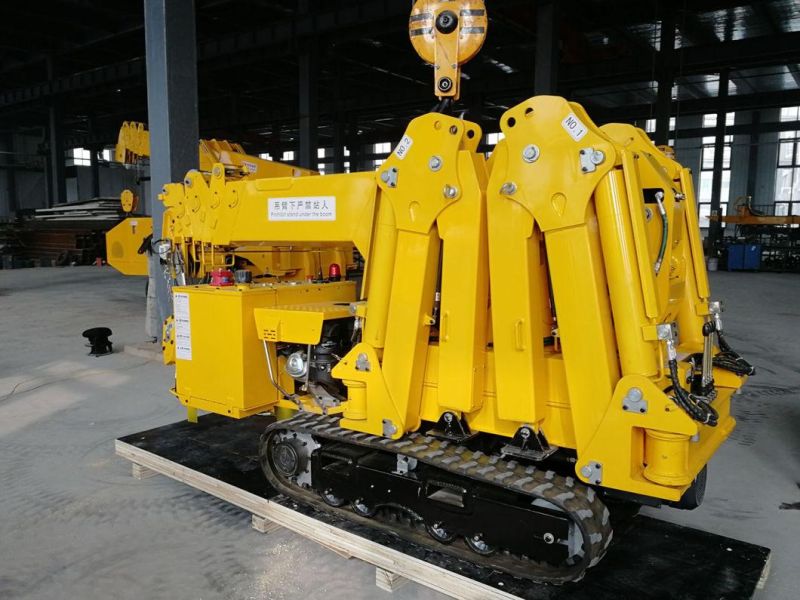

Brand New 8ton 18m Telescopic Boom Crawler Spider Crane Kb8.0
Maxizm Construction Machinery (Qingdao) Co., Ltd.- After-sales Service：,
- Max. Lifting Height：18m
- Rated Loading Capacity：8t
- Certification：ISO9001, CE
- Condition：New
- Warranty：1 Year
Base Info
- Model NO.：KB8.0
- Capacity：8.00t *2.5m
- Working Radius：17.8m * 2.5t
- Lifting Height：17.8m
- Hook Speed：10m , Min 4 Rope
- Rope Type：2mm * 125m
- Boom Form：U-Type Fully Automatic 5 Sections
- Boom Length：4.65m ~ 16.4m
- Boom Angle：0 ~ 80 , 24.5sec
- Rotation Angle / Time：0 ~ 360 , 2.1rpm (2.5rpm When Incre
- Crane Grounding Length * Width * 2：1720mm * 320 mm
- Walking Speed：0-2.5km , H
- Ground Length×width：1720mm * 320mm * 2
- Grade Ability：20
- Ground Pressure：49.0kpa (0.50 Kgf , Cm²)
- Weight：6500kg
- Transport Package：Nude
- Specification：5033mm * 1560mm *2278mm
- Trademark：,
- Origin：China
- HS Code：8425429000
- Production Capacity：500pices,Year
Description

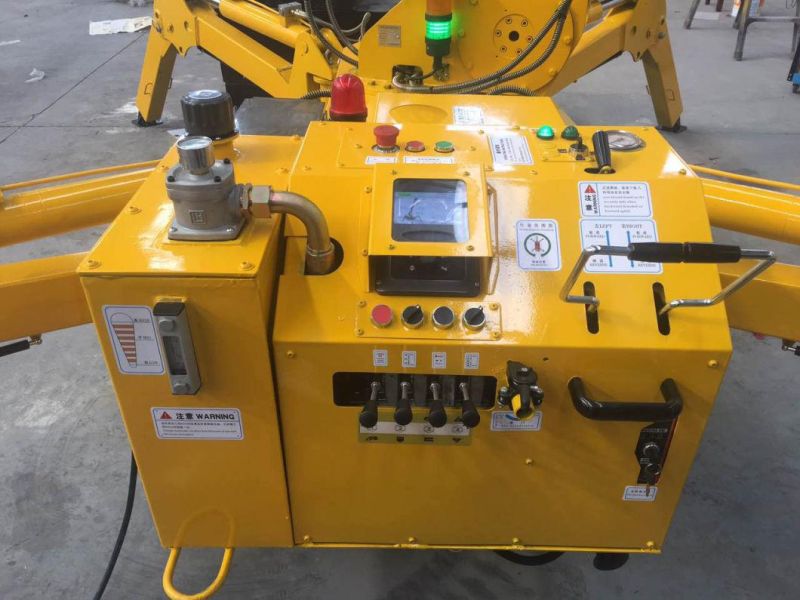

Torque limiter, tri-color light, alarm, emergency stop button, anti-tip overturning, interlocking, car body leveling with one
click.
