• Model NO.：SQ3.2S3
• Type：Straight Arm
• Keywords：truck cranes
• Crane type：telescopic crane
• Feature：mini crane
• Max Lifting moment：80Kn.m
• Max Lifting Height：10m
• Working Radius：7.4m
• Rated Oil Flow：30 L,min
• Oil tank Capacity：100L
• Outrigger Span：1750-3550mm
• Crane Weight：1500 kg
• Installation Space：800mm
• Material：HG70
• Safety Device：Load Indicator, Hydraulic Safety Valve, Counter Ba
• Winch type：Hydraulic crane
• Hot points：telescopic truck mounted crane
• Transport Package：Nude or Customized
• Specification：mini crane
• Trademark：HBQZ
• Origin：China
• HS Code：8426910000
• Production Capacity：35 Unit,Units Per Month

Max Lifting Capacity (kg/m)3200/2.51100/4800/5.3400/7.4Max Lifting Height10mWorking Radius7.4mBoom Section3 stagesRotation Angle360°All RotaionWorking Pressure16mpaRated Oil Flow30 L/minOiltank Capacity100LWinchtypeHydraulicSwingtypePlanetary gear reduction.Outriggeradjustable, Hydraulic operating.Outrigger Span1750-3550mmCrane Weight1500 kgInstallation Space800mmSafety DeviceLoad Indicator, Hydraulic Safety Valve, Counter Balance Valve, Automatic Swing Brake, Hook Safety Device.MaterialHG70 10.00R20 tubeless tire, 7 pieces including one spare tire
Our advantages:

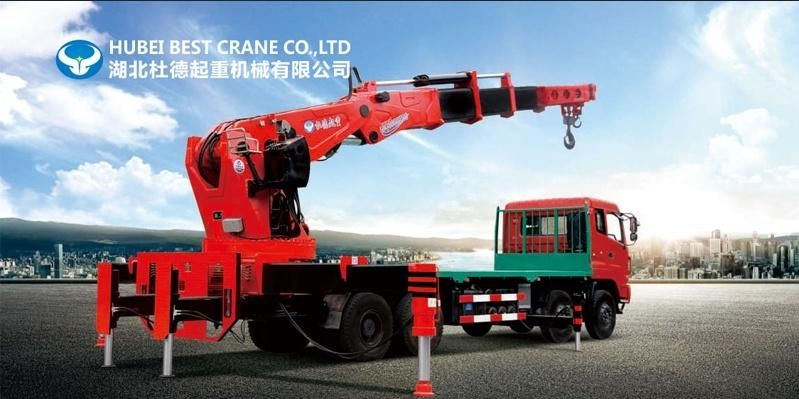

1.Telescopic crane,named telescopic truck mounted crane, is a easy to operate and more economical facility. The raise and down are driven by wire rope, easy to accurately control. The barycentre of the telescopic truck crane are far to the mounting point, beneficial for average the loading, the arm are more longer, with wide operating range.
2.Truck Loader Crane,named tractor mounted crane, is a type of machine can carry heavy weights and transport them. The truck with crane mounted can load and unload the freight itself and don't need to employ another crane. The loader crane can freely route in 360 degrees, raise and extend, make the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.This truck mounted cranes are a great way to move equipment from the truck base to the ground and back from the ground. They are usually flexible to transport and move heavy loads to high altitudes, such as stones, containers, etc., and are usually mounted on industrial dump trucks.
3.The material of truck mounted crane is used HG70 international standard high-strength steel to reduce the weight of crane.
4.The boom of the knuckle boom crane is used hexagonal structure,reducing the lateral.
5. The balance valve,hydraulic lock,operated valve,hydraulic pump and other core parts of truck mounted crane to ensure the micro-mobility,security and stability is Italian brand
6.Our oil seal and gasket for hydraulic pump of truck mounted crane is  Parker brand
7.The remote control operate of truck mounted crane is Sweden Brand scanreco.
8.We can provide truck mounted cranes for various brands of chassis, such as Dongfeng, Shanxi Automobile, Sinotruk, Dayun, Jiefang and so on.And my factory export department directly sale ,export experience more than 20 years with the drive type could be 4x2 ,  6x2 , 6x4  , 8x4,  providing LHD (left hand drive) and RHD (right hand drive) vehicles

Part 2-----OUR COMPANY

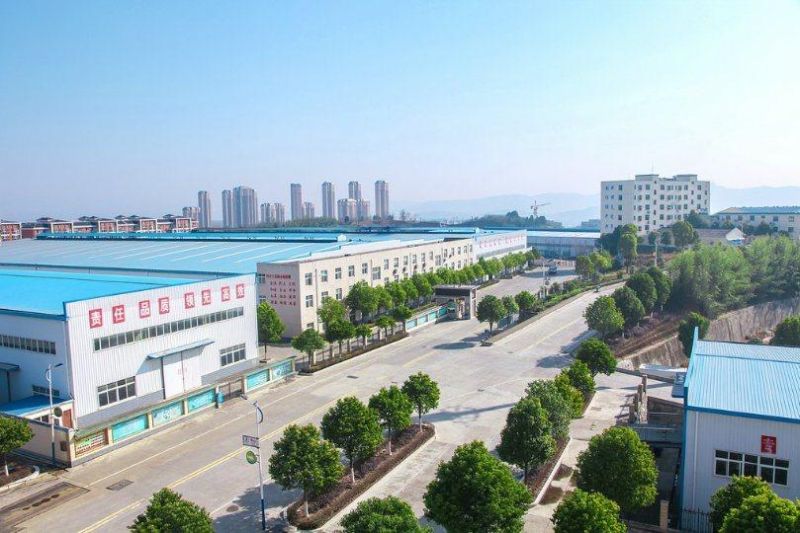

HUBEI BEST CRANE CO.,Ltd is located in the central China in Hubei Province.We are a professional truck mounted crane manufacture, mainly engaged in researching, developing and manufacturing truck mounted cranes from 1 ton to 200 tons.
The Company has passed the ISO 9001-2008, and achieved the license of Special Equipment Manufacture Unit.

HUBEI CRANE is a wholly-owned subsidiary of HUBEI JIAHENG TECHNOLOGY CO.,LTD,which is formerly known as China famous hydraulic cylinder manufacture. The Head office JIAHENG was founed in 2001,the main products include  a variety of special hydraulic cylinder.

After 20 years development,JIAHENG now covers an area of 200,000 Square meters, ownes a registered capital of 1000 million RMB,and 250 million RMB worth of fixed assets .JIAHENG has established long time cooperation with over 80 big companies like Zoomlion, Fukuda Fortaleza, CIMC Vehicle Group, and so on.

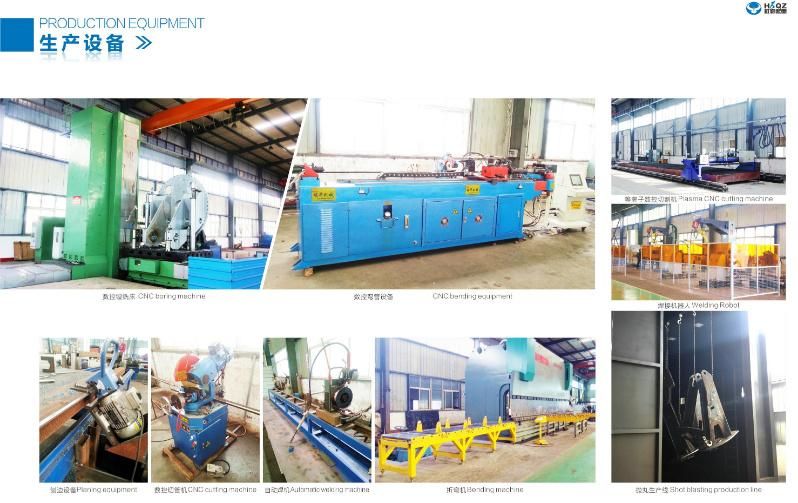

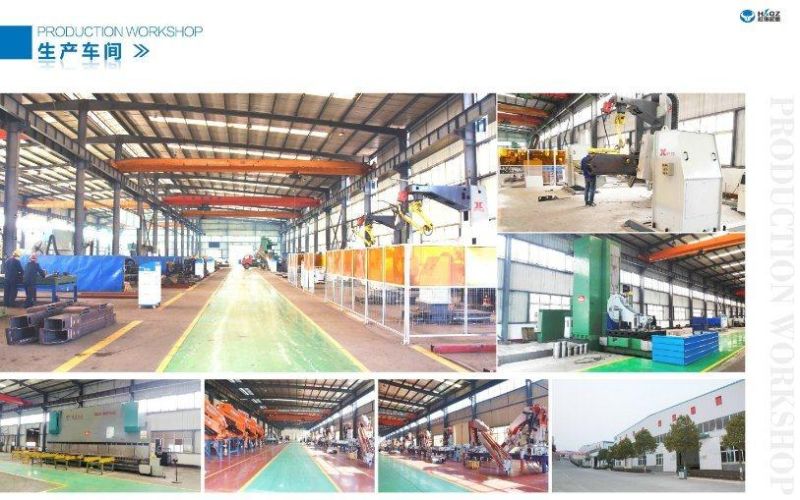

Our company have more than 800 units equipment for mass production.
We can product around 220 thround units per year of hydraulic cylinder and 500 units per year of truck crane.
Our company have more than 150 technical staff, Have more than 10 invention patents and 60 utility patents.
So we can produce custiomed products or develop new products.









Part 3-----EXHIBITION

Our company attend the CANTON FAIR in China twice one year since 2014.
And also attend the BAUWA FAIR evevry two year.
We also coopearate with our customers for many fair both in China or overseas.


Part 4-----FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: How to pack and transport?
A: Nude with safty protection, only crane can be packed into containers for shipment.
     And the truck mounted crane can be deliveried with ro-ro ship.
3: How long is the delivery time??
A: 35 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: one unit. For customized products, the MOQ can be Negotiated.
