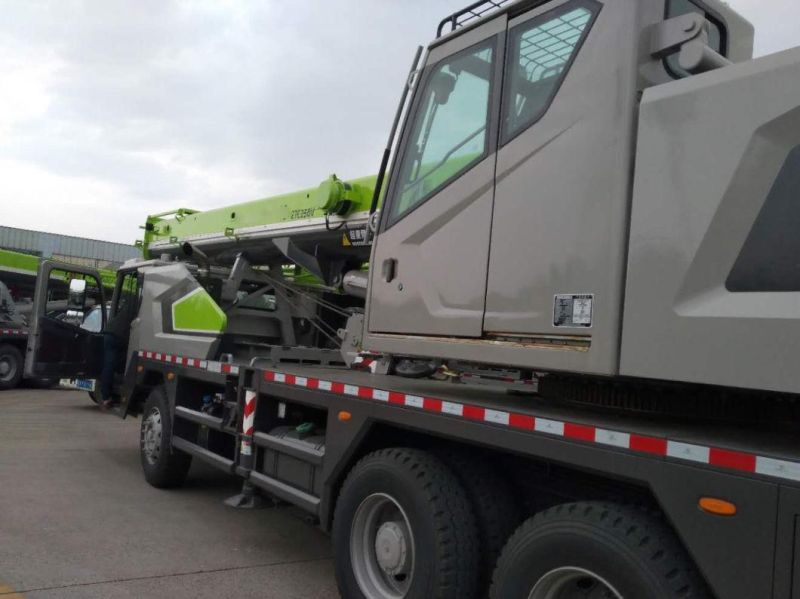

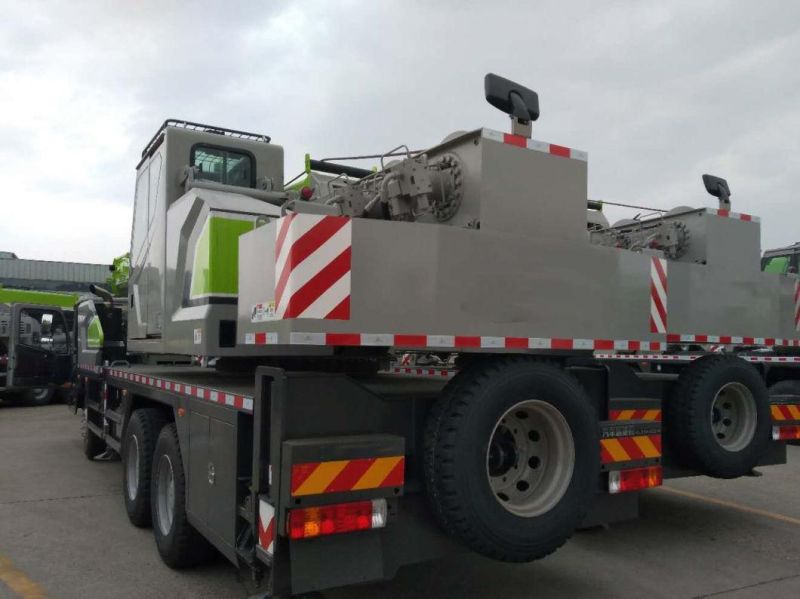

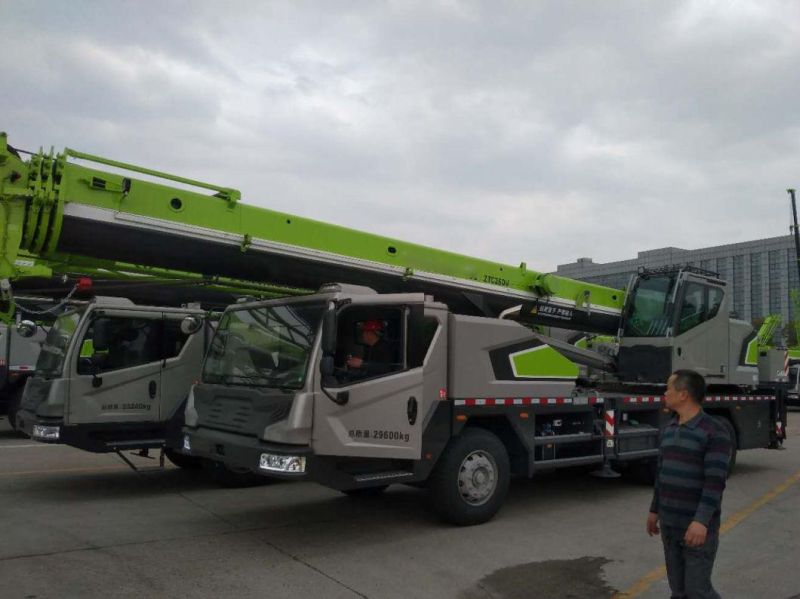

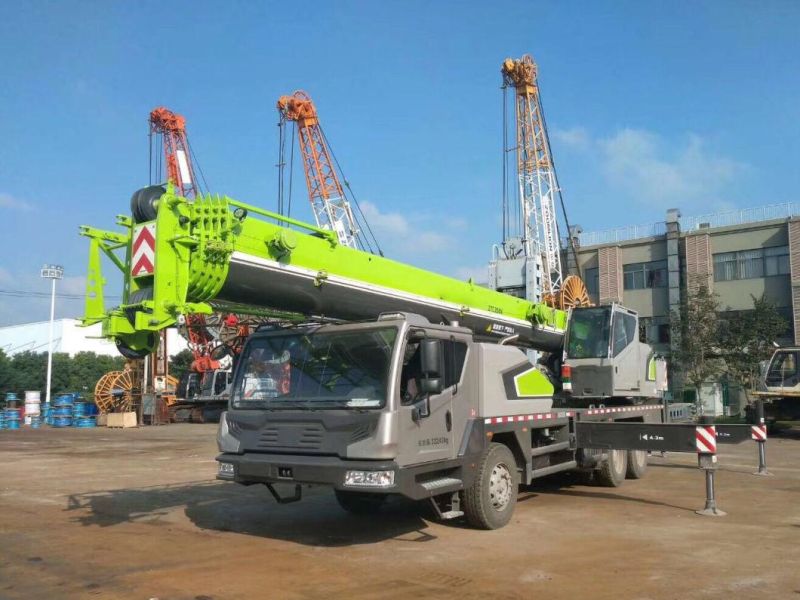

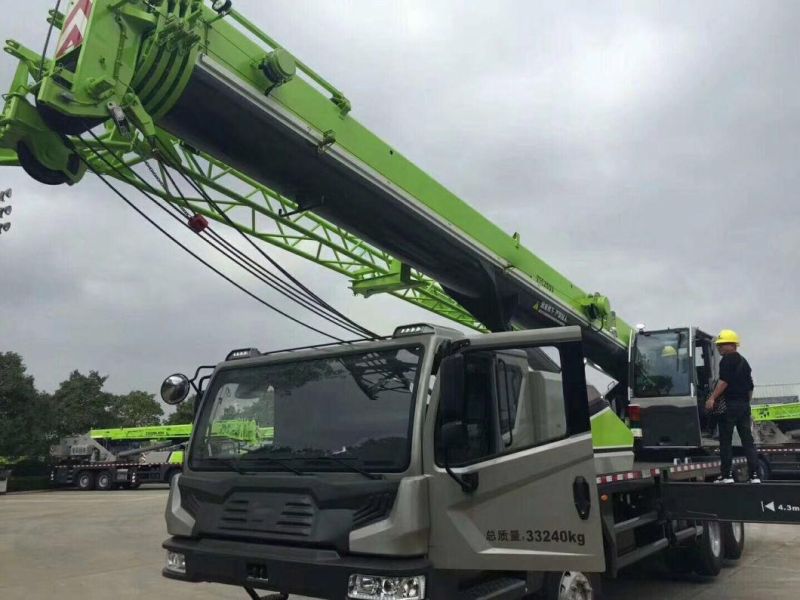

New Ztc250V Zoomlion 4 Section Boom 25 Ton Truck Crane for Sale
Maxizm Construction Machinery (Qingdao) Co., Ltd.- After-sales Service:Support
- Warranty:1 Year
- Certification:GS, RoHS, CE, ISO9001
- Condition:New
- Maximum Lifting Height:30-40m
- Maximum Lifting Weight:>16t
Base Info
- Model NO.:ZTC250V
- Shaft Number:3
- Crane Jib:Three-Arm
- Type:Folding
- Max. Rated Total Lifting Capacity:25000 Kg
- Max. Load Moment of Basic Boom:980 Kn.M
- Model:Ztc250V
- Rated Power:199,2200 Kw,R,Min
- M00ax. Output Torque:11,1200~1600 N.M,R,
- Max. Lifting Height of Basic Boom:11.5 M
- Max. Lifting Height of Main Boom:33.8 M
- Max. Lifting Height of Fly Jib:41.6 M
- Max. Traveling Speed:72 Km,H
- Transport Package:Nude Package
- Specification:13000*2500*3450 mm
- Trademark:MAXIZM
- Origin:Hunan, China
- HS Code:8705109100
- Production Capacity:1000,Momth
Description
Specification of ZTC250A552Max. rated total lifting capacity 25000 kg Max. load moment of basic boom 980 kN.m Max. load moment with max. main boom 573 kN.m Max. lifting height of basic boom 11.5 m Max. lifting height of main boom 33.8 m Max. lifting height of fly jib 41.6 m Max. speed of single rope on main winch 120 m/min Max. speed of single rope onauxiliary winch 105 m/min Derricking time of boom 40 s Telescopic time of boom 60 s Slewing speed 0~2.2 r/min Max. traveling speed 72 km/h Max. gradeability 40 % Min. turning circle diameter 20 m Min. ground clearance 220 mm Oil consumption per hundred kilometers 46 L Deadweight of crane in traveling condition 28930 kg Complete vehicle kerb mass 28800 kg Front axle load 6300 kg Rear axle load 22630 kg Overall dimensions(L×W×H) 13000×2500×3450 mm Base on outriggers 5.36 m Distance between outriggers 6.1 m Main boom length 10.5~33.3 m Main boom angle° -2~80 Fly jib length 8 m Offset angle of fly jib° 0 , 30 Chassis Model ZLJ5314 Class II Feature No. ZLJ5314D3.1 Engine Model WP10.270 Rated power 199/2200 kW/r/min Detailed PhotosMax. output torque 1100/1200~1600 N.m/r/min
