• Model NO.：SAJ30-1.2 , SAJ40-1.2A, SAJ50-2.0
• Weight(Kg)：38.5
• Loder Weight：for Sc100 and Sc200
• Transport Package：Wooden Case
• Specification：SGS
• Trademark：SRIBS
• Origin：Shanghai
• HS Code：84313900
• Production Capacity：20000

Characteristics
Model
Rated Loading
Lifting Speed
Motor Power


Double Cabin


Low-speed
SC200/200D
 2×2000kg
0-33m/min
2×(3×11kw)
SC100/100D
 2×1000kg
0-33m/min
2×(2×11kw)

Mid-speed
SC200/200Z
 2×2000kg
0-55m/min
2×(2×11kw)
SC100/100Z
 2×1000kg
0-55m/min
2×(2×11kw)

Single
Cabin

Low-speed
SC200D
    2000kg
0-33m/min
3×11kw
SC100D
    1000kg
0-33m/min
2×11kw

Mid-speed
SC200Z
    2000kg
0-55m/min
2×11kw
SC100Z
    1000kg
0-55m/min
2×11kw
 The anti-drop safety devcie is consistent with China National Standards; also reach Hong Kong COP Standards and Europe EN Standards.

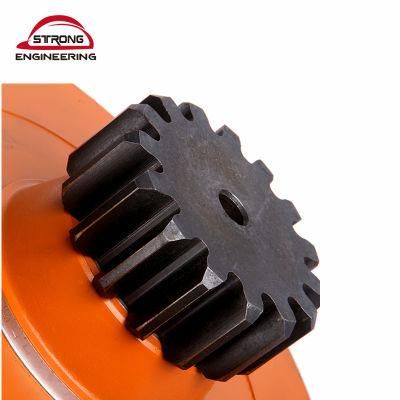

SAJ40-1.2 is one of safety devices for SC200/200. Other safety device including:
Top and bottom limit, cage door electrical and mechanical interlock safety device, landing door electrica and mechanical interlock, anti-exceeding top device, safety hook, anti-overload device, etc.
SC200/200 construction lifting hoist:
1.Cage capacity: 2000kg
2.Lifting speed: 33m/min
3.Mast section: painted or hot galvanized
4.Height: customized
5.Cage size:3.0x1.5x2.2

Anti-drop safety device are including:
SAJ30-1.2, SAJ30-1.4;
SAJ40-1.2, SAJ40-1.4;
SAJ50-1.2, SAJ50-1.4
ETC.


Single cabin
SC200
    2000kg
33m/min
3×11kw
SC150
    1500kg
33m/min
2×15kw
SC100
    1000kg
33m/min
2×11kw
