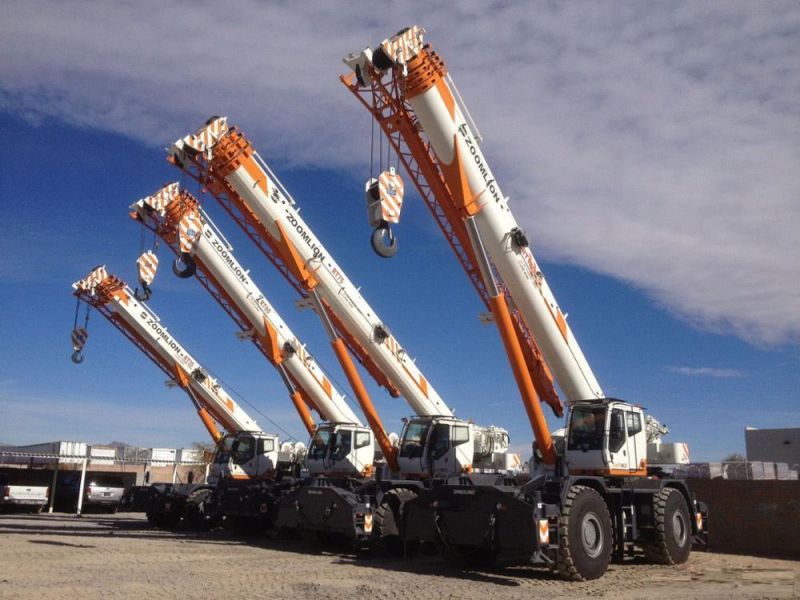

Zoomlion 200 Ton 72m All Terrain Crane (Zat2000)
Sinomada Heavy Industry (Changsha) Co., Ltd.- Max. Lifting Height：73 M
- Rated Loading Capacity：55ton
- Certification：ISO9001, CE, RoHS, BV
- Condition：New
- Warranty：1 Year
- Min. Ground Clearance：260mm
Base Info
- Model NO.：Zat2000
- Rear Axle Load：26000kg
- Front Axle Load：16000kg
- Transport Package：Nude Package
- Specification：13700x2800x3650mm
- Trademark：Zoomlion
- Origin：China
- HS Code：87051091
- Production Capacity：500unit,Month
Description
Working performanceMax. rated lifting capacity kg 55000 Max. load moment of basic boom kN.m 2009 Max. load moment of main boom(fully extended) kN.m 1050 Max. load moment of basic boom m 12.6 Max. lifting height of main boom m 43.6 Max. lifting height of jib m 59.5 Working speeds Max. hoist rope speed(Main winch) m/min 120 Max. hoist rope speed(Auxiliary winch) m/min 120 Boom demrricking up time s 50 Boom demrricking up time s 95 Slewing speed r/min 0-2.2 Driving Max. driving speed km/h 76 Max. gradeability % 40 Turning diameter m ≤24 Min. ground clearance mm 260 Oil consumption per hundred kilometers L 43 Mass Deadweight in driving condition kg 42000 Complete vehicle kerb mass kg 41870 Front axle load kg 16000 Rear axle load kg 26000 Dimension Overall dimensions(L×W×H) mm 13700×2800×3650 Longitudinal distance between outriggers m 5.92 Transversal distance between outriggers m Fully extended:7.1, Intermediately extended:4.8 Tail slewing radius mm 3900 Main boom length m 11.4 - 43.0 Main boom angle ° -82 jib length m 9.5,16.0 Offset ° 0,30
