100 Ton Zoomlion Truck Crane Ztc1000V653 Model Mobile Crane for Heavy Lifting on Promotion

Anhui Heavy and Light Industries International Co., Ltd.
  • Certification：GS, RoHS, CE, ISO9001
  • Condition：New
  • Maximum Lifting Height：>40m
  • Maximum Lifting Weight：>16t
  • Shaft Number：4
  • Crane Jib：6 Boom

Base Info

  • Model NO.：Ztc1000V653
  • Type：Straight Arm
  • Service：Online and Local Service
  • Parts：Provided with Filters
  • Selling Point：High Operating Efficiency
  • OEM：Supported with Color, Language etc
  • Transport Package：Nude, Roro, Container
  • Specification：14990*2900*3990
  • Trademark：ZOOMLION
  • Origin：China
  • HS Code：8426990000
  • Production Capacity：5000,Month

Description

Overview Product DescriptionItemValueRemarksWork
       performanceMax. rated lifting capacity              kg10000At 3 m radiusMax. load moment of basic boom           kN.m4000At 5 m radiusMax. load moment of main boom (fully extended) kN.m1860At 30 m radiusMax. lifting height of basic boom        m14.0  Max. lifting height of main boom         m64.0 The parameters do not include deflection of main boom and jib.
       The value in the brackets is the value with the extension installed.Max. lifting height of jib               m82.5 / (90.5)Work
       speedsMax. hoist rope speed (Main winch)       m/min.110At the 5th layerMax. hoist rope speed (Auxiliary winch)  m/min.75At the 3rd layerBoom derricking up time                  s70 Boom extending time                      s13 Max. slewing speed                       r/min.1.5 DrivingMax. height above sea level              m2000 Max. driving speed                       km/h75 Max. gradeability                        %40 Min. turning diameter                    m≤23 Min. ground clearance                    mm300 Limits for exhaust pollutants and smokeConform to related standardsGB3847-2005 GB17691-2005 (National Stage )Fuel consumption per hundred kilometers  L70 MassDeadweight in driving condition          kg58400 Complete vehicle kerb mass               kg58205 Load on axles 1 and 2                    kg10800/10800 Load on axles 4 and 5                    kg26000(dual-axle)/10800 DimensionsOverall dimensions (L × W × H)         mm15400×3000×3950 Outrigger spread (L)                     m8.05 Outrigger spread (W)                     m7.6 (fully extended),

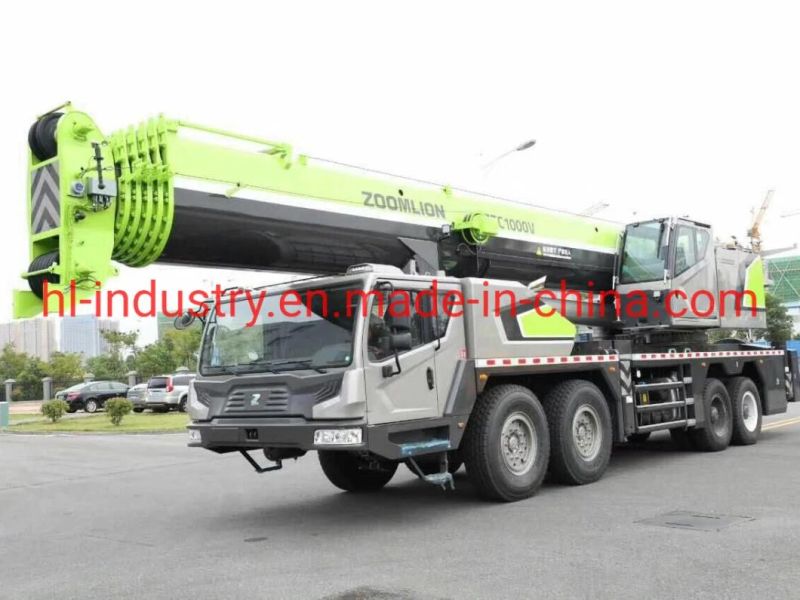

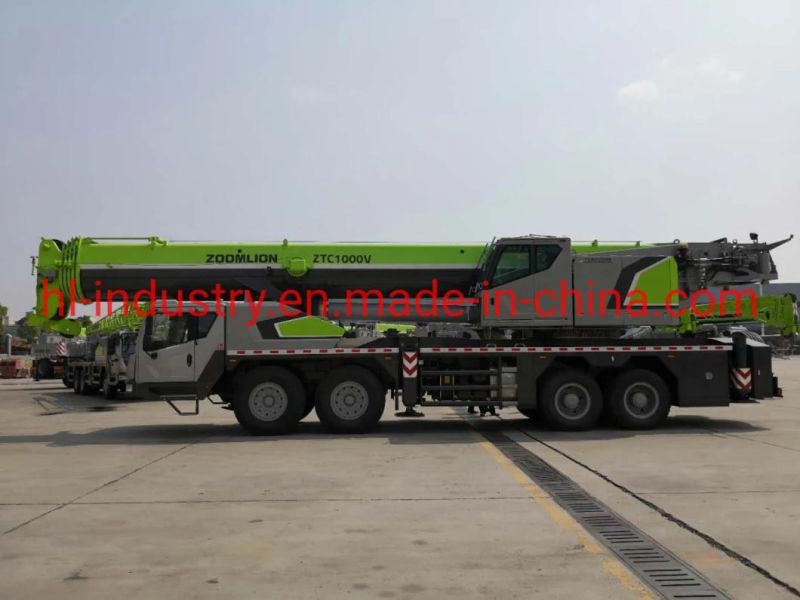

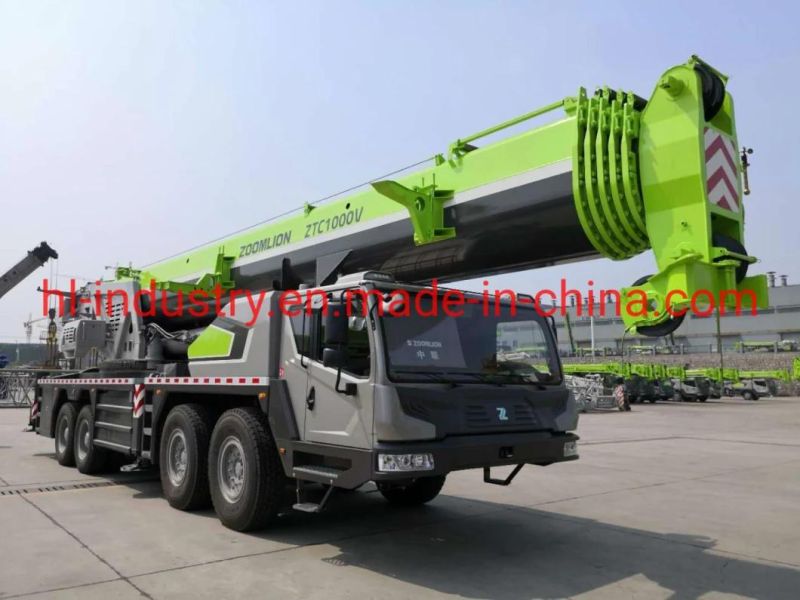

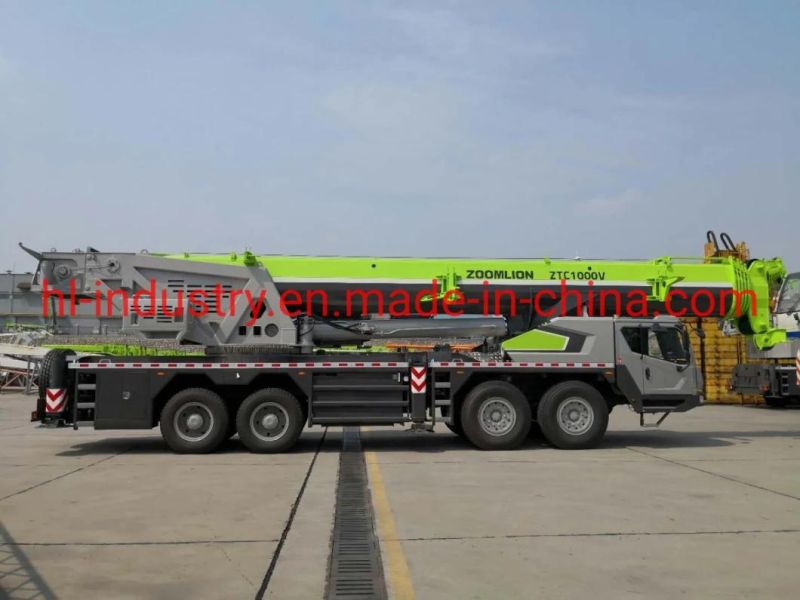

       5.4 (intermediately extended) Main boom length                         m13.5~63.0 Boom angle                               °-0.5~82 Jib length                               m11 ,18.6 Jib + extension length                   m26.6 Offset                                   °0 ,30Detailed Photos

100 Ton Zoomlion Truck Crane Ztc1000V653 Model Mobile Crane for Heavy Lifting on Promotion100 Ton Zoomlion Truck Crane Ztc1000V653 Model Mobile Crane for Heavy Lifting on Promotion100 Ton Zoomlion Truck Crane Ztc1000V653 Model Mobile Crane for Heavy Lifting on Promotion100 Ton Zoomlion Truck Crane Ztc1000V653 Model Mobile Crane for Heavy Lifting on Promotion

Company Profile100 Ton Zoomlion Truck Crane Ztc1000V653 Model Mobile Crane for Heavy Lifting on Promotion100 Ton Zoomlion Truck Crane Ztc1000V653 Model Mobile Crane for Heavy Lifting on Promotion100 Ton Zoomlion Truck Crane Ztc1000V653 Model Mobile Crane for Heavy Lifting on Promotion



Our Advantages

FAQ

1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about the delivery time?
A: 7-20 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs
