• Type：Cantilever
• Lifting Speed：8 M,Min
• Hoist Running Speed：20 M,Min
• Rotating Speed：0.7 R,Min
• Working Radius：3~8 M
• Lifting Height：5~10 M
• Industrial Voltage：3AC 220V~480V 50,60Hz
• Warranty：1 Year
• Color：Customized
• Working Class：A3,1bm
• Sling Type：Wire Rope, Chain
• Transport Package：Special Waterproof Plastic Close for Expor, 40hc
• Specification：500kg
• Trademark：NYBON
• Origin：Henan, China
• HS Code：84263000
• Production Capacity：200 Sets,Year

Basic Info.

Type Cantilever Lifting Speed 8 M/Min Hoist Running Speed 20 M/Min Rotating Speed 0.7 R/Min Working Radius 3~8 M Lifting Height 5~10 M Industrial Voltage 3AC 220V~480V 50/60Hz Warranty 1 Year Color Customized Working Class A3/1bm Sling Type Wire Rope/ Chain Transport Package Special Waterproof Plastic Close for Expor, 40hc Specification 500kg Trademark NYBON Origin Henan, China HS Code 84263000 Production Capacity 200 Sets/Year

Product Description

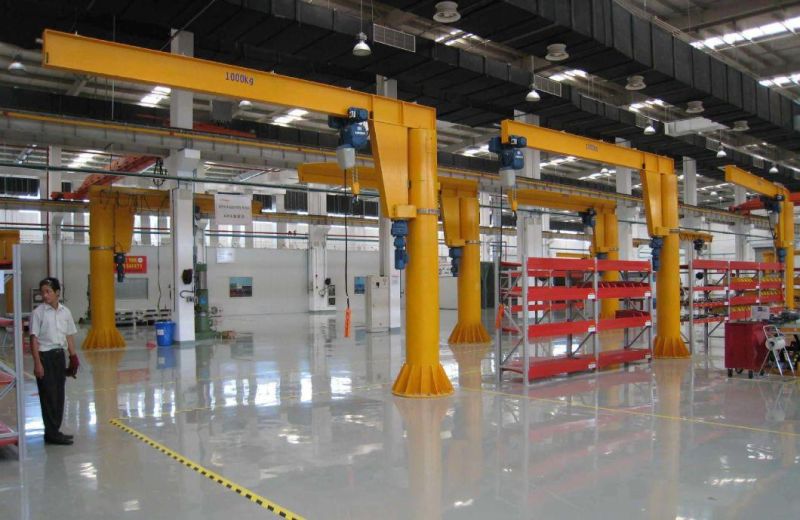

                    Floor mounted 0.5 ton jib crane with electric hoist

Floor mounted 0.5 ton jib crane with electric hoist is a crane which is used with PK type electric chain hoist or CD, MD type electric
hoist. It consists of column, swing jib, electric hoist, drive device and electrical control system.

The bottom of column is fixed on the concrete foundation by the anchor bolts, driving device is driven by the motor to
rotate swing jib, and the electric hoist reciprocates and runs on swing jib.

Electric Wire Rope Hoist 2Ton Jib Crane has the advantages of simple structure, convenient operation, small occupation
space and large working range. And was widely used in machinery manufacturing, automotive, shipbuilding and other
modern industrial production lines, assembly lines and warehouses, docks, laboratories and other materials handling
operations. It Is an ideal lifting equipment for improving work efficiency and working conditions for the enterprise.

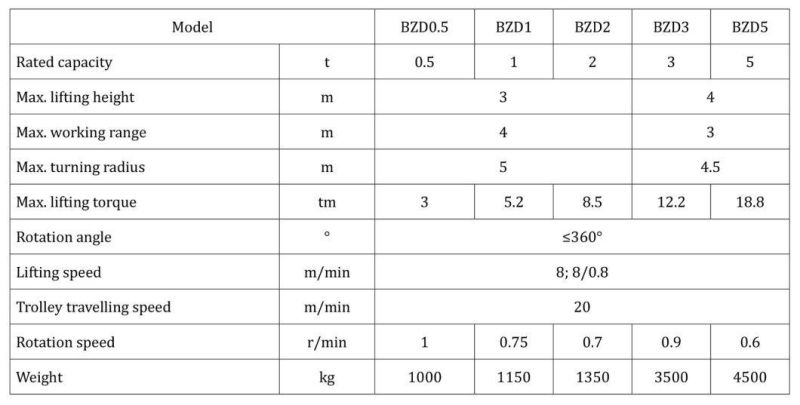

Electric Wire Rope Hoist 2Ton Jib Crane is a light duty lifting equipment, and its rated capacity have six specifications of 0.5t,
1t, 2t, 3t, 5t and 10t . According to  different working requirements, we can choose different models of cranes. This kind
of machine has two types of manipulation: electric and manual operation. Rotary arm rotation angle can be chosen from
180 °, 270 °, 345 °, 360 ° according to your usage.

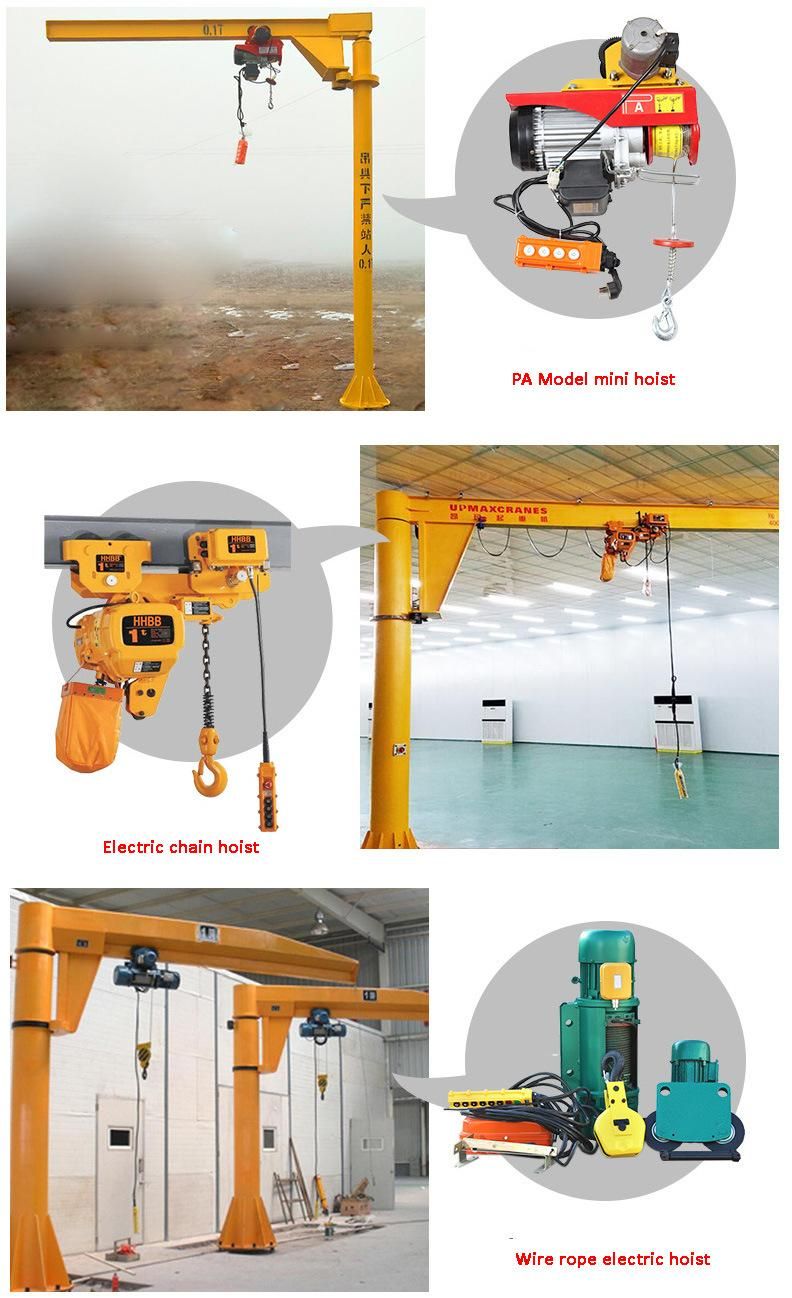

Used with various electric hoist:

Electric Wire Rope Hoist 2Ton Jib Crane can be used with mini hoist, wire rope electric hoist and electric chain hoist.

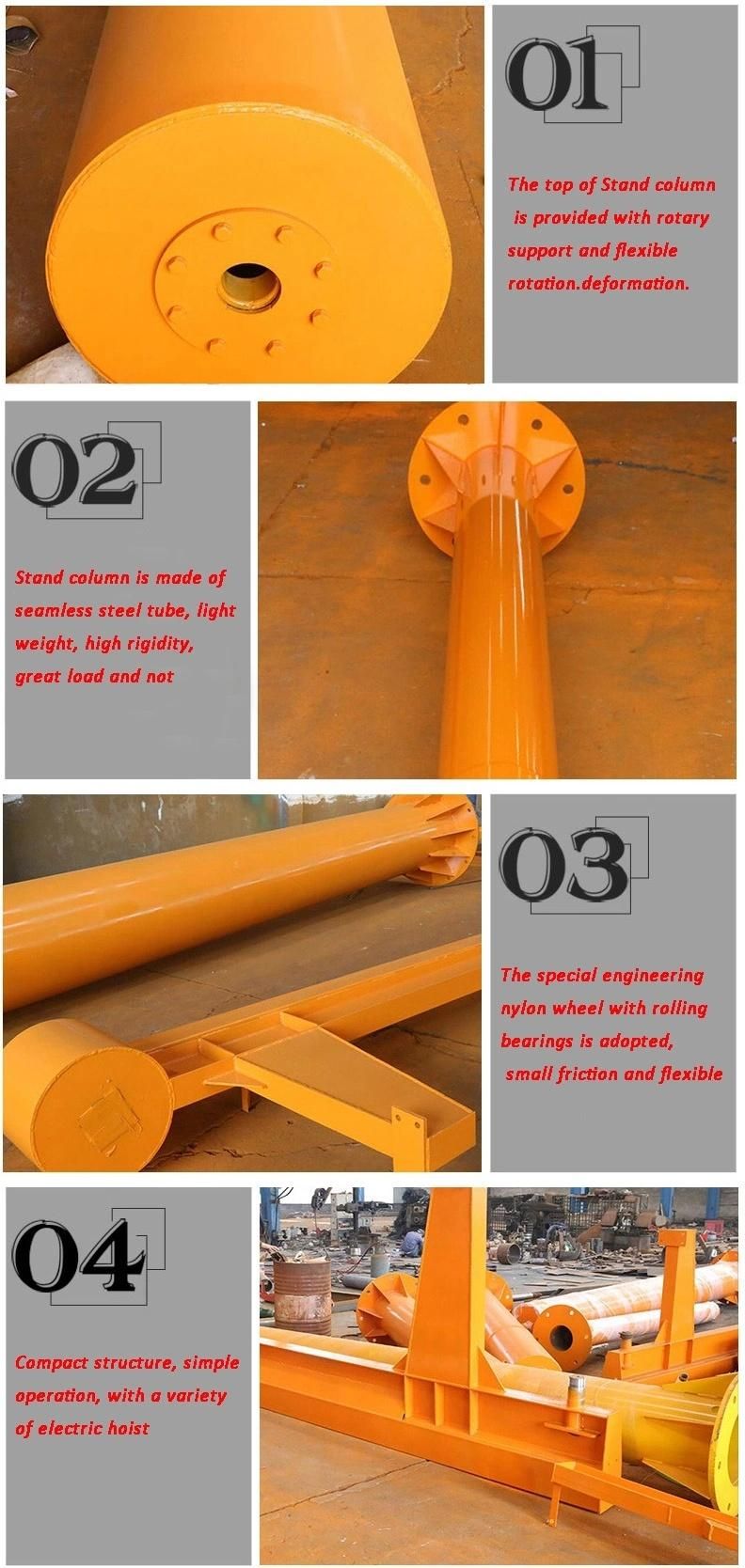

Product feature:
