• Model NO.：LD
• Type：Single Girder Crane
• Span：7.5-22.5m
• Lift Speed：8,0.8 M,Min
• Travel Speed：20 M,Min
• Work Duty：A3-A5
• Lift Height：6-30m
• Rail：24kg,M

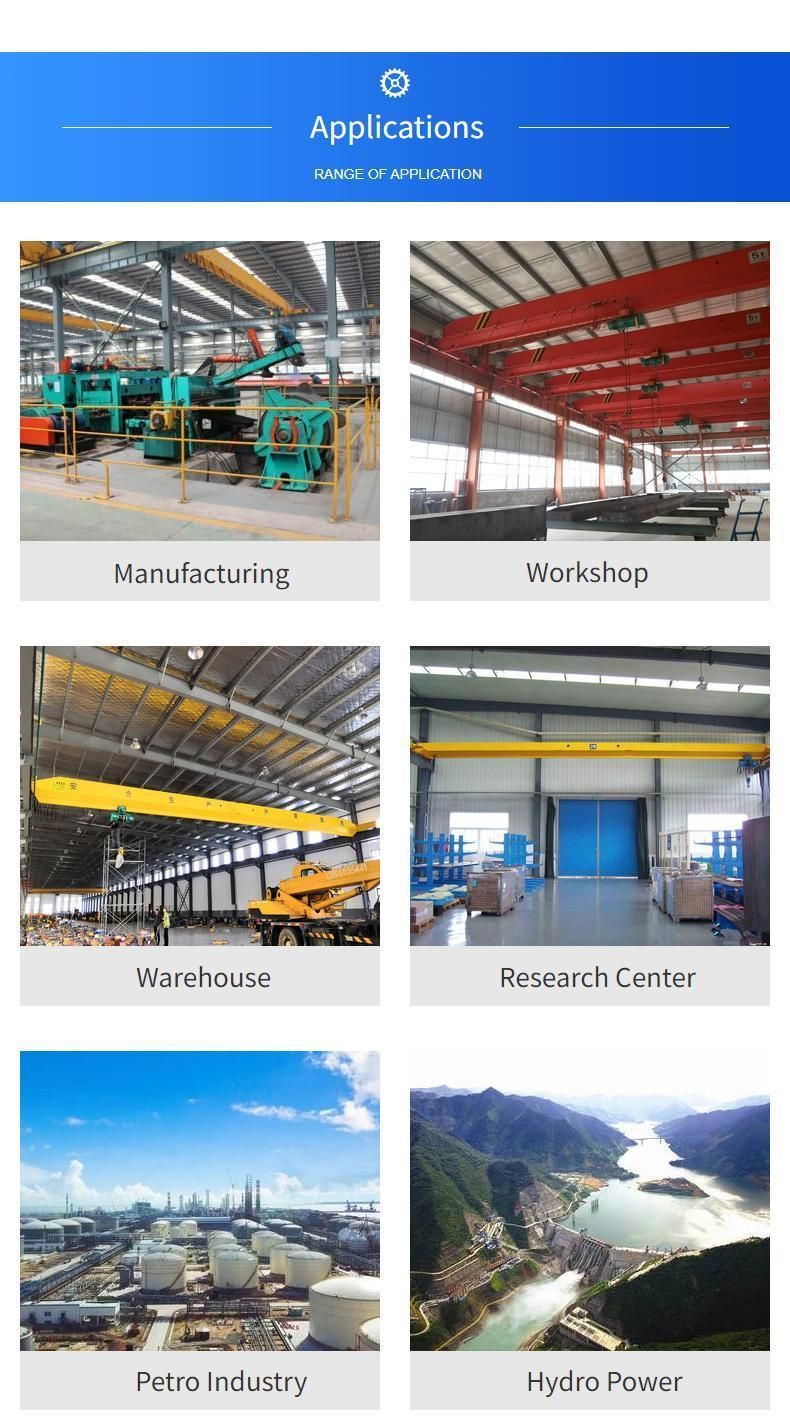

• Application：Construction Usage, Container Usage
• Affiliate Documents：English Operation Manual, Wiring Diagram
• Electrical System Brand：Good Brand
• Stepless Speed Control：Available (Variable Frequency Control)
• Transport Package：Strong Wooden Box
• Specification：CE
• Trademark：LYFOO
• Origin：Beijing, China
• HS Code：84253190
• Production Capacity：50000 Units

Overview Product Description

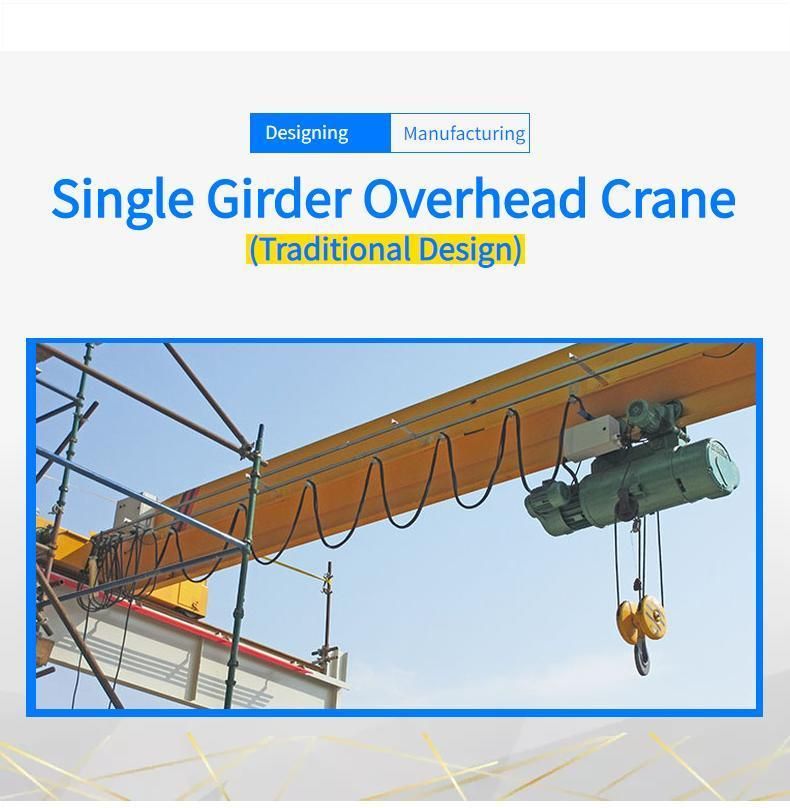

LD type electric single girder overhead cranes is the most commen crane. It has the advantage of light deadweight, little material, low price, easy control and convenient amending. LD type single beam electric bridge crane was recommended by WTO and apply to China standard JB/T1306-94.

Detailed Photos



Our Advantages

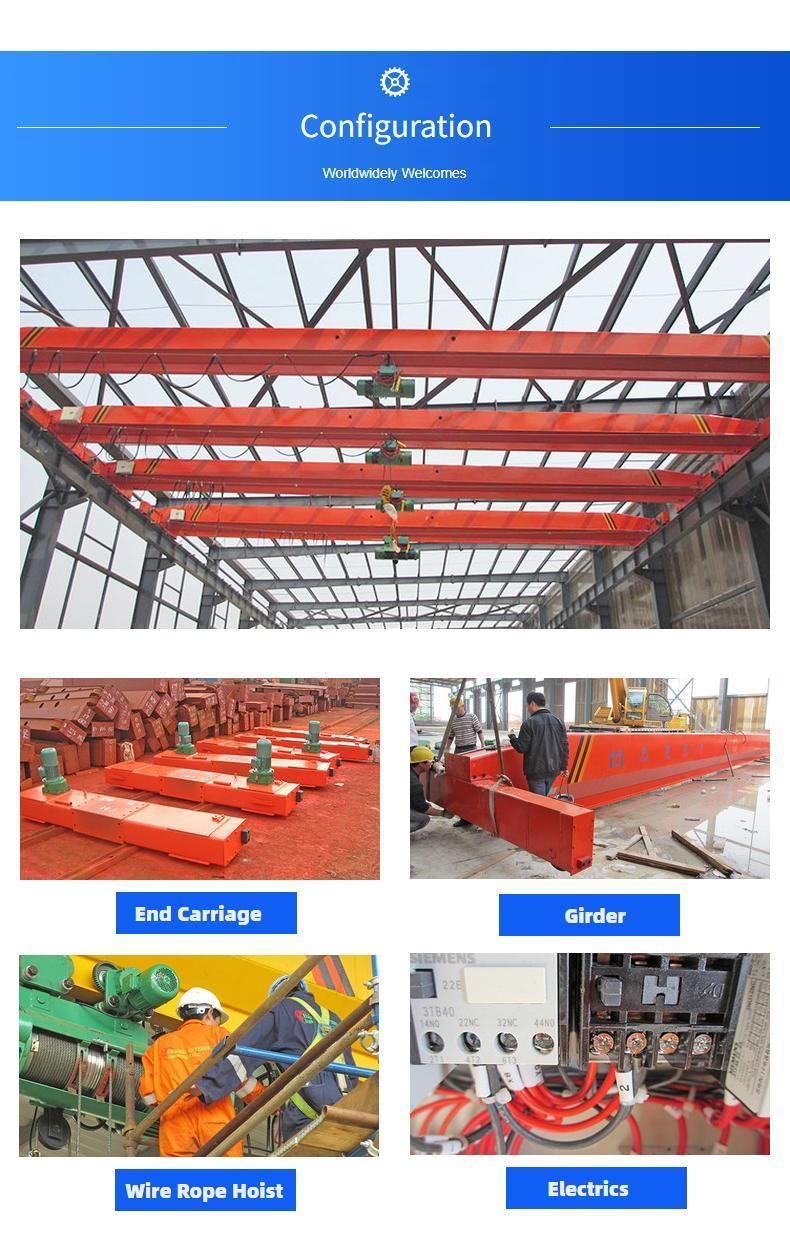

LD type single girder electric crane can be divided into three parts as follow:
1. Steel structure inclueds main beam and end truck
2. Lift equipment, CD/MD or chain hoist. LD crane could have one or two speed.
3. Crane traveling mechanism: Two end carriages with wheels driven by electric motor.

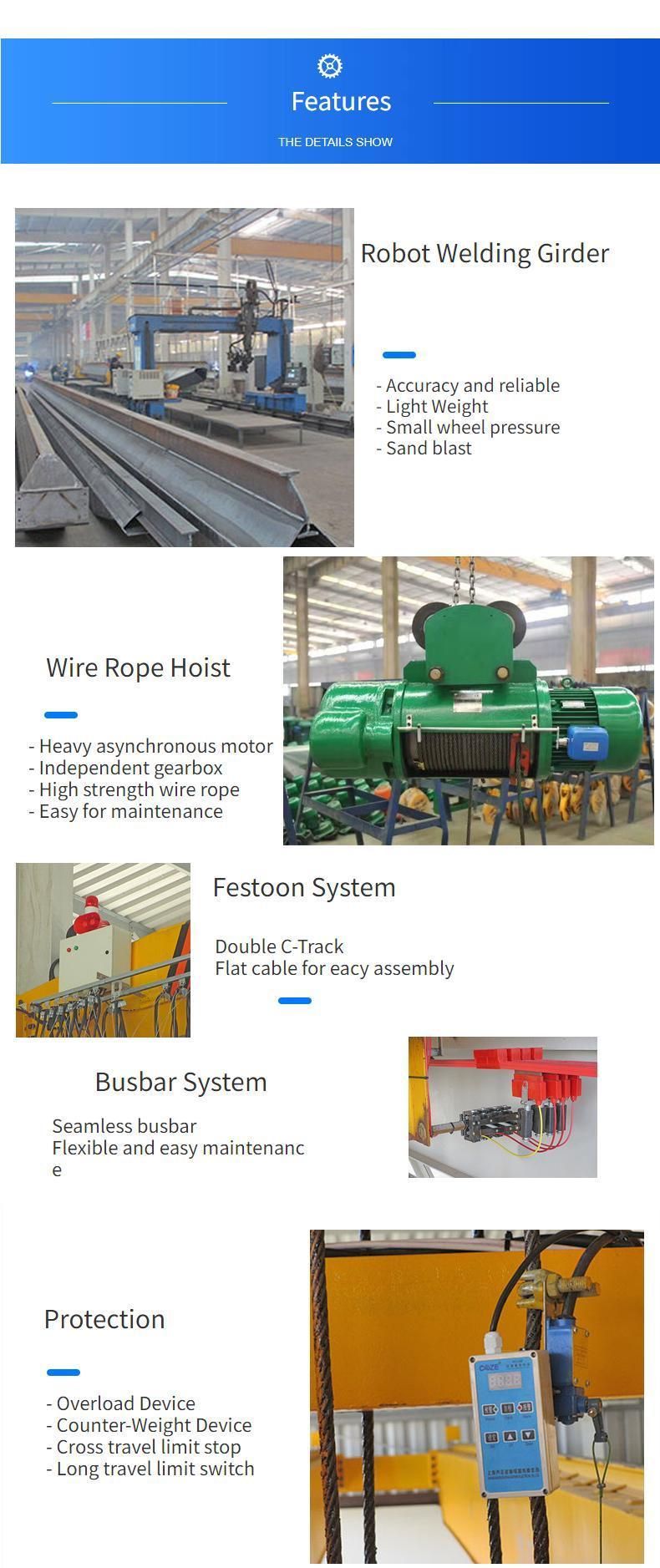

LYFOO Crane possesses the following features:

1. The quality of the main girder decides use age and use cost of the crane. "shengqi" consummately adopt European most advanced design and manufacture craft of the main girder. Mail girder wear well , not only let user ease use, but also low maintenance cost.

2. The up camber curve of main girder adopt optimize 4 times curve, ensure traveling have no upgrade resistance when full loading. Overcome the disfigurement of traveling motor overload traveling and trolley slide traveling.

3. End carriage is box girder, and the connection between end carriage and main girder adopt high strength bolt, in order to transport conveniently.

4. Optimize structure design, bearing layout reasonable , bear horizontal force, improve use age of the bearing.

5. The connections of every mechanical part are gears, in order to achieve simple installation and convenient maintenance. The drive wheel group and driven wheel group are all supported on crescent bearing box , convenient for disassembly and adjust.

Specification:

1. Capacity range: 0.5-20 ton.
2. Span length: 6-32m
3. Lifting height: 7.5-32m
4. Electric hoist: CD/MD Model.
5. Motors: Nanjing Zongchang (Best in China. )
6. Power supply: 380V/50Hz or as per client's requirement.

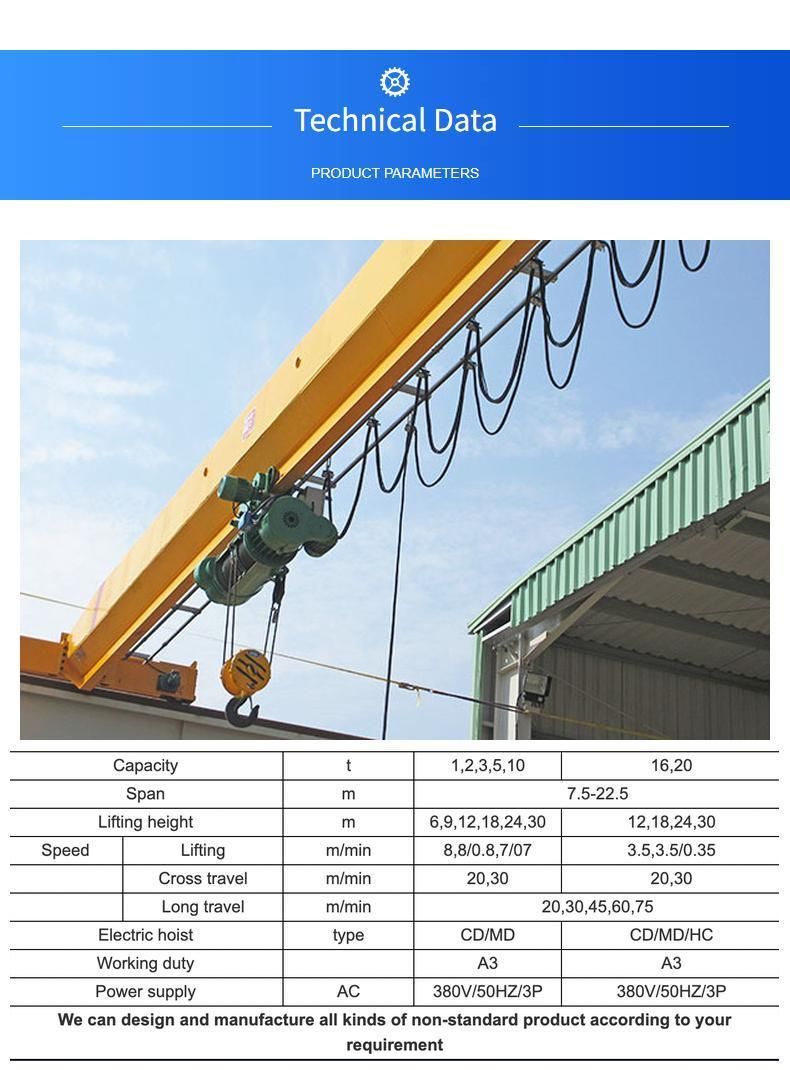

Some Technical ParameterCrane traveling mechanism Performance parameters 1-5t10tTraveling Speed (m/min)2020Reduction Ratio (i)3838MotortypeYESpower2×0.42×0.8Rotational speed1200Working SystemA5Power supply3phrase  380V    50HzWheel diameterФ200Width of Track37-70mm
Safety feature:

1. Limit switch.
2. Overload stop device for hoisting.
3. Long bearing buffer for crane traveling.
4. Power faliure backup.

Notice: As this kind of crane is customized, in order to offer you most suitable design and solution, please confirm following information when you send inquiry.

1. Lifting capacity.
2. Span length. (rail center to rail center)
3. Lifting height. (hook center to ground)
4. Do you need bus bar, rail from us?
5. Local power supply 380V 50Hz 3P?
6. Working condition: What goods to lift?
7. Drawings of working place would be appreciated.
