Cheap Mini Truck Crane 10ton 20ton 50ton Price

Sinomada Heavy Industry (Changsha) Co., Ltd.
  • After-sales Service：Free Spare Parts
  • Warranty：One Year
  • Certification：CE, ISO9001
  • Condition：New
  • Maximum Lifting Height：>40m
  • Maximum Lifting Weight：>16t

Base Info

  • Model NO.：ZTC350H552
  • Shaft Number：2
  • Crane Jib：Five-Arm
  • Type：Folding
  • Overall Weight：55000kg
  • Rated Power：210kw,2500rpm
  • Rear Axle Load：27800kg
  • Front Axle Load：27200kg
  • Transport Package：Nude
  • Specification：14680*3340*3810mm
  • Trademark：Sinomada
  • Origin：China
  • HS Code：87051093
  • Production Capacity：1000 Units , Month

Description

Overview Product Description
  • Product Parameters



    ItemUnitValueRemarksWorking    performanceMax. rated lifting capacitykg35000 Max. load moment of basic boomkN.m1132 Max. load moment of main boom(fully extended)kN.m617.5 Max. load moment of basic boomm11.1 Max. lifting height of main boomm44The parameters do not include deflection of main boom and jibMax. lifting height of jibm60Working    speeds              Max. hoist rope speed(Main winch)m/min120At the 4th  layerMax. hoist rope speed(Auxiliary winch)m/min100At the 2nd   layerBoom demrricking up times40 Boom demrricking up times80 Slewing speedr/min

    0 - 2.2

     Driving
         parametersMax. driving  speedkm/h78 Max. gradeability%37 Min turning diameterm≤22 Min. ground clearancemm220 Oil consumption per hundred kilometersL35 MassDeadweight in driving conditionkg32000 Complete vehicle kerb masskg31870 Front axle loadkg7000 Rear axle loadkg25000 DimensionsOverall   dimensions(L×W×H)mm12900×2500×3465 Longitudinal distance between outriggersm5.36 Transversal distance between outriggersmFully    extended:6.10 m
         Intermediately extended:4.20 m Tail slewing radiusmm3385 Main boom lengthm10.6    - 40.0 Boom angle°-2    - 80 jib lengthm8.0 Offset°0,30

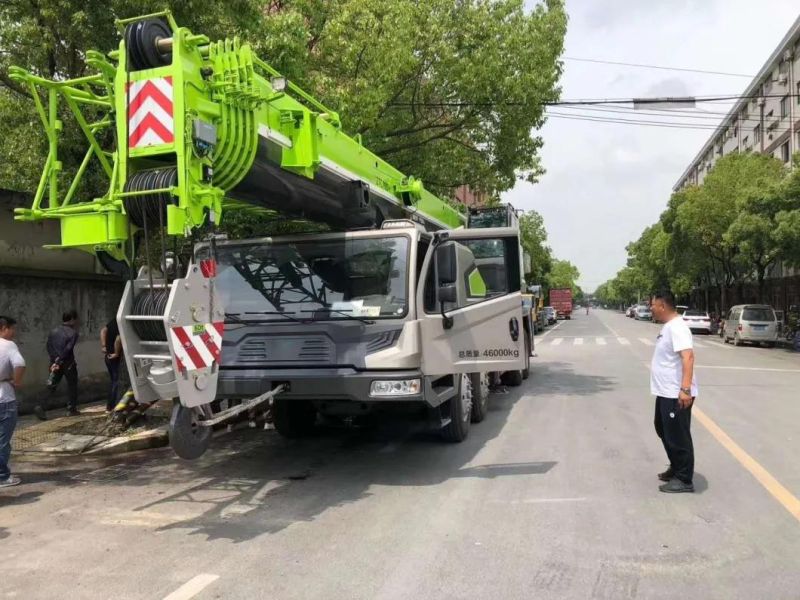

    Detailed Photos
