• Model NO.：ZZ1257S4647
• Type：Straight Arm
• Color：Red Yellow Green White Black Blue
• Driver Seat：Air Suspension Seat
• Warranty：One Year or 100000km Which Comes First
• Configuration：Can Be Changed as You Request
• Transport Package：Nude Packing
• Specification：25 tons loading capacity
• Trademark：SINOTRUK HOWO
• Origin：China
• HS Code：8704224000
• Production Capacity：3000units,Year

Basic Info.

Model NO. ZZ1257S4647 Type Straight Arm Color Red Yellow Green White Black Blue Driver Seat Air Suspension Seat Warranty One Year or 100000km Which Comes First Configuration Can Be Changed as You Request Transport Package Nude Packing Specification 25 tons loading capacity Trademark SINOTRUK HOWO Origin China HS Code 8704224000 Production Capacity 3000units/Year

Product Description

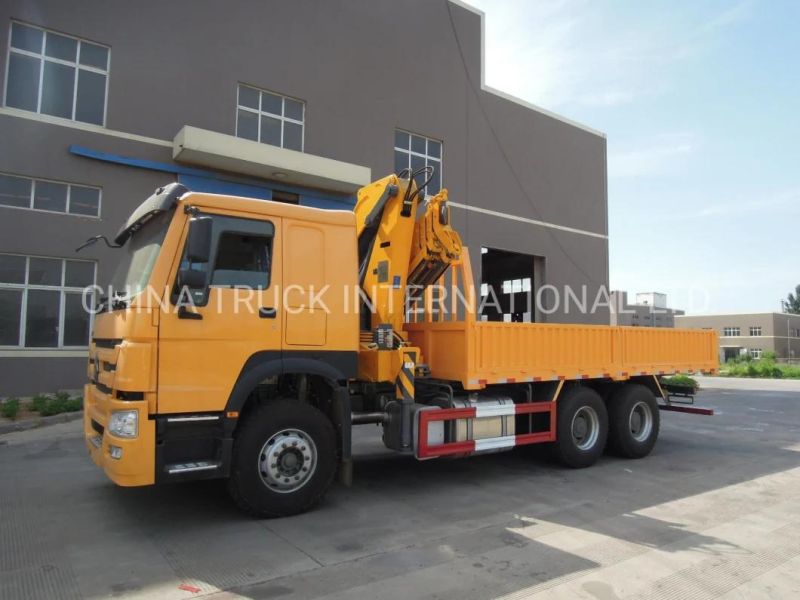

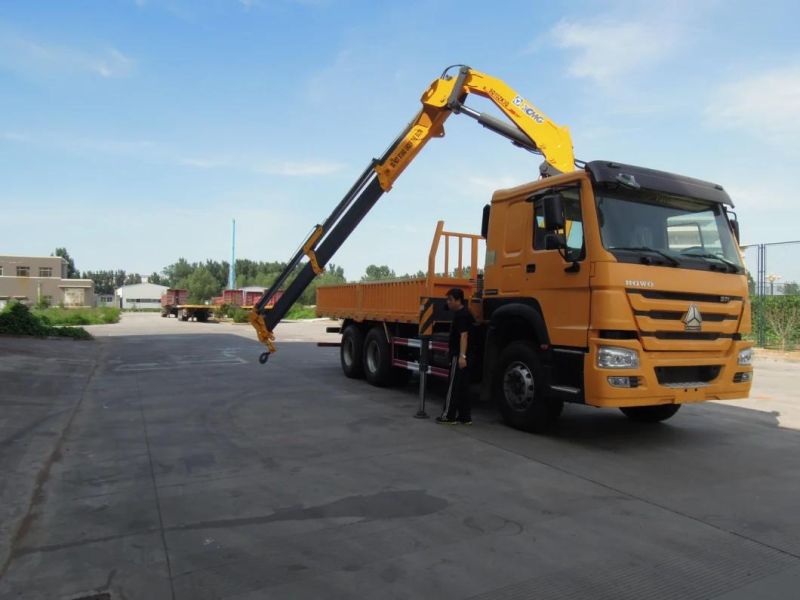

Sinotruk HOWO 6X4 Truck Mounted Crane
Product Description
Sinotruk HOWO 6X4 10 wheeler truck Mounted Crane
Our main products include full series products of CNHTC(HOWO,STR,Golden Prince,etc.), buses, trailers, including dump truck, tractor truck, concrete mier truck, sprinkler truck, water/Oil tank truck, truck mounted crane, concrete pump truck.etc, low bed semi-trailer, flatbed semi-trailer, bulk cement semi-trailer, skeleton semi-trailer and spare parts for them.

1. Technological Specifications

Chassis Model	ZZ1257S4647  Driving type:6x4
Gross weight kg	25000
Loading capacity (kg)	24000
Curb weight  ( kg)	11360
Engine	Model: WD615.47 371HP EURO II emission standard 4-stroke direct injection diesel engine Maximum output: 371HP(273KW) at 2500rmp
Cab	HW76 Long cab with one sleeper, air conditioner Left hand drive (Right hand drive is optional)
Transmission	HW19710, HOWO 10 shifts gearbox
Steering	ZF8098, German hydraulic steering with power assistance
Number of axle	3
Driving axle	HC16, casting axle, strength wheel side reducer , rated loading capacity:16T
Front axle	HF9, 9 Tons loading capacity
Front/Rear track(mm)	2022/1830
Overhang front/rear(mm)	1500/2625
Wheel base (mm)	4600+1350
Tires	12.00-20, tubeless tires, with one spare tire
Approach/departure angle	16/12 (°)
Maximum speed(km/h)	102
Cargo Box dimension(mm)	6650x2300x600,  Side 1.5mm, Floor is 3mm.
Crane model	SQ6.3SK2Q, two-section boom, turning scope 360degree
Elevating capacity of crane	6300kg/2.5m, 2900kg/3.82m, 1600kg/6.17m, 1200kg/8.5m
Color	Red, Yellow, Green, White, Blue
Overall sizes (mm)	10,350X2,496x3,048

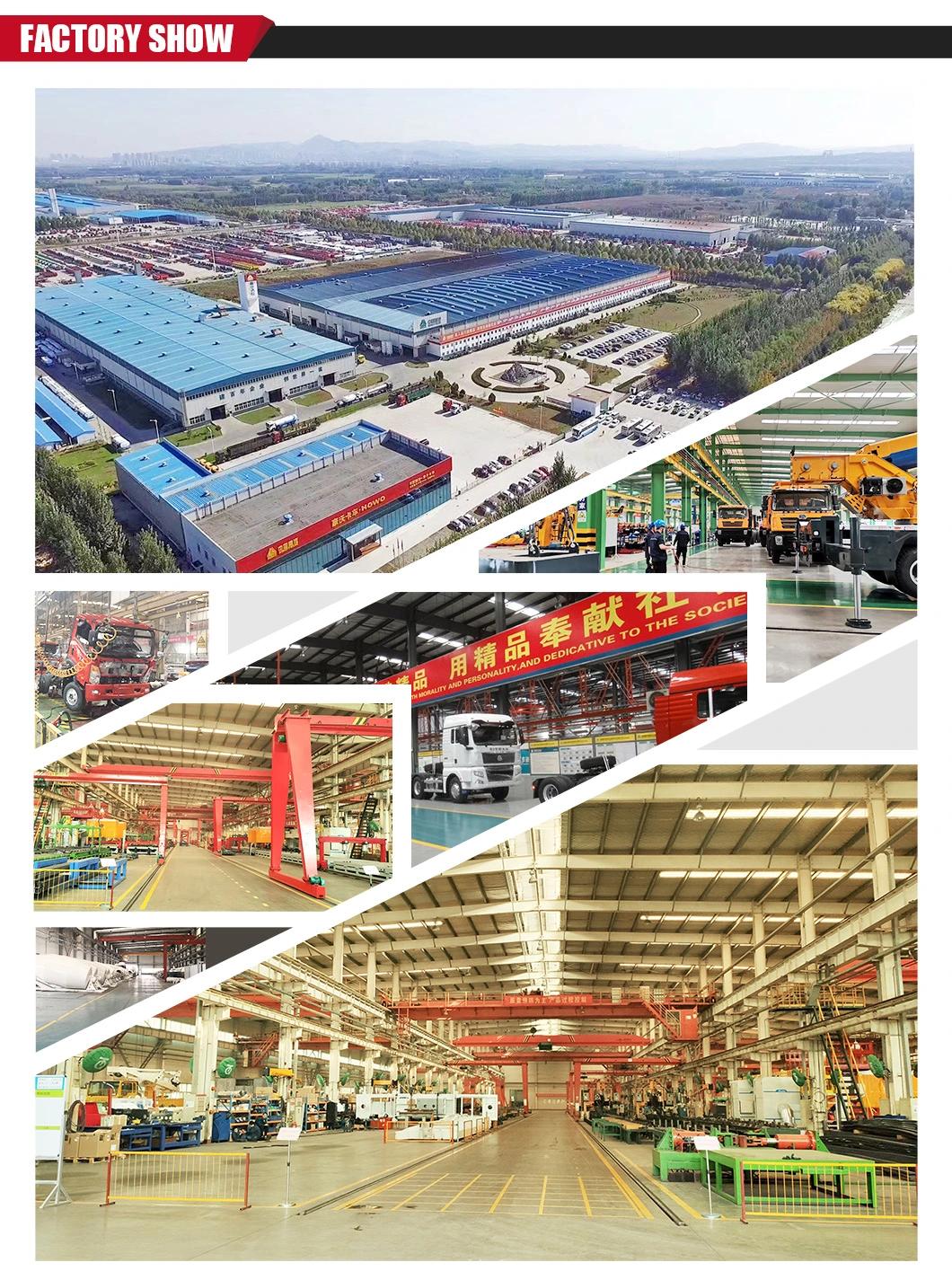

3. Our Factory


4. Packing and Shipping
Packing : Nude packing after painting wax or according to your requirement.
Shipping:By bulk cargo carrier, RORO

5. Our Advantages
(1)Competitive Factory Price and Excellent Quality
(2)More than 20 years' experience as a manufacturer
(3)Products Quality Certification SGS CCC ISO
(4)Perfect after-sale service
(5)Customized products available with us
(6)Export to more than 50 countries and regions

6. Main products



7. FAQ

Q1: I want the front two tires are bias tires and the rear 9 tires are radial tires, is it ok ?

A: We can make the tires as your requirement to suit your country's need.

Q2: What about your products quality ?

A: Quality is our culture! "Our factory has advanced production technology and management team!     We always attach great importance to quality controlling from the very beginning!

Q 3: Can i have samples of this type of flatbed semi trailer to test the quality ?

A: Yes, you can buy any samples to test the quality,our MOQ is 1 unit.

Q 4: What others we can do ?

A: According to your order, we will provide the best price and quality trucks and trailers.     And we are well capable in offering overseas after-sales service. Besides, we also provide rational     packing and shipping program,let shipment save money and security.

Q 5: How to guarantee customers get the goods smoothly after they pay ?

A: Don't worry, dear. We have been in this field for 10 years, we will send you production photos once in a while, and we will help you to book the latest ship.

Q 6: What's the delivery time ?

A: The delivery time is within 15 working days after receiving your advance payment.

Q 7: Can you supply some quick-wear truck or semi trailer parts ?

A: Yes, we can supply truck and semi trailer parts as your request,such as oil filter, fuel filter, air filter, traction, traction pin, balance   beam and semi-trailer plate spring, hanging accessories, turntable, all kinds of trailer brake pads,   brake pan, bearings etc.

Q 8:  Do you have any used truck and semi trailer for sale ?

A: We have some trucks and trailers in stock for choice, from 2010-2016 year, the price are favorable. We'll    show you our stock if you need.

Q 9:  Which INCOTERMS 2010 TERMS can we work ?

MAOWO is a professional and sophisticated international player, can handle all INCOTERMS    2010 terms, and we normally work on FOB, CFR, CIF, CIP, EXW.

Q 10:  What logistics ways we can work for shipment?

A: We can ship construction machinery by various transportation tools.    (1) For 80% of our shipment, we will go by sea, to all main continents such as South America,     Middle East, Africa, Oceania etc. Either by container or RoRo/Bulk shipment.     (2) For neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Uzbekistan , Vietnam, Laos  etc.,we can ship construction machinery by road or railway.    (3) For light spare parts in urgent demand, we can ship it by international courier service, such as     DHL, TNT, UPS, or Fedex.

8. Warranty
(1) One year quality guarantee or within 100000km, which comes the first.
(2) Other spare part could be supplied by OEM at cost prices.
(3) Regularly callback to know the vehicle's working status.
(4) The overseas engineers are always ready to deal with unexpected needs.


9. Company information
China Truck International Ltd is one of the main exporters of Chinese trucks which is authorized
by Ministry of Commerce
Staff of our company can provide the trucks meeting the requirement of customers at the best price.
We have many years of experience in exporting trucks. We have not only the certificate and license of
truck export and also strict quality management,fast and convenient channel of goods delivery, strict
examination in quality and quantity of products, professional packing, professional and reliable
loading goods,on-time delivery and competitive prices.if you want to buy tractor truck,please contact us.
We sincerely hope to cooperate with you to expand market in your country!
