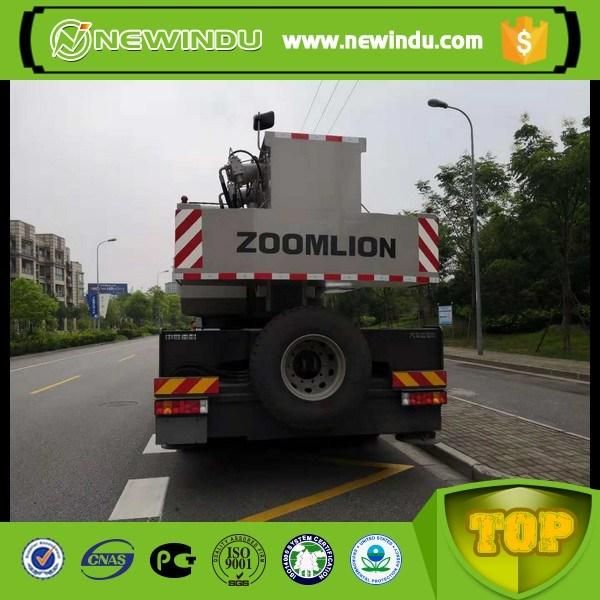

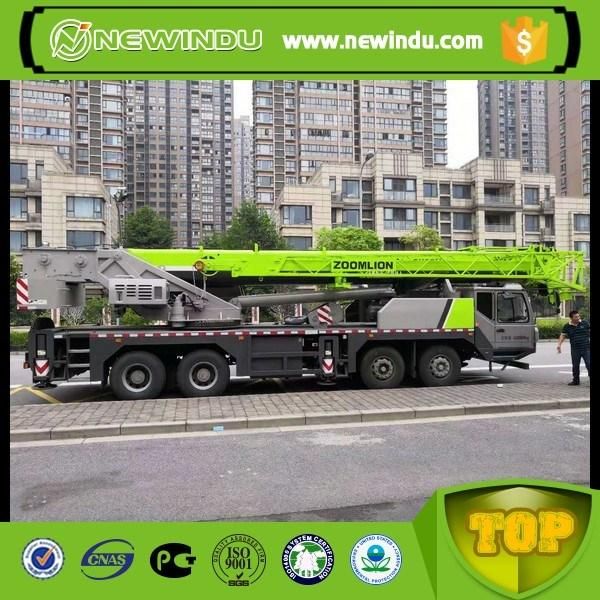

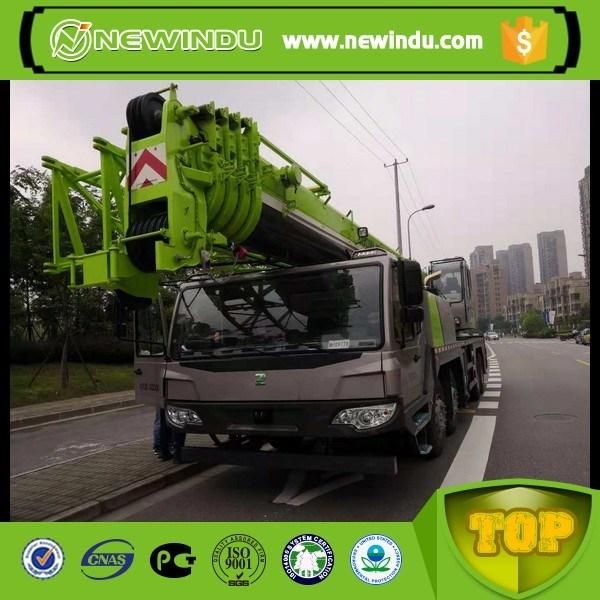

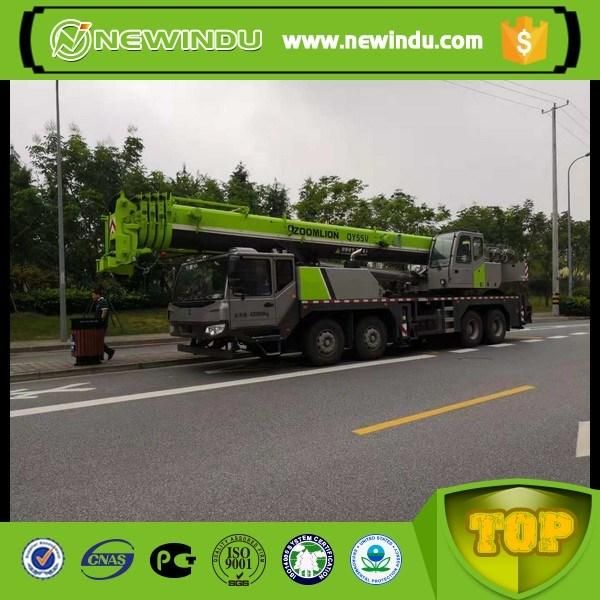

Zoomlion Qy55V 50 Ton 55 Ton Truck Crane
Newindu Construction Engineering (Shanghai) Co., Ltd.- After-sales Service：Spare Parts for Free
- Warranty：One Year
- Certification：GS, RoHS, CE, ISO9001
- Condition：New
- Maximum Lifting Height：30-40m
- Maximum Lifting Weight：11-13t
Base Info
- Model NO.：QY55V
- Shaft Number：3
- Crane Jib：Three-Arm
- Type：Folding
- Max. Lifting Height：42m
- Hydraulic Parts：Telescopic Boom Mobile Crane Made
- Rated Lifting Moment：240 Kn*M
- Span：7.6m
- Max. Lifting Load：3.2t
- Operate System：Computer Board Control
- Boom Length：18meters
- Fully Extended Boom：95meters
- Fully Extended Boom+Jib：45.25meters
- Total Weight in Travel：29.7ton
- Transport Package：Bulk Vessel
- Specification：3.2t
- Trademark：Zoomlion
- Origin：Hunan
- HS Code：8004920
- Production Capacity：50
Description
Item
Value
Remarks
Working performance
Max. rated lifting capacity kg
55000
Max. load moment of basic boom kN.m
2009
Max. load moment of Max. length main boom kN.m
1050
Max. lifting height of basic boom m
12.6
Max. lifting height of main boom m
43.6
These parameters do not include deflection of boom and jib.
Max. lifting height of jib m
59.5
Working
speeds
Max. hoist rope speed (Main winch) m/min
120
Max. hoist rope speed (Auxiliary winch) m/min
120
Boom derricking up time s
50
Boom telescoping out time s
95
Slewing speed r/min
0 - 2.2
Driving
Max. driving speed km/h
76
Max. gradeability %
40
Min. turning diameter m
≤24
Min. ground clearance mm
260
Oil consumption per hundred kilometer L
43
Weight
Deadweight in driving condition kg
42000
Complete vehicle kerb mass kg
41870
Front axle load kg
16000
Rear axle load kg
26000
Dimension
Overall dimensions (L×W×H) mm
13700X2800X3650
Longitudinal distance between outriggers m
5.92
Transversal distance between outriggers m
Completely extended:7.10m, intermediately extended:4.80m
Tail slewing radius mm
3900
Main boom length m
11.4 - 43.0
Main boom angle °
-2 - 80
Jib length m
9.5, 16.0
Offset °
0, 30
