China Factory Customized 4-5 Meters Cargo Box HOWO Mounted with Clw Telescopic Boom Arm Crane Truck

Hubei Weiyu Special Vehicles Co., Ltd.
  • Certification：GS, RoHS, CE, ISO9001
  • Condition：New
  • Maximum Lifting Height：10-15m
  • Maximum Lifting Weight：2-4t
  • Shaft Number：2
  • Crane Jib：Three-Arm

Base Info

  • Model NO.：CLW5089SCD
  • Type：Straight Arm
  • Chassis Brand：HOWO
  • Engine Brand：Yuchai Brand
  • Engine Capacity：118kw
  • Displacement：4.615liter
  • Truck Engine：Euro 2, Euro 3, Euro4
  • Gearbox：5 Foward & 1 Reverse
  • Crane Brand：Sany Palfinger, Clw
  • Crane Capacity：4ton
  • Crane Boom Type：Straight Arm
  • Boom Type：Straight 3-Arm Telescopic Boom
  • Box Size：4100X2200X500mm
  • Box Material：Q235 Carbon Steel
  • Box Thickness：Side 1.5mm, Bottom 2.5mm
  • Tire：8.25r20
  • Warranty：1 Year
  • Transport Package：Naked, Waxed, Bulk Ship, RO-RO
  • Specification：3ton to 5ton
  • Trademark：CLW
  • Origin：Suizhou, China
  • HS Code：8705909090
  • Production Capacity：500 Unit,Month

Description

ModelZZ1127G5215C1Cabin2080 King Cab, with two seats and one bed, with Air Conditioner.
EngineModelYC4E160-33Horse Power (Hp/rpm)160/2600, Euro III Emission StandardMax.Torque (Nm/rpm)600/1200-1600Displacement (L)4.257
 Type4-cylinder in-line with water cooling, 4-stroke direct injection diesel engineTransmissionDC6J65TC, 6 speeds forward and 1 speeds reverse.Front AxleSteering with double T-cross section beam, Loading Capacity: 3.2TDriving AxlePressed axle housing, central reduction, loading capacity: 8TSuspensionFront suspension: hydraulic telescopic double-action shock absorbers and stabilizer; Rear suspension: leaf semi-elliptic springs, bogie spring and stabilizerSteering SystemHydraulic steering with power assistanceBrake SystemService brake: Dual circuit compressed air brake; Parking brake (emergency brake): Spring energy, compressed air operating; Auxiliary brake: Engine exhaust brakeTire9.00R20Fuel Tank Capacity (L)120L Diesel TankKurb Weight (kg)10,500Loading Capacity (kg)12,500Gross Vehicle Weight (kg)23,000Overall Dimension(L*W*H)(mm)8100×2200×3500Body Dimension(L*W*H)(mm)6000×2100×600ModelSQ4SK2QMax Lifting Moment8.4 tmMax Lifting Capacity4000 kgRecommend Power Needed At Recommend Oil Flow16 kwMax Oil Flow of Hydraulic System25 L/minRated Pressure Of Hydraulic System20 MpaOil Tank Capacity60 LRotation Angle(360°)All RotationCrane Weight1271 KgsInstallation Space850 mmWheelbase(mm)5200Max. Speed (km/h)90

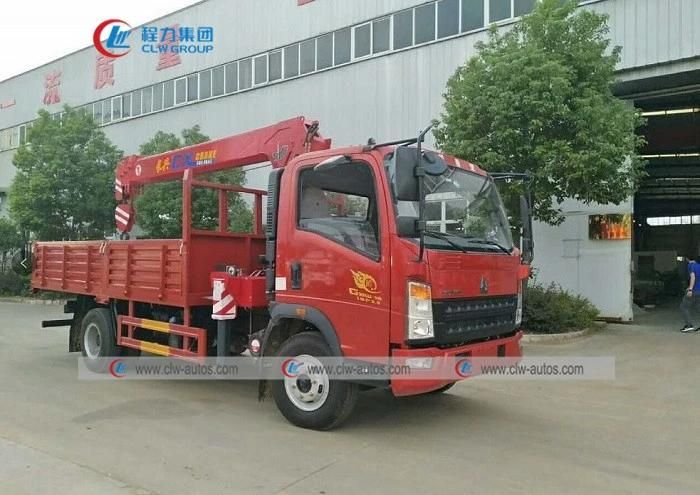

Reference Photos
China Factory Customized 4-5 Meters Cargo Box HOWO Mounted with Clw Telescopic Boom Arm Crane Truck

China Factory Customized 4-5 Meters Cargo Box HOWO Mounted with Clw Telescopic Boom Arm Crane Truck

Working Scene

China Factory Customized 4-5 Meters Cargo Box HOWO Mounted with Clw Telescopic Boom Arm Crane Truck
