• Model NO.：ZTC250V451
• Shaft Number：3
• Crane Jib：Five-Arm
• Type：Straight Arm
• Max.Rated Lifting Capacity：25tons
• Max. Gradeability：37%
• Max. Travel Speed：78 Km,H
• Installation：Assembled
• Operate System：Computer Board Control
• Tower Crane Type：Under Slewing Cranes
• Unique Selling Point：High Operating Efficiency
• Application：Construction Usage
• Engine Model：Weichai Engine
• Gearbox：6 Gear Synchronizer Gearbox
• Machine：Lifting Equipment
• Delivery Time：30days After Deposit Payment
• Hydraulic Parts：Telescopic Boom Mobile Crane Made
• Colour：White
• Power Source：Hydraulic
• Transport Package：Nude
• Specification：12800*2500*3430
• Trademark：Zoomlion
• Origin：Hunan, China
• HS Code：8004920
• Production Capacity：500pices,Year

ItemValueRemarksWorking performanceMax. rated lifting capacitykg25000 Max. load moment of basic boom
kN.m980 Max. load moment of max. boom lengthkN.m573 Max. lifting height of basic boom m11.5 Max. lifting height of boom m33.8Deformation of the boom is not taken into consideration.Max. lifting height of jib m41.6Working speedMax. hoist rope speed (main winch) m/min120At 4th layerMax. hoist rope speed(auxiliary winch) m/min100At 2nd layerBoom derricking times40 Boom extending times60 Slewing speed r/min0~2.2 Traveling specificationsMax. traveling speed km/h78 Max. gradeability %37 Min. turning diameter m≤22 Min. ground clearance mm220 Limits for exhaust pollutants and smokeMeet with related standardsGB3847-2005
GB17691-2005
(National stage III)Oil consumption per hundred kilometers L45 WeightsDeadweight in traveling condition
kg30000 Complete vehicle kerb mass kg29870 Front axle load kg6800 Rear axle loadkg23200 DimensionsOverall dimensions (L×W×H) mm12800×2500×3430 Longitudinal distance between outriggersm5.36 Transversal distance between outriggers m6.1 Boom length m10.5~33.3 Boom angle°-2~80 Jib length m8 Offset °0, 30 ChassisModelZLJ5325Code: ZLJ5325V3ClassII EngineModelWP10.270 Rated powerkW/r/min199/2200 Max. output torqueN.m/r/min1100/1300~1600 ManufacturerChangsha Zoomlion Heavy Industry Science & Technology Development Co., Ltd.

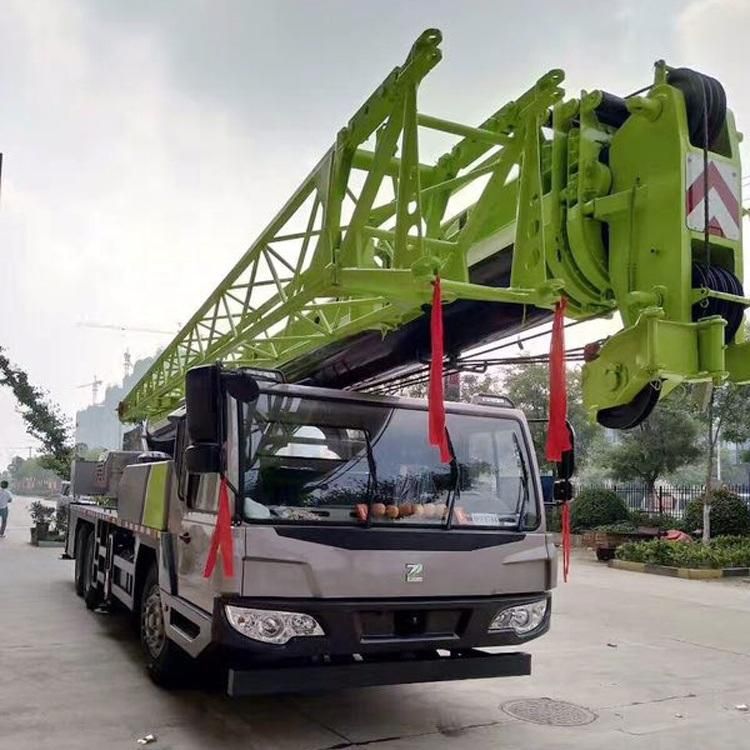

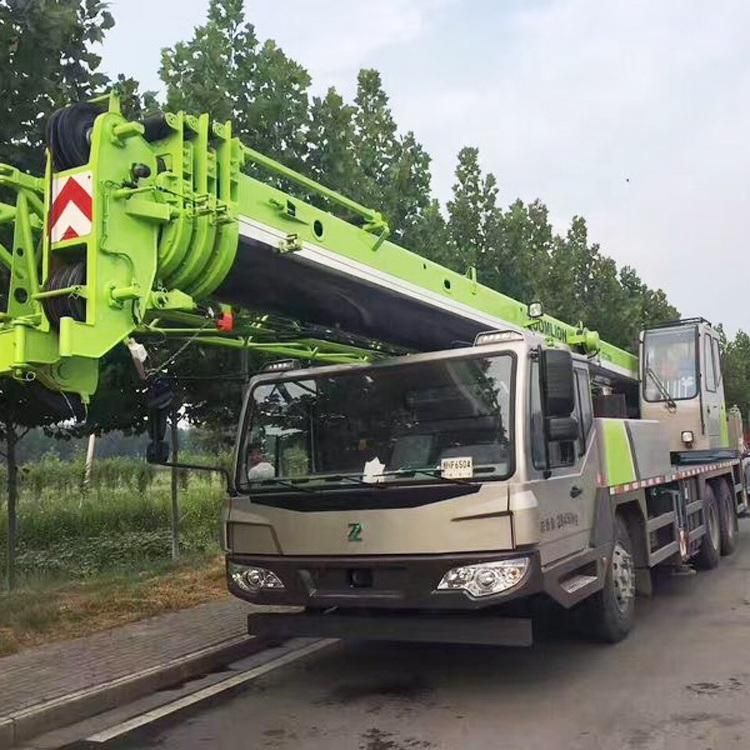

Detail Pictures
