• Model NO.：MH
• Main Girder Form：Single Girder
• Control Voltage：24,36,48V
• Working Temperature：-25°c to 40°c
• Working Level：A3-A5
• Power Supply：3p,380V,50Hz
• Lifting Hoist：Electric Hoist ,Manual Hoist
• Application：Warehouse,Workshop etc
• Transport Package：Normal Exported Package
• Specification：500KG
• Trademark：TXK
• Origin：China
• HS Code：842630000
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. MH Main Girder Form Single Girder Control Voltage 24/36/48V Working Temperature -25°c to 40°c Working Level A3-A5 Power Supply 3p,380V,50Hz Lifting Hoist Electric Hoist /Manual Hoist Application Warehouse/Workshop etc Transport Package Normal Exported Package Specification 500KG Trademark TXK Origin China HS Code 842630000 Production Capacity 50 Sets Per Month

Product Description

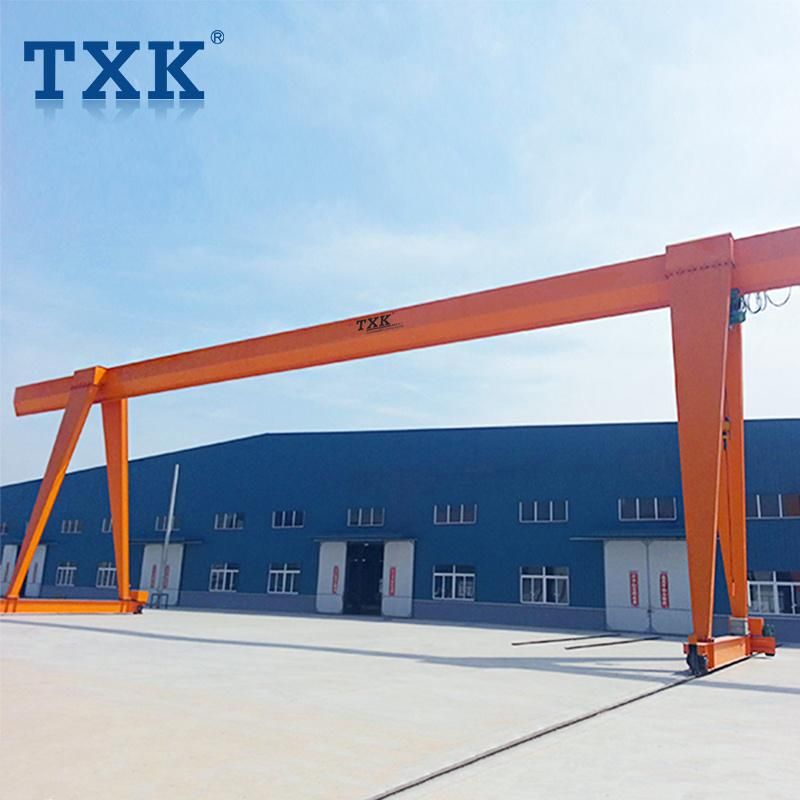

Mobile Gantry Crane:
TXK mobile gantry crane mostly use in small factories daily production .
It is good design and development of small lifting equipment.
Portable design,omni-directional movability,fast to assembly,small volume,use in more than one facility or work area.
Mobile gantry crane  is manufactured for lifting equipment,loading and unloading the warehouse,
maintaining heavry-duty equipment and transporting materials,application for small and medium factory.

Technical details:

No	Descriptions	Reference Data
1	Lift capacity	0.5ton ~ 10 tons
2	Span	2M ~ 12M or as your require
3	Lift height	3M ~ 10M or as your require
4	Work duty	A3 ~ A5
5	Control method	Remote control or Ground operation
6	Electrical parts	CHINT or International brand
7	Motor	Chinese famous brand or International brand
8	Paints	Chinese famous brand
9	Bearings	Chinese famous brand
10	Lift speed	0~8M/Min
11	Cross travel speed	2~20M/Min
12	Long travel speed	3~30M/Min

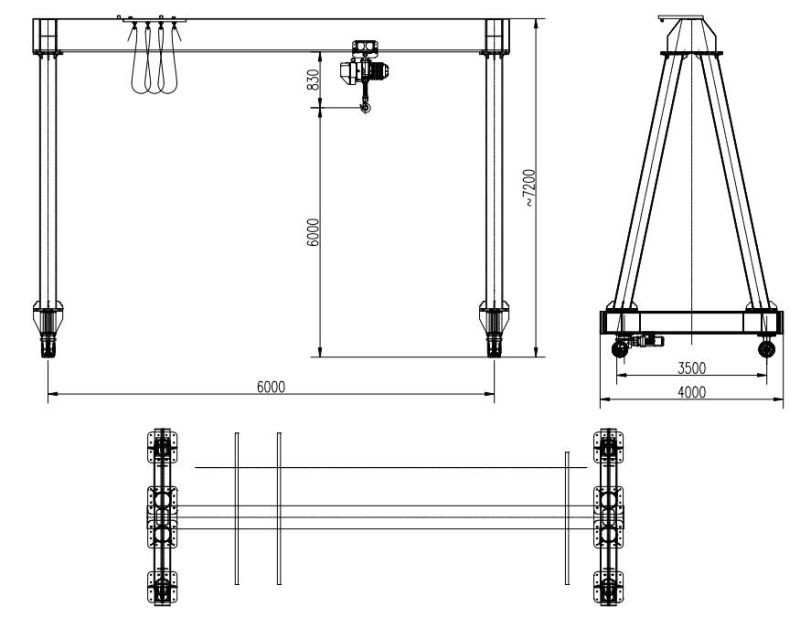

Gantry crane drawing:

Features:

• Crane traveling limit switch

• Weight overload protection device

• Lifting height limit device

• Voltage lower protection function

• Phase sequence protection function

• Emergency stop function

• Rain cover for outside hoist, driving units, electrical cubicle.

• Warning indicator: flashing lights and warning sound.

• Wireless infra-detector for anti-collusion

Company Profile:

"TXK" was founded in 1997 and is a leading manufacturer of lifting and material handling equipments with almost 20 years experience.
We provide quality, safe and stabe products to meet the highest industrial standards. We are ISO9001:2008 certified company.
 our products are GS,CE certified, serving all spheres of industry in the world.

Our bran "TXK" is well sold in more than 50 countries worldwide and has earned an enviable reputation for high quality products.
With our Professional R&D team, we are able to provide customization services with the most professional quality and
never stop meeting the highest standard of safety.

"TXK" will never stop being as an innoative manufacturer. We will continue to develop and extend our products range
with high quality, safety standard and long life usage.

7 Reasons To Trust TXK Hoist:

1.LONGEST HISTORY ANDLONGFEVITY -
TXK is one of the oldest established hoist hoist manufacturer in China with almost 20 years.

3.RICHEST EXPERIENCE IN WORLD BUSINESS -
TXK has more than 10 years experience and s on international trade business.

4.WEDEST PRODUCTS AND SERVICE PROVIDING -
TXK can provide widest products items include electric & manual lifting equipment.

5.FASTEST LEAD TIMES -
TXK factory is equipped with most efficient producing line which handled by skillful workers.

6.FULLEST CERIFICATIONS -
TXK factory and products are well certified by CE, GS, TUV, ISO, SGS, ext.

7.HIGHRST REPUTATION -
TXK products are well sold in more than 50 countries.

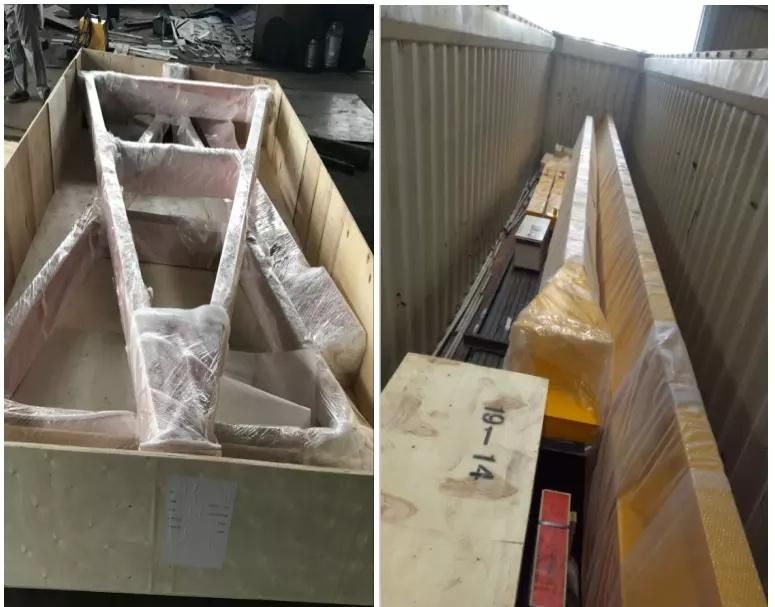

Packages:

1. Electric parts and electric hoist is packed by plywood case

2.Other parts is packed by bubble paper

3.Shipped by HC ,GP Container or Break Bulk Ship

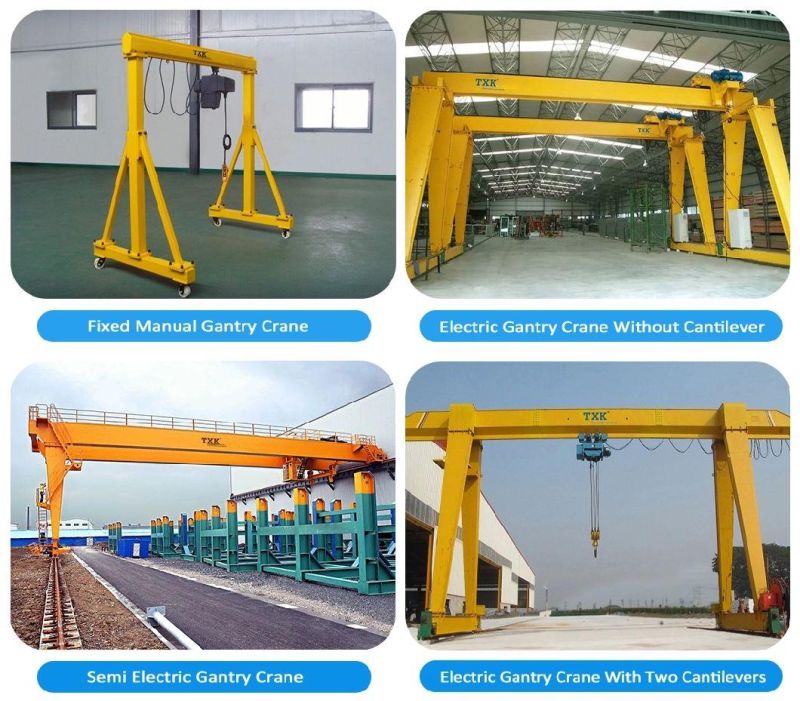

Related Gantry Crane:
TXK brand also produce other types gantry crane below:

FAQ

1. Are you manufacturer or trade Company?
 We are a factory founded in 2006 with trade team for international service.

2. How about sample & MOQ policy?
 Welcome sample order. MOQ can be 1 set.

3. what is your lead time for your goods?
Normally 10days after confirmed order. 7 days could be available for some items in sufficient stock and standard requirements, and 20 days during new year and hot season ( Jan to March).

4.What should I provide when inquiry?
The more information you provide, the accurate solution we can prepare for you!
A- Capacity ?
B- Span ?
C- Manual or electric type?
D- Lifting height?
E- Electric hoist or manual hoist ?
F- Equiped with track/rail? how long of it ?
G- FOB ,CFR or CIF price , which one ?

Contact Us
If you are interested with our products, please don't hesitate to contact us.
You can tell me the items you like, Then I can send you accurate quotation soon, including additional discount!
