• Model NO.：AB-O001
• Shaft Number：3
• Crane Jib：Four-Arm
• Type：Folding
• Logo：CNC or Printing
• Handle：Nylon Rope & PVC Pipe
• Surface：Smooth or Anti-Slip
• Application：Truck Crane, Crawler Crane, Fire Truck
• Material：UHMWPE. HDPE, Nylon
• Shape：Suare, Round, Customized
• Loading Weight：10-200 Tonns
• Thickness：10-250mm
• Size：Customized
• Color：Any
• Production：Colorful Portable Light Weight Jack RV Stabilizer
• Advantage：Heavy Duty, Durable
• Factory：Yes
• Staff：200 Workers
• Annual Output：7000 Tons
• Transport Package：by Pallet
• Specification：600x600x60mm, 500x500x50mm
• Trademark：ABOSN
• Origin：China
• HS Code：3920109090
• Production Capacity：300PCS Per Day

Basic Info.

Model NO. AB-O001 Shaft Number 3 Crane Jib Four-Arm Type Folding Logo CNC or Printing Handle Nylon Rope & PVC Pipe Surface Smooth or Anti-Slip Application Truck Crane, Crawler Crane, Fire Truck Material UHMWPE. HDPE, Nylon Shape Suare, Round, Customized Loading Weight 10-200 Tonns Thickness 10-250mm Size Customized Color Any Production Colorful Portable Light Weight Jack RV Stabilizer Advantage Heavy Duty, Durable Factory Yes Staff 200 Workers Annual Output 7000 Tons Transport Package by Pallet Specification 600x600x60mm, 500x500x50mm Trademark ABOSN Origin China HS Code 3920109090 Production Capacity 300PCS Per Day

Product Description

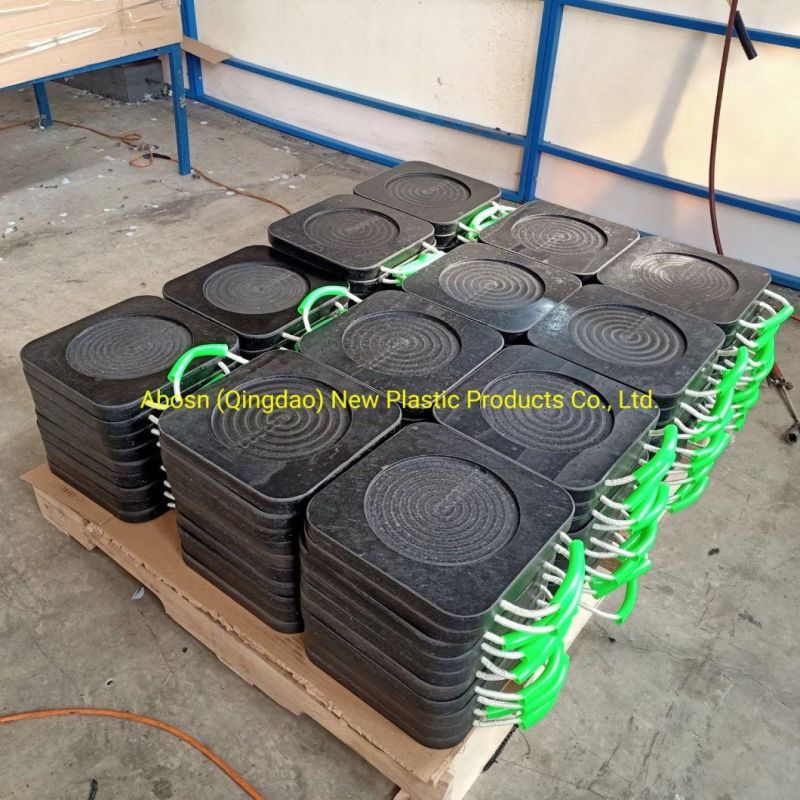

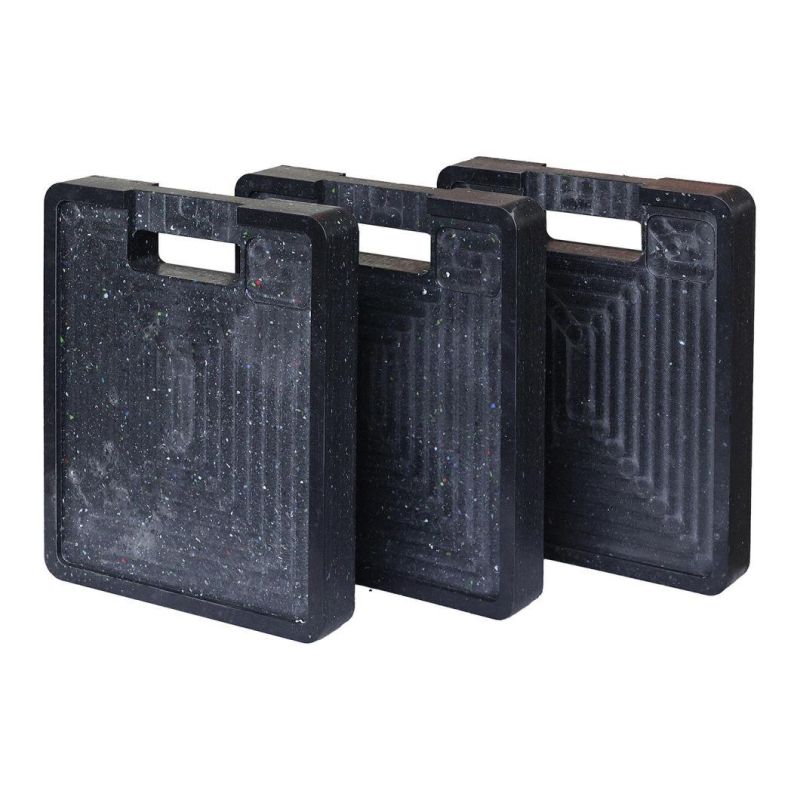

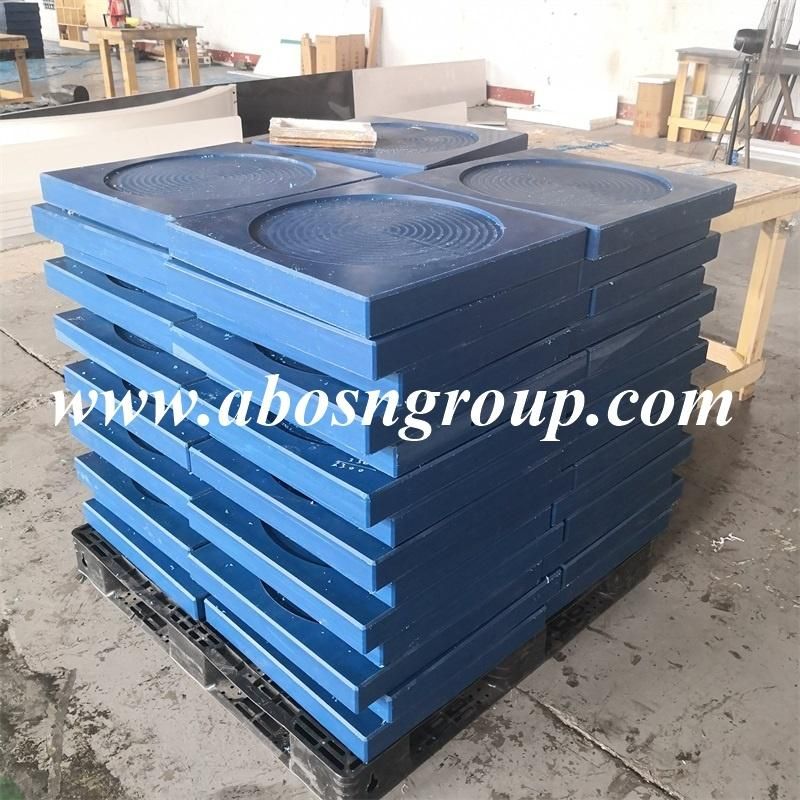

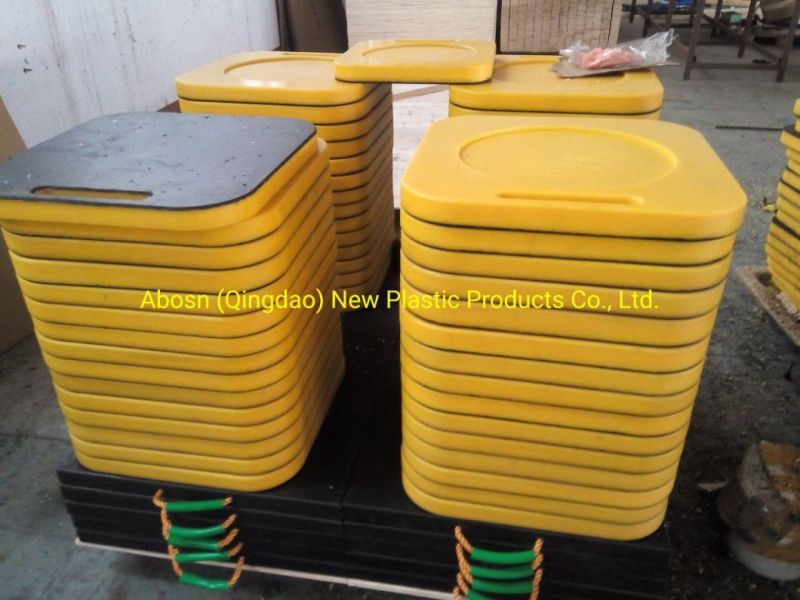

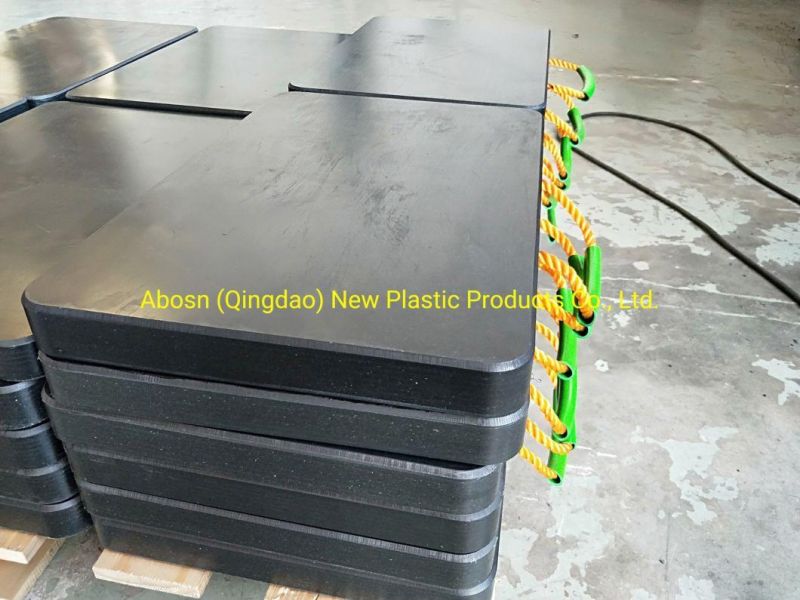

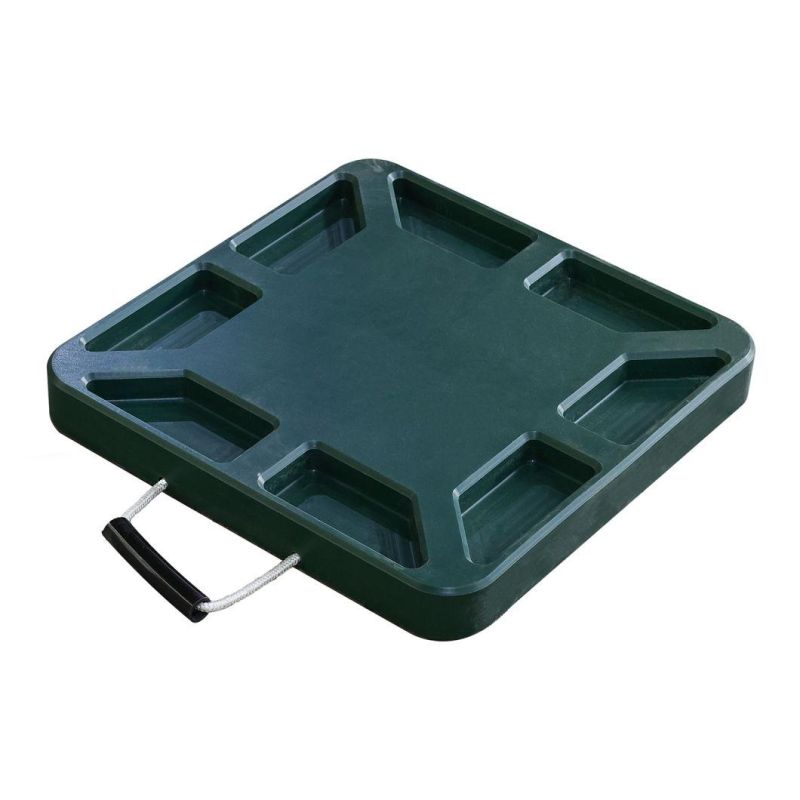

Colorful Portable Light Weight Jack RV Stabilizer Crane Foot Support Outrigger Pad

Colorful Portable Light Weight Jack RV Stabilizer Crane Foot Support Outrigger Pad provide the same safety and stability afforded to heavy industry to your own recreational vehicle. They are made of the same UHMW engineering plastic as our larger pads and provide exceptional stability. All it takes is the failure of one wooden pad to cause very expensive damage to your RV or even worse, possible injury.

• Lightweight, 1/7th The Weight Of Steel
• Withstands Loads Up To 3000 psi
• Retains Its Physical Properties To -80°c
• Will Not Corrode, Rot, Or Rust
• High Impact & Wear Resistance
• Can Withstand Over 1,000,000 Lbs Of Compressive Load
• Rope Handles Included
• Custom Sizes and Shapes Available


Upgrades are Available Including:

• SAFETY TEXTURING - Non Slip Varieties Available (please email us)
• CUSTOM Sizes and Shapes Available
• Anti-Slip Varieties

ABOSN Colorful Portable Light Weight Jack RV Stabilizer Crane Foot Support Outrigger Pad provide a super strong, rigid and easy to use foundation for a wide variety of outrigger enabled equipment. Constructed of engineered thermoplastic material, with a crush rating up to 750 psi and maximum allowable load ratings up to 300,000 lbs., ABOSN Colorful Portable Light Weight Jack RV Stabilizer Crane Foot Support Outrigger Pad deliver the strength, stiffness and reliability you can trust.

1. Different surface -Solid Stabilizer Plate Unbreakable Scaffolding Support Pads
A Smooth Surface       B Circle in Middle       C Rhombus pattern in surface       D Anti-slip Surface
2. Handle -Solid Stabilizer Plate Unbreakable Scaffolding Support Pads

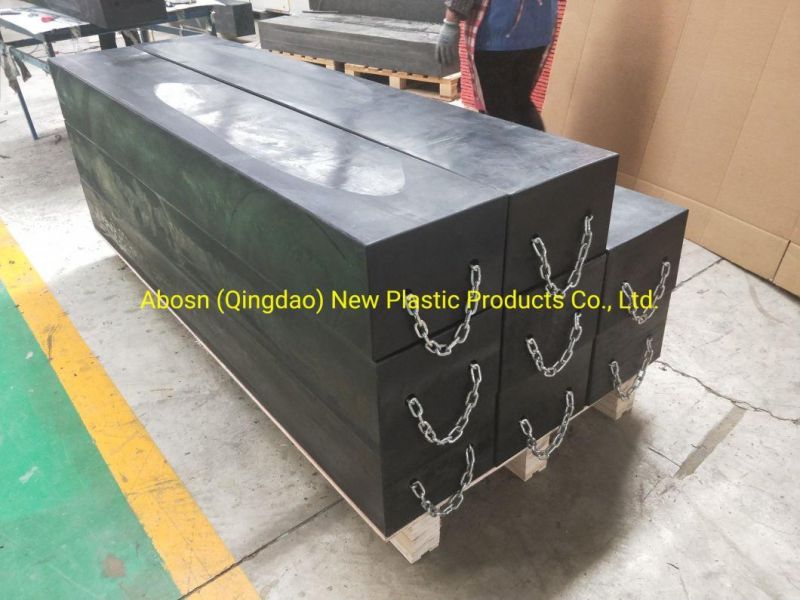

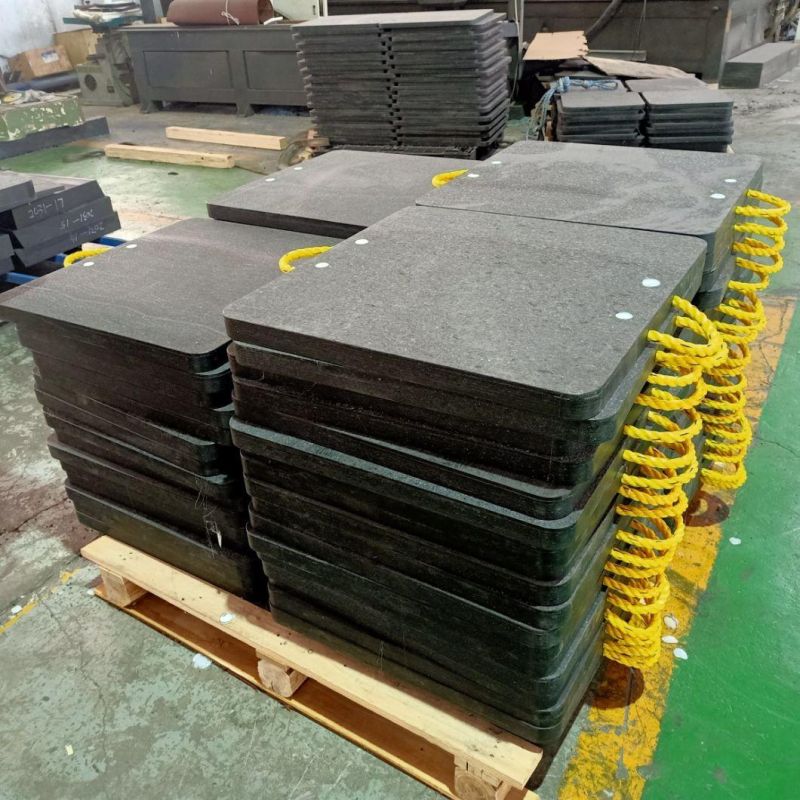

A : With nylon rope and rubber sleeve  B : With hole holder on top  C : With Steel Chain
3. Shape -Solid Stabilizer Plate Unbreakable Scaffolding Support Pads

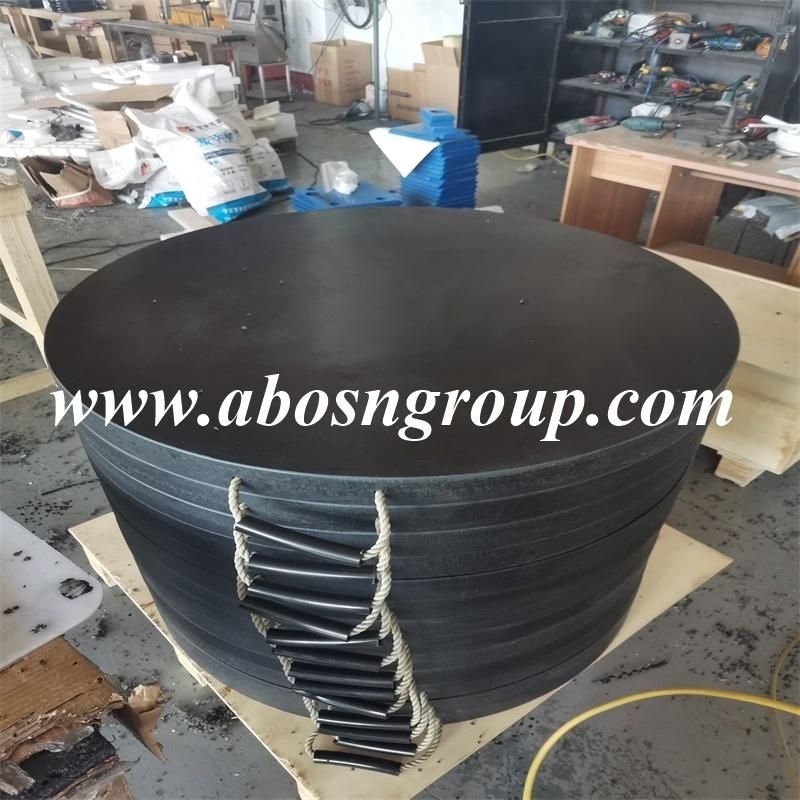

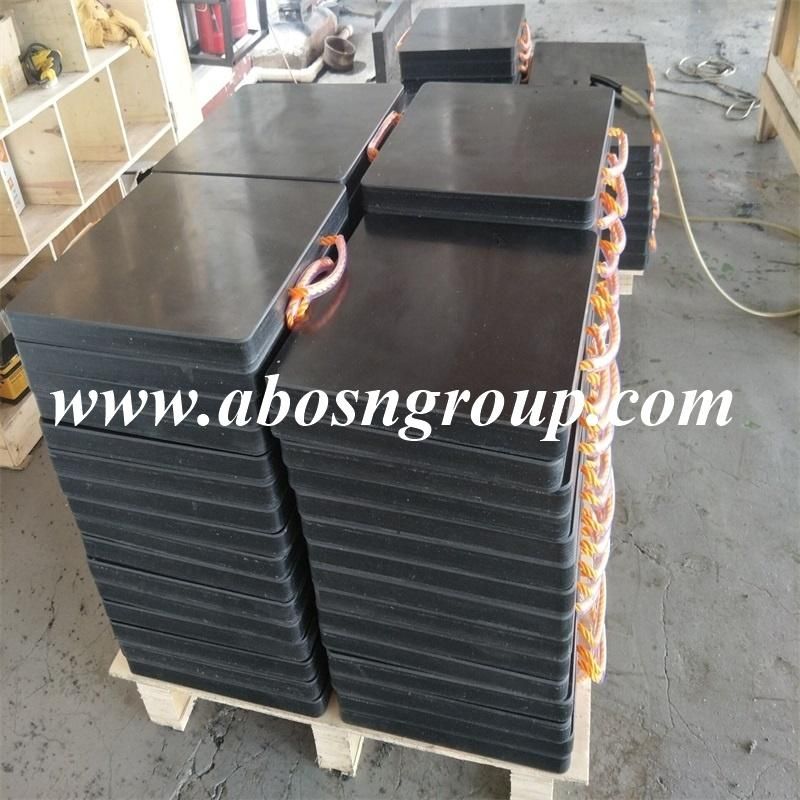

A : Square shape  B:Round shape


Advantages of Colorful Portable Light Weight Jack RV Stabilizer Crane Foot Support Outrigger Pad

--Highest abrasion resistance of any polymer, 6 times more abrasion resistant than steel
--Do not absorb moisture and will not swell up over time due to exposure outdoors.
--Good impact intensity,Do not lose their impact strength over time.
--Good breaking elongation,so they will bend but not break under extreme loads.
--Non-stick surface, easy to clean.
--Corrosion and chemical resistant.
--Noise- absorption, Vibration-absorption
--Super compression strength
--15 Percent the weight of steel pads and easier to handle
--Compressive loads up to one million pounds
--Up to 15,000 pounds per square foot
--Non-Conductive
--Non-Toxic and smell

Applications
ABOSN Colorful Portable Light Weight Jack RV Stabilizer Crane Foot Support Outrigger Pad put under the support-leg Truck Crane, Crawler Crane, Rough Crane, Boom Pump, Concrete Pump, Fire Truck, Utility Truck, Tree Trimmer, Any type of Aerial Equipment and so on, for making the machine work safely.

What Size Outrigger Pad Do You Need?

ABOSN Colorful Portable Light Weight Jack RV Stabilizer Crane Foot Support Outrigger Pad are available in three categories; Medium Duty (1.0″ thick), Heavy Duty (2.0″ thick) and Super Duty (3.0″ and 4.0″ thick) and are designed for equipment typically up to 100 tons in capacity.
As the thickness of a ABOSN Colorful Portable Light Weight Jack RV Stabilizer Crane Foot Support Outrigger Pad increases it has a greater ability to distribute higher loads over the ground.
The size and thickness of the Colorful Portable Light Weight Jack RV Stabilizer Crane Foot Support Outrigger Pad you need depends on your equipment type/specifications and the soil bearing capacity.

Colorful Portable Light Weight Jack RV Stabilizer Crane Foot Support Outrigger Pads Size & Load Capacity


Dimensions(mm) Round	Weight(kg)	Vertical Jack Capacity (tonne)	45° Load(tonnes)
400*400*40	6.14	30	18
500*500*25	6.00	27	16
500*500*50	12.00	35	22
600*600*50	17.28	35	22
800*800*60	36.86	45	25
1000*1000*100	96.00	80	40


Solid Stabilizer Plate Unbreakable Scaffolding Support PadsTechinal Data Sheet

Property:	Test Method (Standard)	Ticona GUI4152	Ticona GUI4150,4120	Unit
Molecular weight		3-5 million	3-5 million
Density	ISO 1183-1:2012/DIN53479	0.92-0.98	0.93-0.98	g/cm³
Compression strength	ISO 604:2002	≥30	≥32	Mpa
Tensile strength	ISO527-2:2012	≥20	≥22	Mpa
Elongation at break	ISO527-2:2012	≥300	≥300	%
Dynamic Friction coefficient	ASTM D 1894/GB10006-88	≤0.20	≤0.18
Dynamic Friction coefficient	ASTM D 1894/GB10006-88	≤0.20	≤0.18
Notched impact strength (Charpy)	ISO179-1:2010/GB/T 1043.1-2008	≥100	≥100	kJ/m2
Abrasion wear index	ES-X60210-2008	≤30	≤30	mg
Vicat softing point	ISO306:2004	≥80	≥80	°C
Hardness shore-D	ISO 868:2003	60-65	61-66	D


Our Services

The largest factory in China about UHMWPE blocks crane outrigger jack base pads mobile outrigger pad, 8 workshops, 12 sets CNC machines, all kinds of certification and industry standards could be met. In addition, we could provide the best after-sale service, 24 hours online for you!


Company Information

ABOSN (Qingdao) New Plastic Product Co Ltd is one of the largest Engineering Plastic products manufacture in China.All the stuff in our company are dedicated to producing satisfying products and developing new products for our customer.   We have gained many certificates from government and professional fields .We have a wide variety of products, mainly including all kinds of UHMW-PE Fender Pad ,UHMW-PE Sheet ,HDPE Sheet ,PP Sheet ,Urethane Sheet ,PVC sheet and other Engineering plastic products.

Our products are widely applied on electric fields ,wharf and port ,mining ,chemical plant and so on which bring a lot of social benefits and economic benefits .Now they are popular all over the world.   We always share the things "Quality first, Customer first ,keeping improving " to win more benefits for our customer.   In order to achieving rapid and sustainable development, we are willing to establish a wide and deep cooperation relation with enterprises both home and abroad.

FAQ
 Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? Is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment.
