• Model NO.：ZTC1000V
• Shaft Number：3
• Crane Jib：Three-Arm
• Type：Folding
• Max. Rated Total Lifting Capacity：10000kg
• Max. Load Moment of Basic Boom：4000kn.M
• Model：Ztc1000V
• Rated Power：276,1900kw,R,Min
• Max. Output Torque：1800,1000 - 1400 Nm,R,Min
• Max. Lifting Height of Basic Boom：14.0 M
• Max. Lifting Height of Main Boom：64.0 M
• Max. Lifting Height of Fly Jib：82.5 M
• Max. Traveling Speed：75 Km,H
• Transport Package：Nude Package
• Specification：15400*3000*3950mm
• Trademark：MAXIZM
• Origin：Hunan, China
• HS Code：8705109100
• Production Capacity：1000,Momth

Work
performanceMax. rated lifting capacity              kg10000Max. load moment of basic boom           kN.m4000Max. load moment of main boom (fully extended) kN.m1860Max. lifting height of basic boom        m14.0 Max. lifting height of main boom         m64.0 Max. lifting height of jib               m82.5 / (90.5)Work
speedsMax. hoist rope speed (Main winch)       m/min.110Max. hoist rope speed (Auxiliary winch)  m/min.75Boom derricking up time                  s70Boom extending time                      s13Max. slewing speed                       r/min.1.5DrivingMax. height above sea level              m2000Max. driving speed                       km/h75Max. gradeability                        %40Min. turning diameter                    m≤23Min. ground clearance                    mm300Limits for exhaust pollutants and smokeConform to related standardsFuel consumption per hundred kilometers  L70MassDeadweight in driving condition          kg58400Complete vehicle kerb mass               kg58205Load on axles 1 and 2                    kg10800/10800Load on axles 4 and 5                    kg26000(dual-axle)/10800DimensionsOverall dimensions (L × W × H)         mm15400×3000×3950Outrigger spread (L)                     m8.05Outrigger spread (W)                     m7.6 (fully extended),

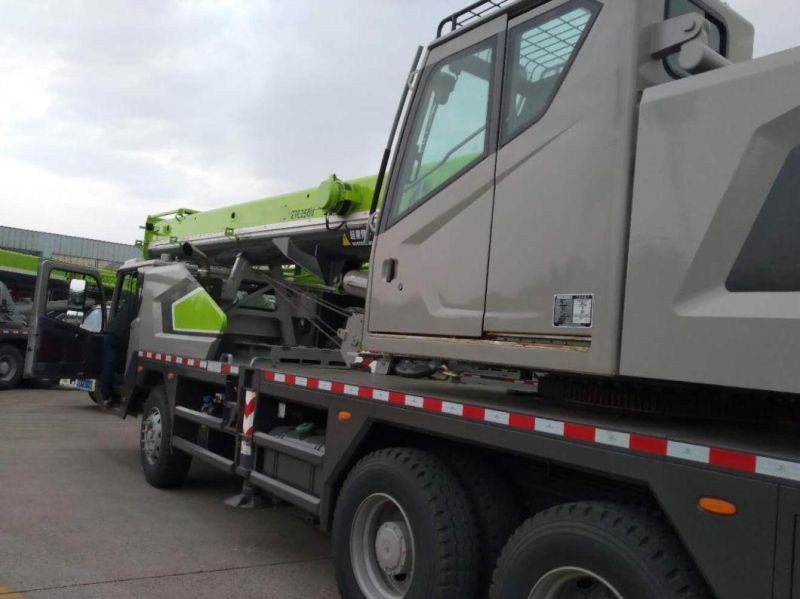

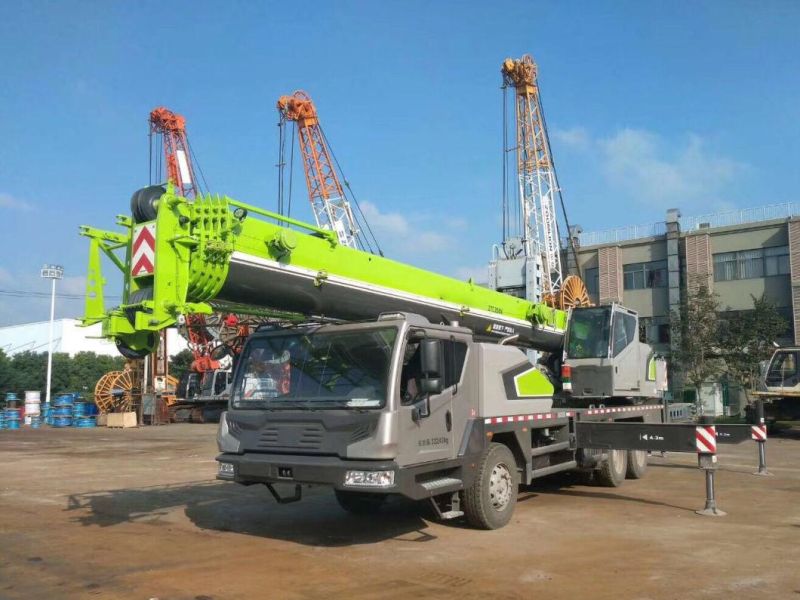

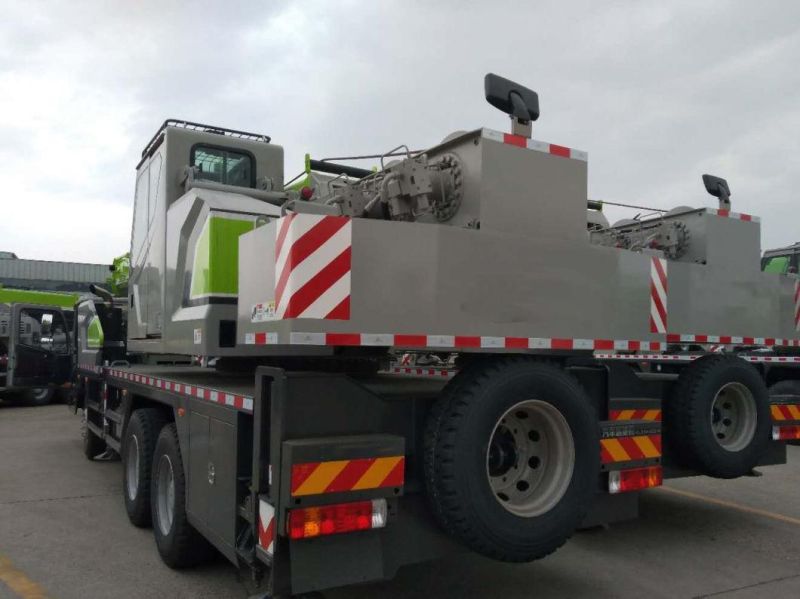

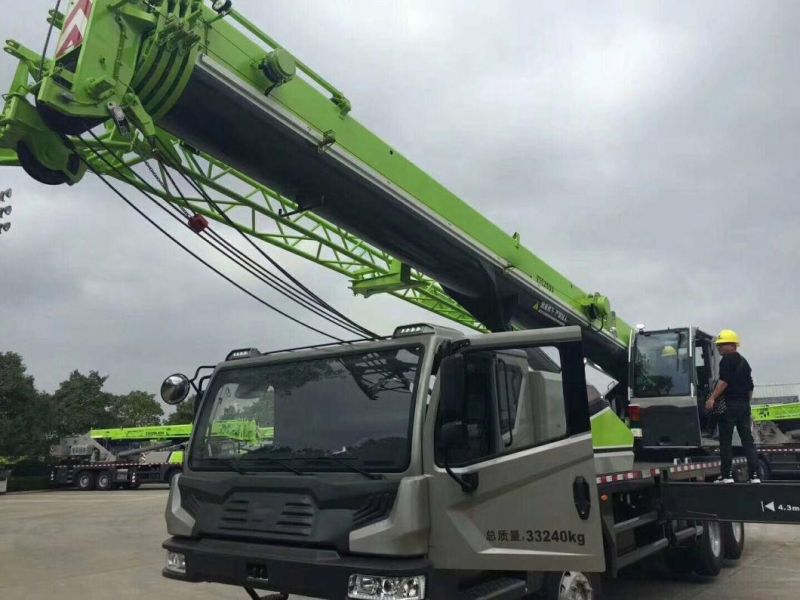

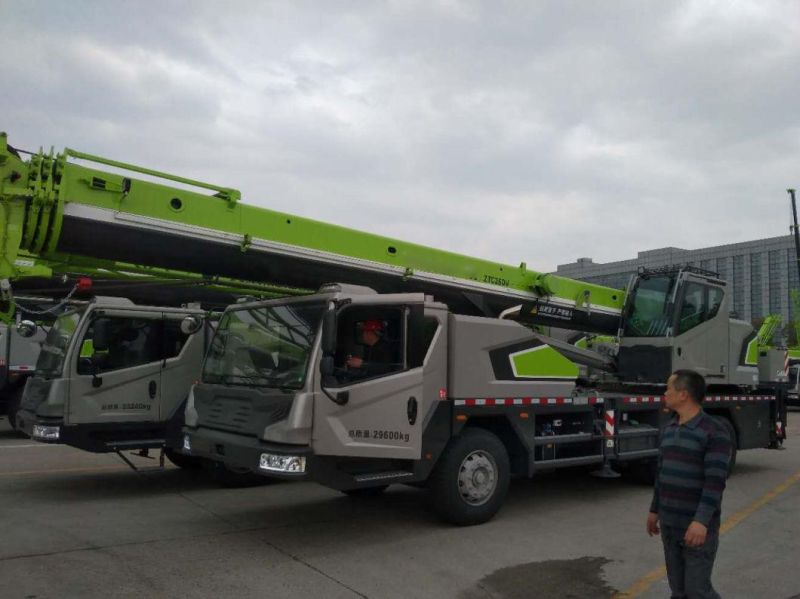

5.4 (intermediately extended)Main boom length                         m13.5~63.0Boom angle                               °-0.5~82Jib length                               m11 ,18.6Jib + extension length                   m26.6Offset                                   °0 ,30Detailed Photos
