• Model NO.：Qy50b. 5
• Type：Truck Crane
• Application：Construction Usage
• Tower Crane Type：Under Slewing Cranes
• Sling Type：Wire Rope
• Main Girder Form：Double Girder
• Power Source：Hydraulic
• Moving Type：Wheel
• Installation：Assembled
• Transport Package：Comply with Export Packaging Requirements
• Specification：ISO
• Trademark：XCMG
• Origin：Xuzhou, Jiangsu, China
• HS Code：87059091
• Production Capacity：1000,Year

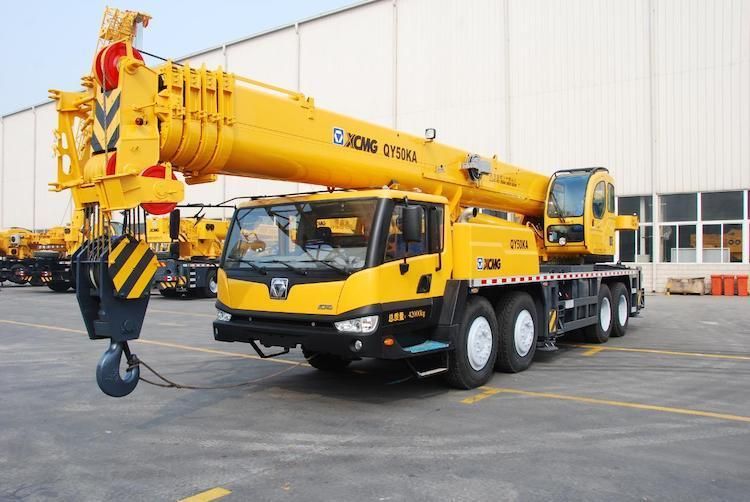

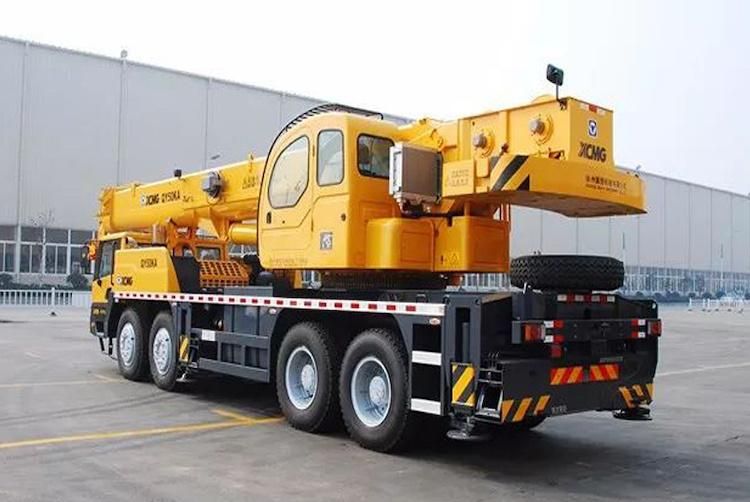

Overview Product Description

More excellent performance

• The optimizing layout of the machine makes the stress of the main bearing carriers more reasonable, and the lifting performance is higher than the products with the same tonnage.
• Apply the mature jib technique which integrates plug-in boom head, embedded boom block, and special telescoping mechanism, which makes the jib more stable and reliable.
• Optimize the stress design. Adopt the box-type outriggers which have larger span, stronger rigidity, and better stability.

More reliable quality
• Adopt the classic K series jib telescoping technique, working safer and more reliable.
• Make the most complete safety device system in the industry, ensuring the lifting safer and more reliable.
• The comprehensively upgraded brake system adopts double circuit air pressure design. Multiple systems ensure the brake safety of the truck during travel.
• The new power steering mechanism adopts hydraulic power design, which makes the steering light, flexible, and precise, and ensures the safety of the truck.
• The intensity and rigidity of the rotary table and frame structure with high rigidity are completely coordinated.
• The perfect integration of the design and structure realizes the automation of welding, which is more reliable.

Easier to operate
• The high efficient and energy efficient load sensing hydraulic system is sensitive to operate and precise to control, having good slight mobility.
• Optimize the control levers, which is easier to operate.
• The cab adopts orthodrome front windscreen, having wider operating views.

Easier to maintain
• The optimizing design of the pipeline traces makes the layout more scientific and reasonable, greatly reducing the dismantling and installing time of the pipelines and the maintenance expense.
• Completely upgrade the electrical system. Adopt anti-creep connector clips, greatly prolonging the service life of the parts.
• Adopt K series rope anti-disorder technique, improving the lifting efficiency, reducing the labor intensity, and prolonging the service life of the steel rope.
• The telescoping steel wire rope oriented and protective device avoids the steel wire rope out of the track and broken.
• Fully covered walking plate supplies a platform for the maintenance, and effectively protects the parts of the machine.
More energy-efficient and environmental friendly
• Adopt double industrial automation control engine, featuring strong power and energy efficiency.
• Under the economical mode, it can meet the engine power requirement of the normal lifting work. Under the high power mode, it can meet the requirement of the high challenge and high efficient lifting work.
• Adopt the high power radiator, avoiding the system from bad cooling, solving the problem of oil overheating, and prolonging the service life of the hydraulic oil.
• Adopt the advanced matching technique, which makes the design more scientific. It can reduce the consumption of the mechanism, prolong the service life of the machine, and has high residual value.Product Parameters

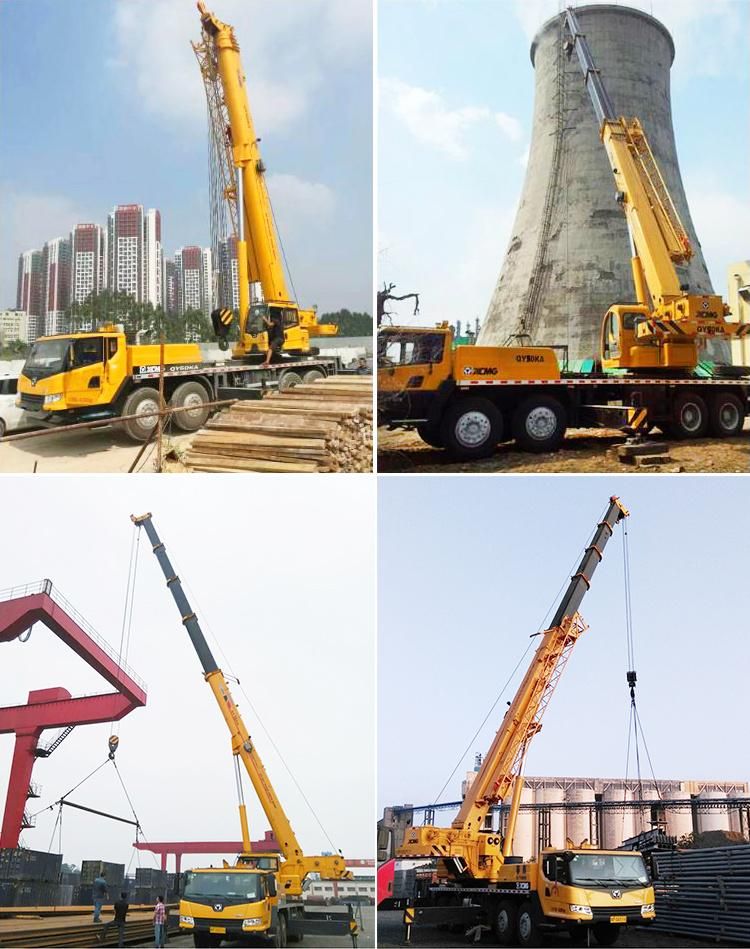

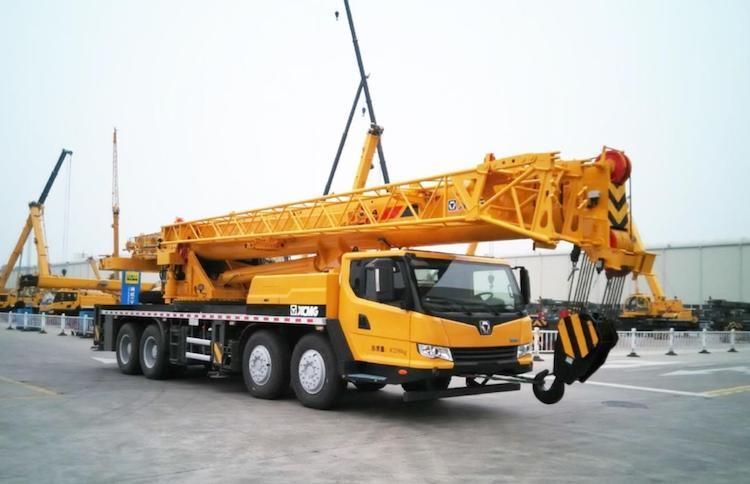

Item  UnitDimensionsTotal length13890mmTotal  width2800mmTotal  height3440mmWeightTotal weight in travel state42000KgFront axle load  18000KgRear axle load26000KgPowerEngine modelWD615.334/SC9DF340Q3 Rated  Engine power347/2200  251/2200Kw(r/min)Engine rated torque1350/1400  1430/1400N.m(r/min)TravelMax.travel speed80Km/hMax. turning diameter24mmMax. ground clearance327mmApproach angle18.Departure angle11.Max. grade ability35%Fuel consumption of 100km40LLifting  performanceMax. lifting capacity50tMin. rated working radius3mTurning radius at swing table tail3.71mmMax. lifting torque1800 Base boom lifting height11.56Kn.mFully-extended boom lifting height42.58mFull-extend boom+ luffing jib55.8mOutrigger longitudinal distance span5.93mOutrigger lateral distance span6.9mWorking speedBoom  elevating  time88sBoom  elevating  time180sMax. slewing speed2.0r/minWinch speed(single line)110m/minAuxiliary winch max. speed(single line)110m/min Product Show
