• Model NO.：OUCO-TB-4T30M
• After Service：Online Support or Engineer in Site Instruct
• Transport Package：Nude
• Trademark：OUCO
• Origin：Wuxi, Jiangsu, China
• Production Capacity：100 Sets Per Year

Basic Info.

Model NO. OUCO-TB-4T30M After Service Online Support or Engineer in Site Instruct Transport Package Nude Trademark OUCO Origin Wuxi, Jiangsu, China Production Capacity 100 Sets Per Year

Product Description

Product Description

The telescopic series of cranes offer a diverse product line for application in the Luxury Yacht, Oceanographic, Workboat, Oilfield, Coast Guard or Military industries. These cranes can also be further customized for use in these most demanding of work environments.

All of the cranes in the Telescopic Boom line offer several key features that make them powerful solutions for the marine work environment. The most notable of these features include: Extended boom reach with the dexterity for accurate, safe, and efficient material handling.

Main Features and advantages

Easy maintenance at all situation

Self contained unit with integrated hydraulic power pack
Fail-safe brakes on all movements
Fully enclosed and equipped operator cabin with air condition
The variable speed hoist will automatically adjust to the highest possible speed for the appropriate load
Base on many year's design and fabrication experience of crane and other similar equipment
Suitable for all kinds of ships and low power consumption and high efficiency

Welded and high strength box boom for easy maintenance

With Many safety protection devices---hook up limiter and overload limiter, emergency stop button

Technical ParametersGenernal Arrangement

SWL	4T@30M&10T25M
MAX WORKING RADIUS	30m
MIN WORKING RADIUS	3m
HOISTING SPEED	0~15m/min
HOISTING HEIGHT	35m
SLEWING SPEED	~0.6r/min
SLEWING ANGLE	360°
LUFFING TIME	~ 90s
WORKING CONDITION	TRIM                   ≤2° HEEL                   ≤5°
ELEC-MOTOR POWER	Y160L-4-H
POWER	90kw
Speed	1780r/min
POWER RESOURCE	AC440V/60HZ
PROTECT CLASS	IP44
INSUKATE CLASS	F
WORKING TYPE	S1

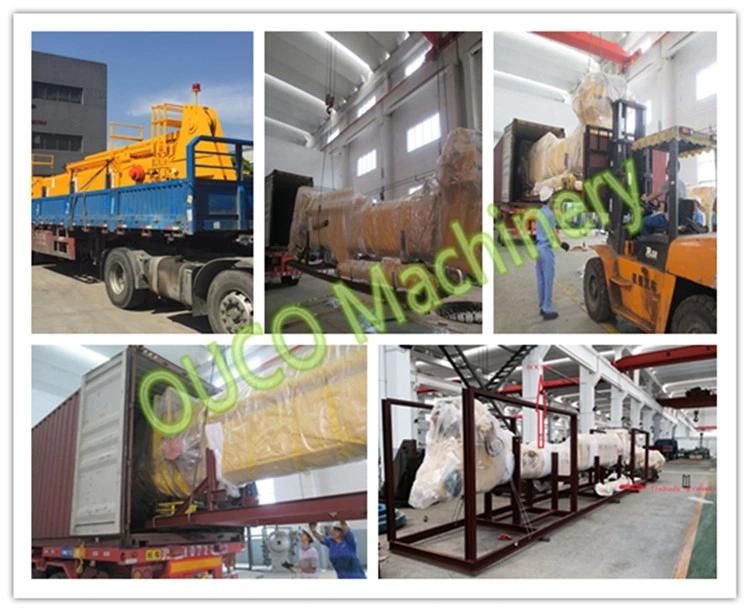

Packing & Shipping
Our company provides professional packaging and transportation for the products.

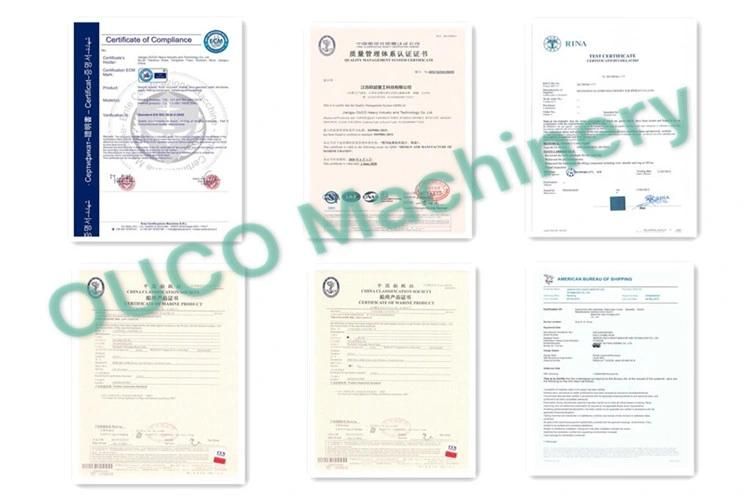

Our Certification

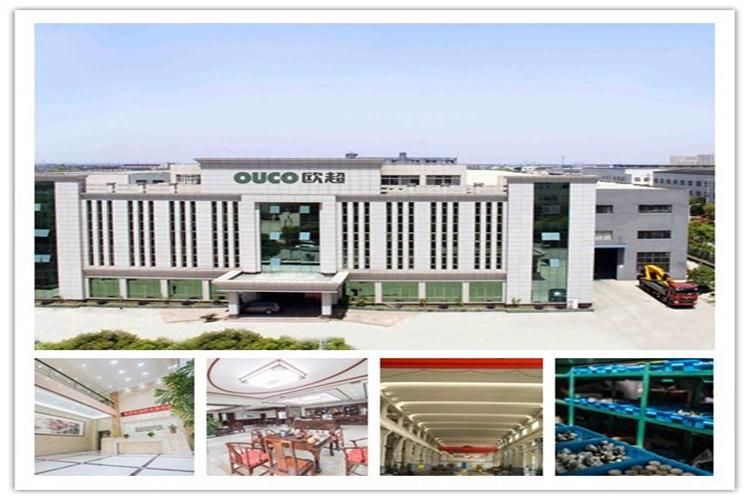

Our Company



With years of experience, the OUCO Marine Group has its own designing team and manufacturing factory, excellent European management who has 47 years of experience on offshore business, which also provides after sales services overseas.
Our production line covers marine and offshore knuckle boom crane, telescopic crane, stiff boom crane, non-standard steel structure, more environmental-friendly operations and also truck crane with the range from 15t to 150t.Port industry which includes cranes, hoppers and grabs.
OUCO Machinery can build any type of handling equipment, according to our own design, but also according to provided designs.
We build products according to any certification requested by the client and are able to build them for working in, and under extreme heavy circumstances for working tempertures of - 40C accordingly.

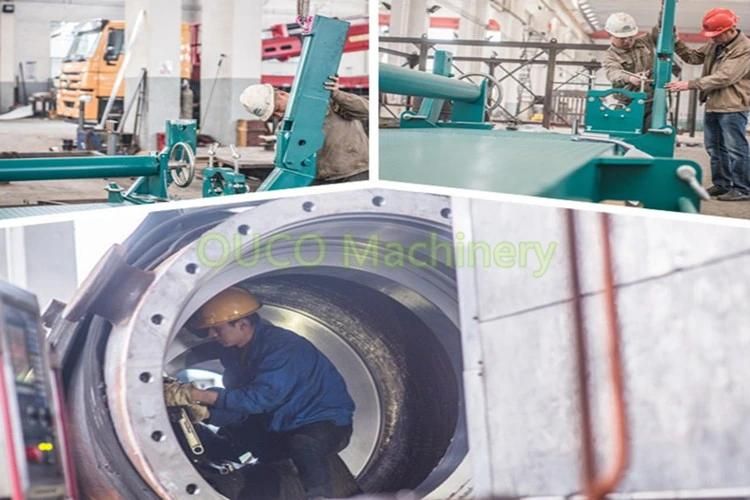

Workshop
Our company has modern production factory and experienced production workers.Modern operation technology and strict supervision system guarantee the quality of products.




Once Cooperation Be Friends Forever
Our company participates in various exhibitions every year and presents our products to partners and customers around the world.



We have our own factory and welcome friends from all over the world to visit us.Once Cooperation Be Friends Forever.




FAQ
1. Q:Can this type work in hazardous environment?
    A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.
2. Q:Can you provide the serious lifting tools?
    A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
3. Q:How can we install the crane?
    A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
4. Q:Safety device
    A:Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
